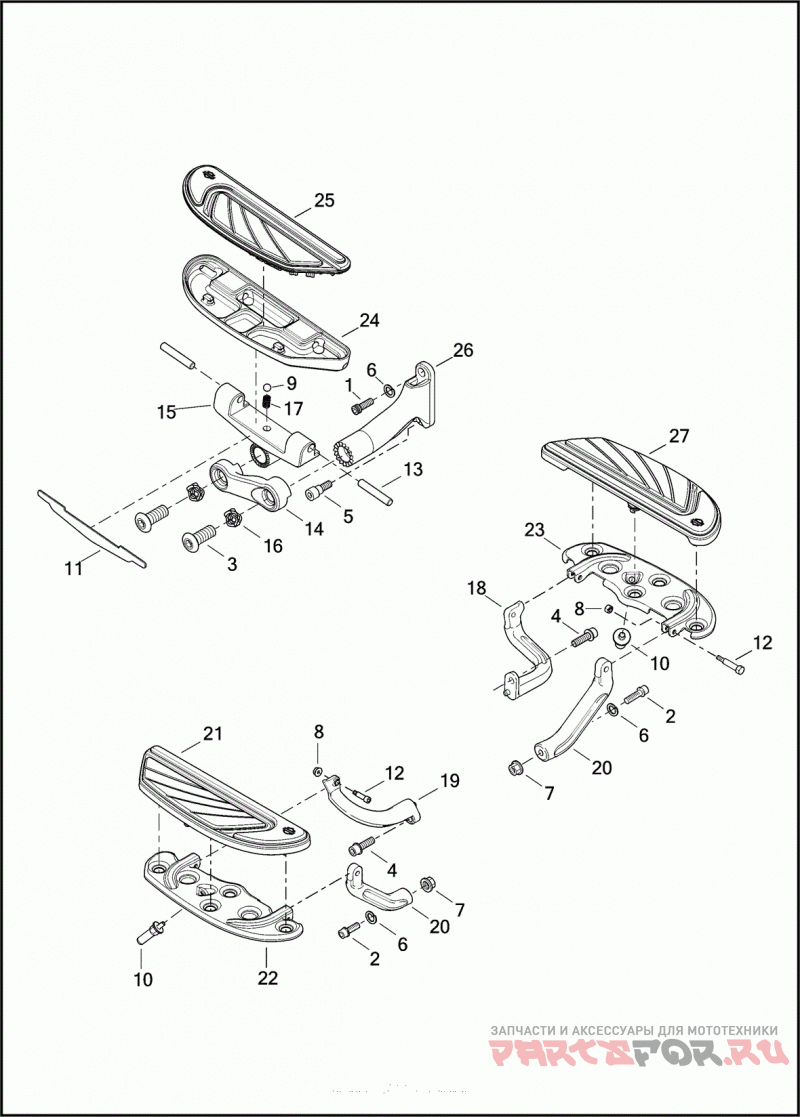

FOOTBOARDS

Harley Davidson FLTRUSE 1TAN CVO ROAD GLIDE (2015)

Harley Davidson
#oem кодцена
1
3143
SCREW 3/8-16 X 1 HEX SOCKET HD., W/LOCK PATCH
2
4032A
SCREW 3/8-16 X 2-1/2 SOCKET HD.
3
4631
Винт
4
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
5
4916
SCREW 5/16-18 X 1.0 HEX SOCKET HEAD SHOULDER
6
7038
LOCKWASHER 3/8
7
7601
LOCKNUT 3/8-16 FLANGE
8
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
9
8861
Шарик
10
33130-07A
WEAR PEG
11
44430-04
PAD RUBBER (HDI)
12
50674-05
BOLT FOOTBOARD HINGE
13
50933-86A
PIVOT PIN
14
50998-07
ARM ROTATING, RIGHT
14
51006-07
ARM ROTATING, LEFT (NOT SHOWN)
15
51007-07
SUPPORT FOOTBOARD
16
51023-07
WAVE SPRING
17
51501-07
Пружина
18
50500051
BRACKET SUPPORT FOOTBOARD, REAR LEFT
19
50500052A
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
20
50500055A
MOUNTING BRACKET FRONT FOOTBOARD
21
50500343
INSERT ASSEMBLY RIGHT, RIDER
22
50500348
BOTTOM ASSEMBLY RIGHT, W/ HINGE
23
50500349
BOTTOM ASSEMBLY LEFT, W/ HINGE
24
50500377
HOUSING RIGHT, PASSENGER
24
50500383
HOUSING LEFT, PASSENGER (NOT SHOWN)
25
50500378
FOOTBOARD INSERT PASSENGER, RIGHT
25
50500384
FOOTBOARD INSERT PASSENGER, LEFT (NOT SHOWN)
26
50500397
ARM MAIN MOUNTING ASSEMBLY
27
50500347
INSERT ASSEMBLY LEFT, RIDER
