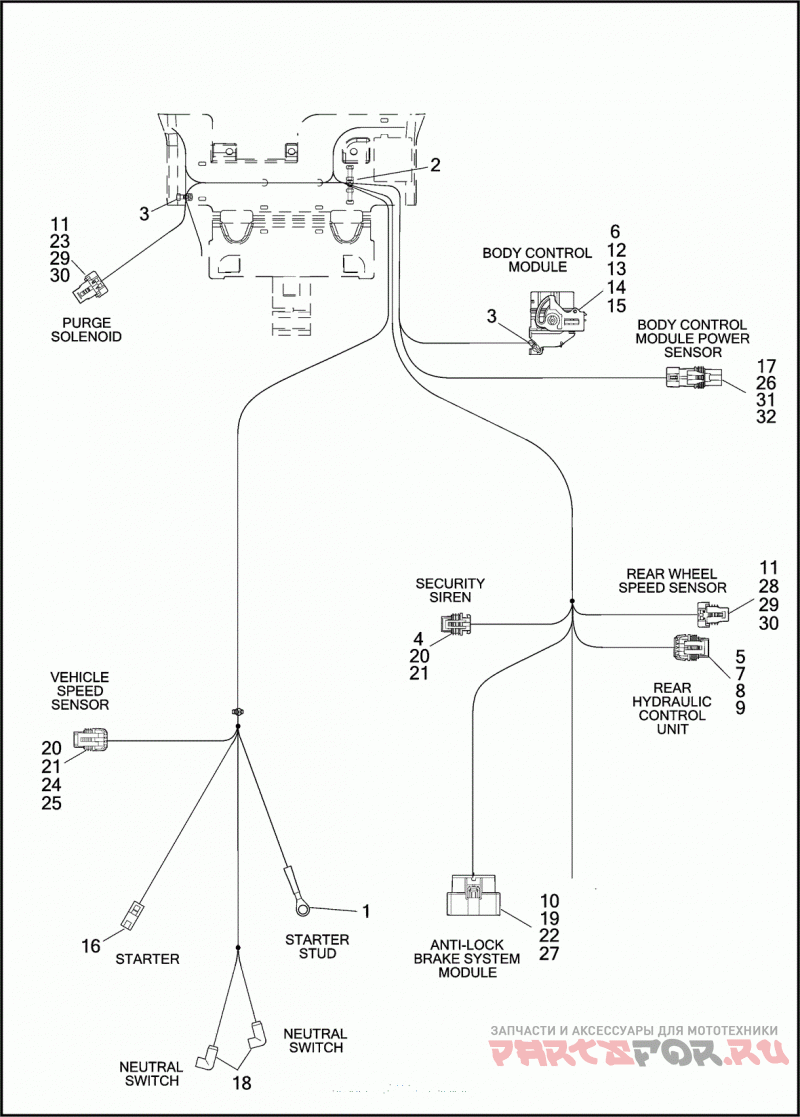

WIRING HARNESS, MAIN (4 OF 5)

Harley Davidson FLSTNSE 1TF9 CVO SOFTAIL DELUXE (2015)

Harley Davidson
#oem кодцена
69200625
MAIN WIRING HARNESS (CONTINUED)
1
9842
TERMINAL RING .31 10-12 GAUGE
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
72064-06
HOUSING 3-WAY SOCKET
5
72066-06A
HOUSING 4-WAY SOCKET (BLACK)
6
72081-11
HOUSING 48-WAY SOCKET
7
72094-06
TERMINAL SOCKET, FEMALE 18 GAUGE
8
72096-06
WIRE SEAL 18 GAUGE (YELLOW)
9
72135-06
SECONDARY LOCK 4-WAY SOCKET (GRAY)
10
72168-07
TERMINAL SOCKET, 18-20 GAUGE
11
72213-94
TERMINAL SOCKET, 16-20 GAUGE
12
72222-11
TERMINAL SOCKET, 18-20 GAUGE
13
72226-11
TERMINAL SOCKET, 14-16 GAUGE
14
72227-11
TERMINAL SOCKET, 18-20 GAUGE
15
72256-11
SEAL PIN .6MM PLUG
16
72295-94
HOUSING STARTER CONNECTION
17
72350-11
HOUSING ONE-WAY
18
72405-98BK
CONNECTOR PUSH ON 90 DEGREE
19
72473-07
SEAL PIN
20
72484-08
TERMINAL SOCKET, 20 GAUGE
21
72486-08
WIRE SEAL 20 GAUGE (GREEN)
22
72500-07ABK
HOUSING 20-WAY SOCKET (BLACK)
23
72518-01
HOUSING SOCKET, 2-WAY (RED)
24
72543-07BK
HOUSING 3-WAY SOCKET (BLACK)
25
72544-07
SECONDARY LOCK 3-WAY FEMALE
26
72575-11
SECONDARY LOCK
27
72593-11
TERMINAL SOCKET, 14-16 GAUGE (GOLD)
28
72606-08
HOUSING 2-WAY SOCKET
29
72609-08
SECONDARY LOCK 2-WAY SOCKET (BLACK)
30
72610-08
SEAL CABLE, 18-20 GAUGE (WHITE)
31
73304-04
TERMINAL .31 SOCKET, 10 GAUGE
32
73305-04
SEAL WIRE 10 GAUGE (BLUE)
