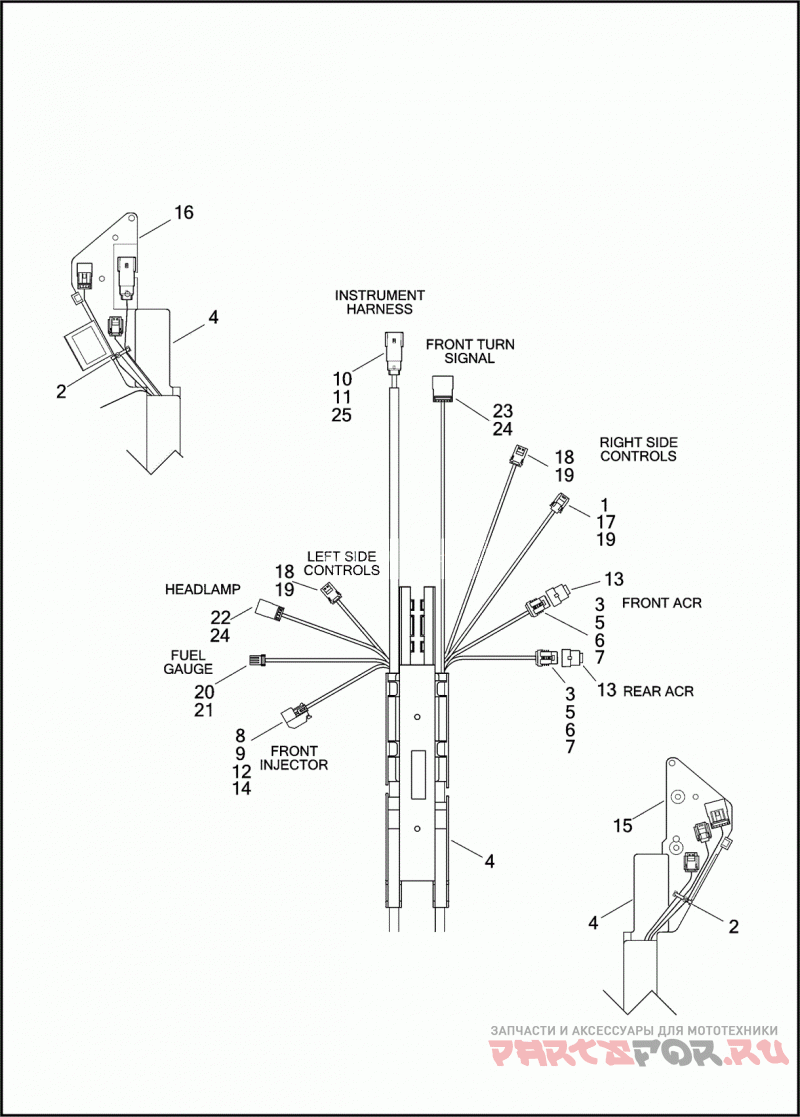

WIRING HARNESS, MAIN, NON-ABS - FLS

Harley Davidson FLS 103 1JRV SOFTAIL SLIM (2015)

Harley Davidson
#oem кодцена
69200318
WIRING HARNESS, MAIN
1
5118
SEAL PIN
2
10065
CABLE STRAP
3
10177
CABLE STRAP
4
71044-11
WIRE TROUGH
5
72007-05
HOUSING 2-WAY SOCKET
6
72010-05
WIRE SEAL #22-26 GAUGE (GREEN)
7
72024-08
TERMINAL SOCKET, #20-22 GAUGE
8
72098-06
HOUSING 2-WAY SOCKET
9
72145-06
SECONDARY LOCK 2-WAY SOCKET (BLUE)
10
72169-07
TERMINAL PIN, #16-20 GAUGE
11
72478-07BK
HOUSING 8-WAY PIN (BLACK)
12
72499-07
WIRE SEAL #20-22 GAUGE (GREEN)
13
72533-06
DUST CAP 2-PIN
14
72569-08
TERMINAL SOCKET, #20-22 GAUGE
15
72596-11
BRACKET ELECTRICAL CONNECTOR, RH
16
72597-11
BRACKET ELECTRICAL CONNECTOR, LH
17
72905-11
HOUSING 2-WAY PIN
18
72907-11
HOUSING 4-WAY PIN
19
72909-11
TERMINAL PIN, #20-21 GAUGE
20
72914-01BK
HOUSING 4-WAY SOCKET (BLACK)
21
72991-01
TERMINAL SOCKET, #18-22 GAUGE
22
73104-96BK
HOUSING 4-PIN
23
73106-96BK
HOUSING 6-PIN
24
73190-96
TERMINAL PIN, #16-20 GAUGE
25
73213-07
RETAINER X-MAS TREE CLIP
