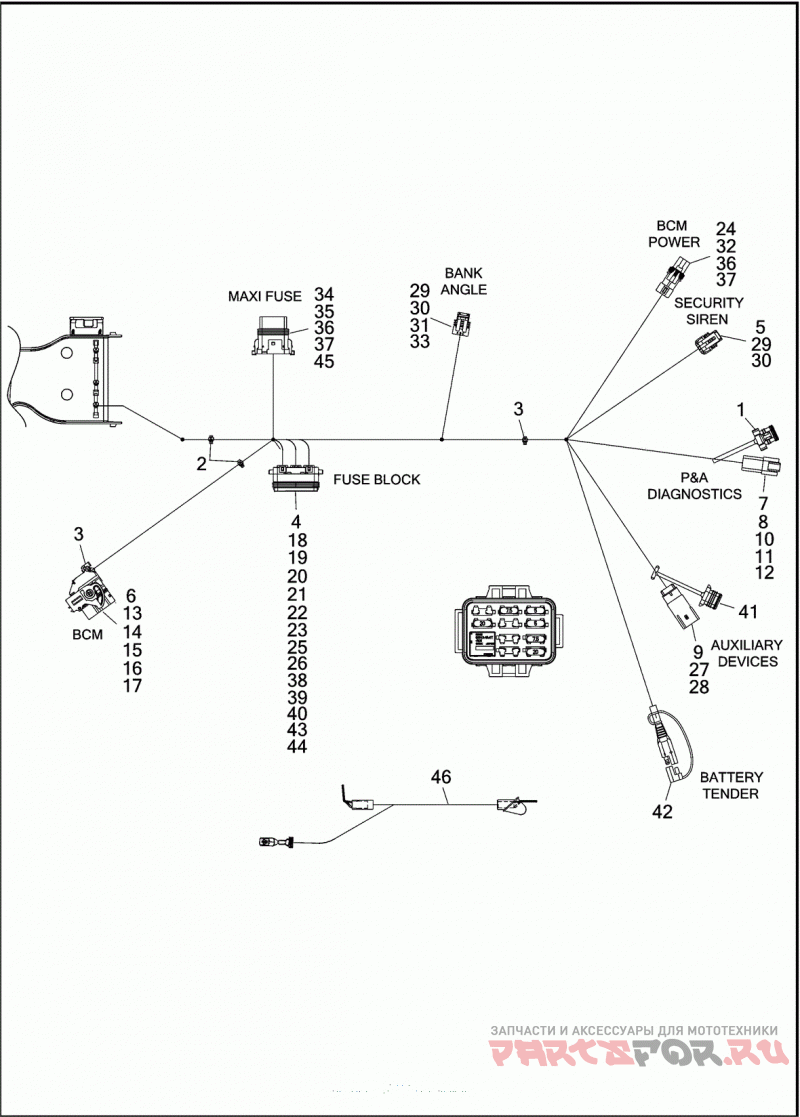

WIRING HARNESS, MAIN - FLRT (8 OF 8)

Harley Davidson FLRT 1MCM FREEWHEELER (2015)

Harley Davidson
#oem кодцена
69200699
MAIN WIRING HARNESS
1
6990
PLUG 6-WAY PIN, WEATHER
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
31586-07
RELAY
5
72064-06
HOUSING 3-WAY SOCKET, FEMALE
6
72081-11
HOUSING 48-WAY SOCKET
7
72106-94BK
HOUSING 6-PIN (BLACK) (REPLACES GRAY CONNECTOR)
8
72146-94
SECONDARY LOCK 6-WAY PIN
9
72169-07
TERMINAL PIN, 16-20 AWG
10
72190-94
TERMINAL PIN, 16-18 AWG
11
72194-94
TERMINAL PIN, 20 AWG
12
72195-94
SEAL PIN
13
72209-11
COVER WIRE DRESS
14
72222-11
TERMINAL SOCKET, 18-20 AWG
15
72226-11
TERMINAL SOCKET, 14-16 AWG
16
72227-11
TERMINAL SOCKET, 18-20 AWG
17
72256-11
SEAL PIN
18
72296-95
TERMINAL FEMALE, SEALED
19
72298-95
PLUG CAVITY
20
72299-95
PLUG CAVITY
21
72308-97
TERMINAL FEMALE, 12-14 AWG
22
72331-95
FUSE 5-AMP, MINI (TAN)
23
72345-02
FUSE 20-AMP, MINI (YELLOW)
24
72350-11
HOUSING 1-WAY SOCKET
25
72356-95
TERMINAL SOCKET, 18-20 AWG
26
72412-97
SEAL CABLE, 12-14 AWG
27
72447-07GY
HOUSING 8-WAY PIN (GRAY)
28
72473-07
SEAL PIN
29
72484-08
TERMINAL SOCKET, 20 AWG
30
72486-08
WIRE SEAL 20 AWG (GREEN)
31
72544-07
SECONDARY LOCK 3-WAY SOCKET, FEMALE
32
72575-11
SECONDARY LOCK
33
72589-09
HOUSING 3-WAY SOCKET, FEMALE
34
73301-04
HOUSING 2-WAY PIN
35
73303-04
SECONDARY LOCK 2-WAY SOCKET, FEMALE
36
73304-04
TERMINAL FEMALE, 10 AWG
37
73305-04
SEAL WIRE 10 AWG (BLUE)
38
69200194
HOUSING 24-WAY FUSE BLOCK
39
69200195
COVER FUSE BLOCK
40
69200199
COVER FUSE BLOCK
41
69200204
WEATHER PLUG 8-WAY PIN
42
69200212
HOUSING 2-WAY
43
69200293
FUSE 7.5-AMP, MINI (BROWN)
44
69200312
SECONDARY LOCK 24-WAY FUSE BLOCK
45
69200336
MAIN FUSE 50 AMP (RED), NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS
46
69200406
WIRE HARNESS POSITIVE CABLE
47
11100115
CLOTH, HARNESS WRAP (NOT SHOWN)
