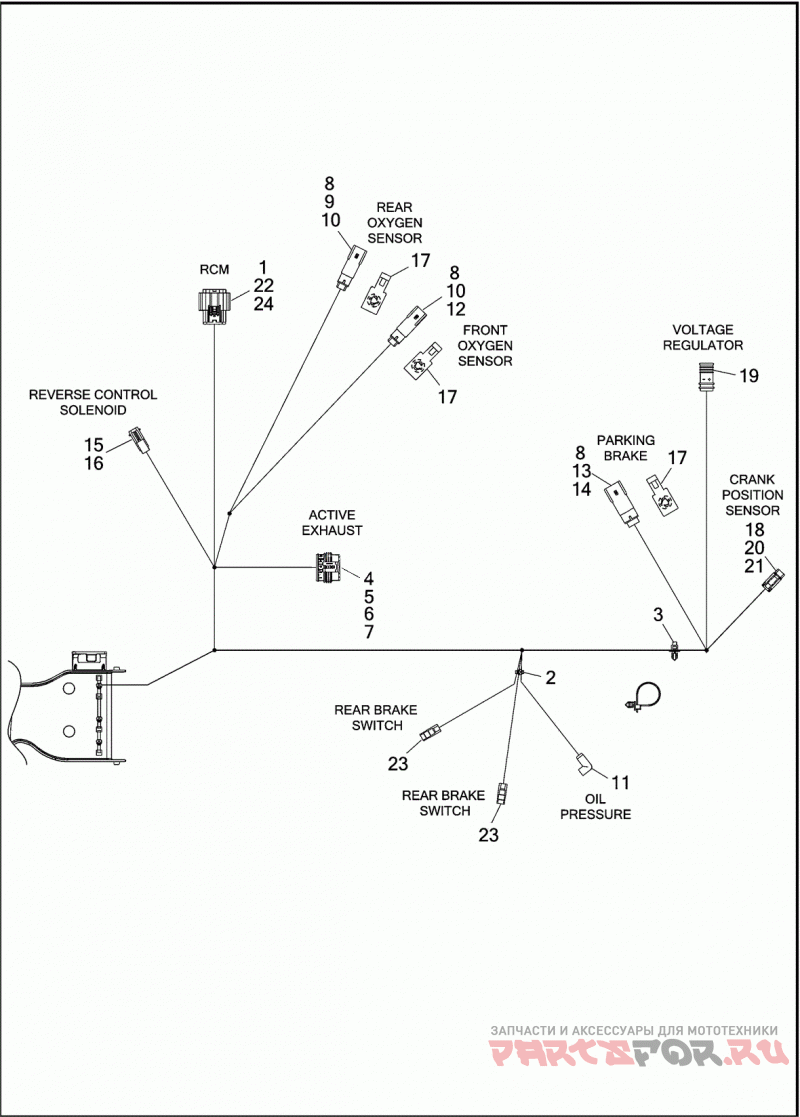

WIRING HARNESS, MAIN - FLRT (7 OF 8)

Harley Davidson FLRT 1MCM FREEWHEELER (2015)

Harley Davidson
#oem кодцена
69200699
MAIN WIRING HARNESS
1
8339
SEAL PIN
2
10065
CABLE STRAP
3
10177
CABLE STRAP TREE MOUNT
4
72010-05
WIRE SEAL 22-26 AWG (GREEN)
5
72012-07
HOUSING 5-WAY SOCKET
6
72014-07
SEAL PIN
7
72024-08
TERMINAL SOCKET, 20-22 AWG
8
72169-07
TERMINAL PIN, 16-20 AWG
9
72175-07BK
HOUSING 4-WAY PIN (BLACK)
10
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
11
72405-98BK
WIRE ASSEMBLY PUSH-ON, RIGHT ANGLE MOLDED, 65-1/2 IN. LENGTH
12
72415-07GY
HOUSING 4-WAY PIN (GRAY)
13
72473-07
SEAL PIN
14
72511-07BK
HOUSING 3-WAY PIN (BLACK)
15
73102-96BK
HOUSING 2-WAY PIN
16
73190-96
TERMINAL PIN, 16-20 AWG
17
73213-07
RETAINER X-MAS TREE CLIP
18
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
19
74120-08
DC LEAD ASSEMBLY
20
74152-98
SECONDARY LOCK 2-WAY SOCKET
21
74191-98
TERMINAL SOCKET
22
83944-09
TERMINAL SOCKET, 18-20 AWG
23
69200238
TERMINAL 20 AWG (BLACK)
24
69200461
HOUSING 8-WAY SOCKET
