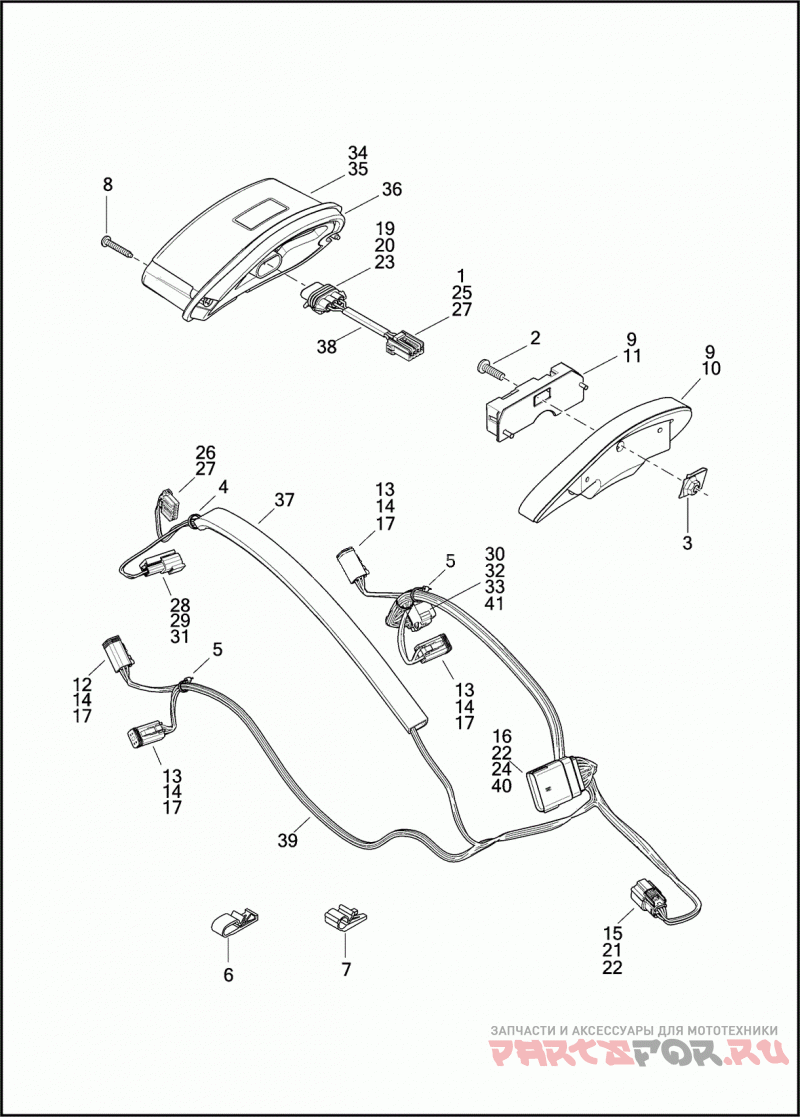

TAIL LAMP (CANADA)

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2015)

Harley Davidson
#oem кодцена
1
5118
SEAL PIN
2
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
3
7964
J-NUT
4
10006
CABLE STRAP
5
10065
CABLE STRAP
6
10183
CLIP T-STUD
7
10184
CLIP T-STUD
8
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A
10
68296-99A
TAIL LAMP BASE (CHROME)
11
68830-99A
CIRCUIT BOARD & COVER
12
72114-94BK
HOUSING SOCKET, 4-WAY (BLACK)
13
72114-94BK
HOUSING SOCKET, 4-WAY (BLACK)
14
72154-94
SECONDARY LOCK 4-WAY SOCKET
15
72168-07
TERMINAL SOCKET 18-20 AWG
16
72169-07
TERMINAL PIN 16-20 AWG
17
72191-94
TERMINAL SOCKET
18
72199-94
ANCHOR T-STUD
19
72213-94
TERMINAL SOCKET, 16-20 AWG
20
72230-98
HOUSING 3-WAY SOCKET, SEALED
21
72414-07BK
HOUSING 6-WAY SOCKET (BLACK)
22
72473-07
SEAL PIN
23
72610-08
SEAL 18-20 AWG (WHITE)
24
73213-07
RETAINER X-MAS TREE
25
73154-96BK
HOUSING 4-WAY SOCKET
26
73156-96BK
SOCKET HOUSING 6-PLACE
27
73191-96
SOCKET TERMINAL #16-20 AWG
28
74102-98BK
HOUSING 2-WAY PIN (BLACK)
29
74142-98
SECONDARY LOCK 2-WAY PIN
30
74159-98
SECONDARY LOCK 12-WAY SOCKET
31
74190-98
TERMINAL PIN 16-20 AWG
32
74191-98
TERMINAL SOCKET
33
74195-98
SEAL PIN
34
67800317
LAMP ASSEMBLY W/ 68026-99, 67800424, 69200599
35
67800424
Линза
36
67800428
Прокладка
37
69200018
CONDUIT SELF-ADHESIVE, 50FT.
38
69200599
JUMPER HARNESS
39
69201096
HARNESS REAR LIGHTING
40
69200984
HOUSING 20-WAY PIN (BLACK)
41
69201034
CONNECTOR 12-WAY
