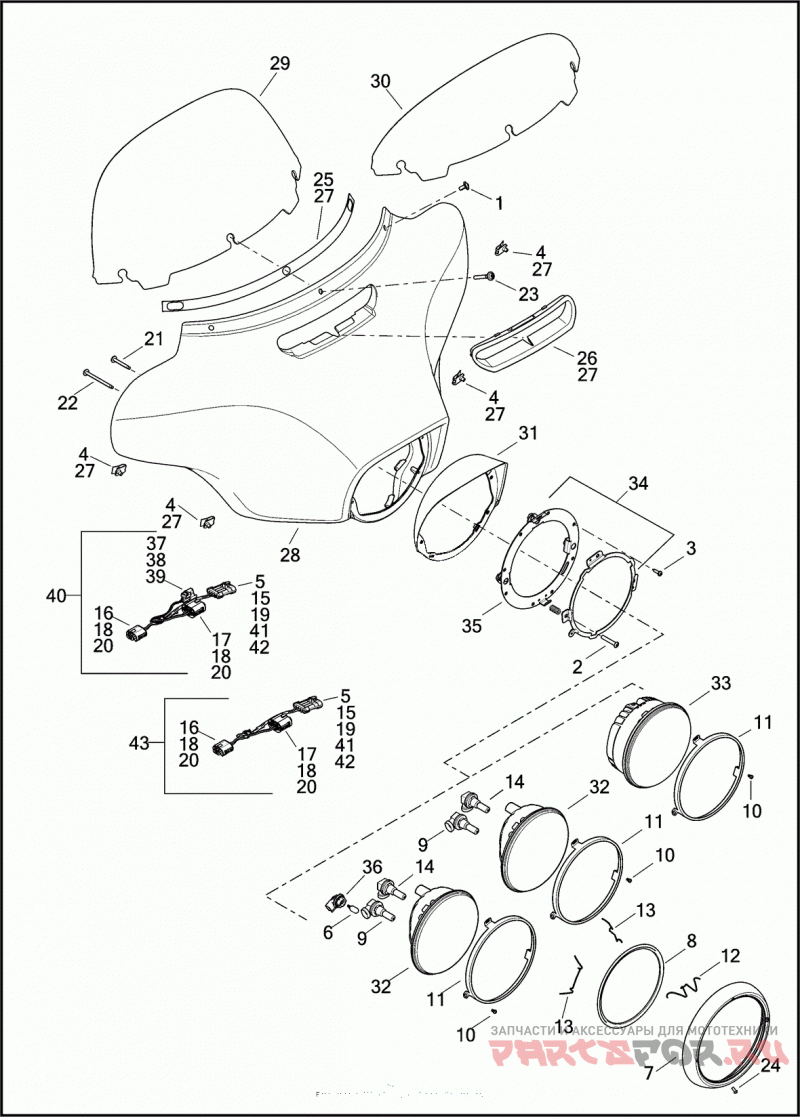

WINDSHIELD, FAIRING & HEADLAMP - FLHTCU/L, FLHTK/L, FLHX & FLHXS

Harley Davidson FLHX 1KBM STREET GLIDE (2015)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
7900
CLIP NUT 1/4-20
5
10147
CLIP CONNECTOR
6
53436-97
BULB POSITION LAMP (HDI)
7
67712-83B
TRIM RING HEADLAMP
8
67716-60C
GASKET HEADLAMP DOOR
9
67717-01
BULB HIGH BEAM HALOGEN
10
67721-48
SCREW HEADLAMP RETAINER RING
11
67726-08
RETAINING RING HEADLAMP
12
67778-60A
SPRING TRIM RING, HEADLAMP, TOP
13
67780-60A
SPRING TRIM RING, HEADLAMP, BOTTOM
14
68881-01
BULB LOW BEAM HALOGEN
15
72214-94
SEAL CABLE
16
72449-01
HOUSING 2-WAY SOCKET (BLACK)
17
72450-01
HOUSING 2-WAY SOCKET (GRAY)
18
72527-01
TERMINAL SOCKET, 18-20 AWG
19
72608-08
TERMINAL PIN 16-20 AWG
20
72633-02
WIRE SEAL 14-16 AWG (WHITE)
21
10200059
SCREW 1/4-20 X 1-11/16 TORX SOCKET BUTTON HD. MATPOINT (GRADE 5) (BLACK)
22
10200060
SCREW 1/4-20 X 2-5/8 TORX SOCKET BUTTON HD. MATPOINT (GRADE 5) (BLACK)
23
10200112
SCREW 1/4-20 X 2 TORX BUTTON HD. SEMS (GRADE 5) (BLACK)
24
10200156
SCREW NO. 8-32 X 3/8 PHILLIPS ROUND HD. (STAINLESS STEEL)
25
11100055
TAPE WINDSHIELD MOUNTING
26
29200007
BEZEL AIR DUCT, OUTER FAIRING
27
57000377
KIT, HARDWARE FAIRING, W/ 7900, 11100055 & 29200007
28
57000383
FAIRING OUTER, W/ 57000377 (UNFINISHED)
30
57400003
WIND DEFLECTOR (SMOKED) (DOMESTIC)
31
61400135
TRIM HEADLAMP
32
67700062
HEADLAMP DUAL HALOGEN, W/ 67717-01 & 68881-01 (DOMESTIC)
32
67700065
HEADLAMP DUAL HALOGEN, W/ 53436-97, 67717-01, 68881-01 & 68000038 (HDI)
34
67700204
MOUNTING RING ASSEMBLY HEADLAMP, W/ 3088 & 67700205
35
67700205
MOUNTING RING HEADLAMP
