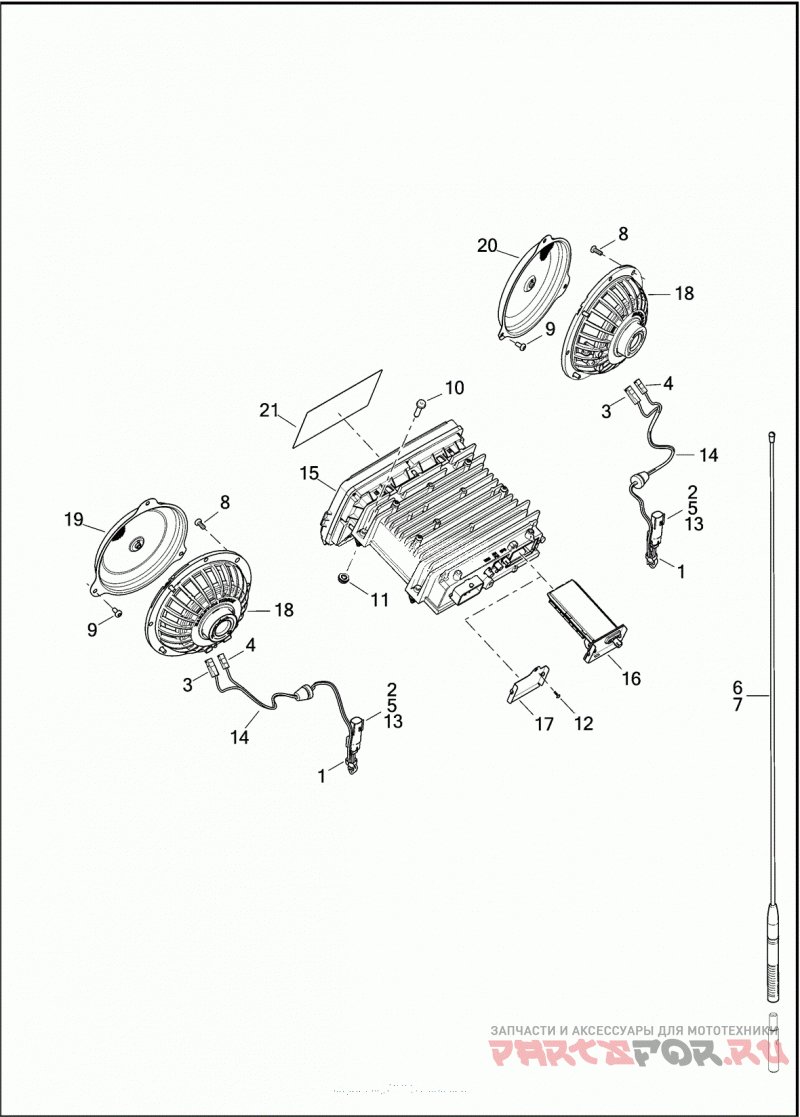

SOUND SYSTEM

Harley Davidson FLHTKSE 1TEN CVO LIMITED (2015)

Harley Davidson
#oem кодцена
1
10065
CABLE STRAP
2
72169-07
TERMINAL PIN 16-20 AWG
3
72290-94
TERMINAL FEMALE 1/4 IN. (BLACK)
4
72294-94
TERMINAL FEMALE 16-20 GAUGE (WHITE)
5
73213-07
RETAINER XMAS TREE CLIP
6
76250-09
ANTENNA CB
7
76503-08
ANTENNA AM/FM
8
10200205
SCREW NO. 10 X 1/2 PAN HD. TORX, HARDENED (ZINC)
9
10500017
SCREW NO. 10 X 3/8 PAN HD., TORX, PLASTITE, HARDENED (ZINC)
10
12600070
Болт
11
12600071
RETAINER BOLT
12
12600073
SCREW ACCESSORY MODULE
13
69200272
HOUSING PIN, 2-WAY
14
69200247
WIRE HARNESS SPEAKER JUMPER, W/ 1, 2, 3, 4, 5 & 13
15
76000228B
RADIO PREMIUM, WITH NAVIGATION, WITH 12600070, 12600071, 12600073 AND 76000233 (DOMESTIC) (SEE NOTE 1)
15
76000229B
RADIO PREMIUM, WITH NAVIGATION, WITH 12600070, 12600071, 12600073 AND 76000252 (HDI, ENGLAND) (SEE NOTE 2)
15
76000232A
RADIO PREMIUM, WITH 12600070, 12600071, 12600073 AND 76000252 (CANADA, HDI, AUSTRALIA, JAPAN, ASIA-PACIFIC) (SEE NOTE 3)
16
76000233
MODULE XM SATELLITE RADIO
17
76000252
PLATE ACCESSORY MODULE
18
76000320
WOOFER ASSEMBLY 6-1/2 IN.
19
76000321
WOOFER GRILLE RIGHT
20
76000322
WOOFER GRILLE LEFT
21
91700034
KIT, RADIO TOUCH SCREEN PROTECTOR
