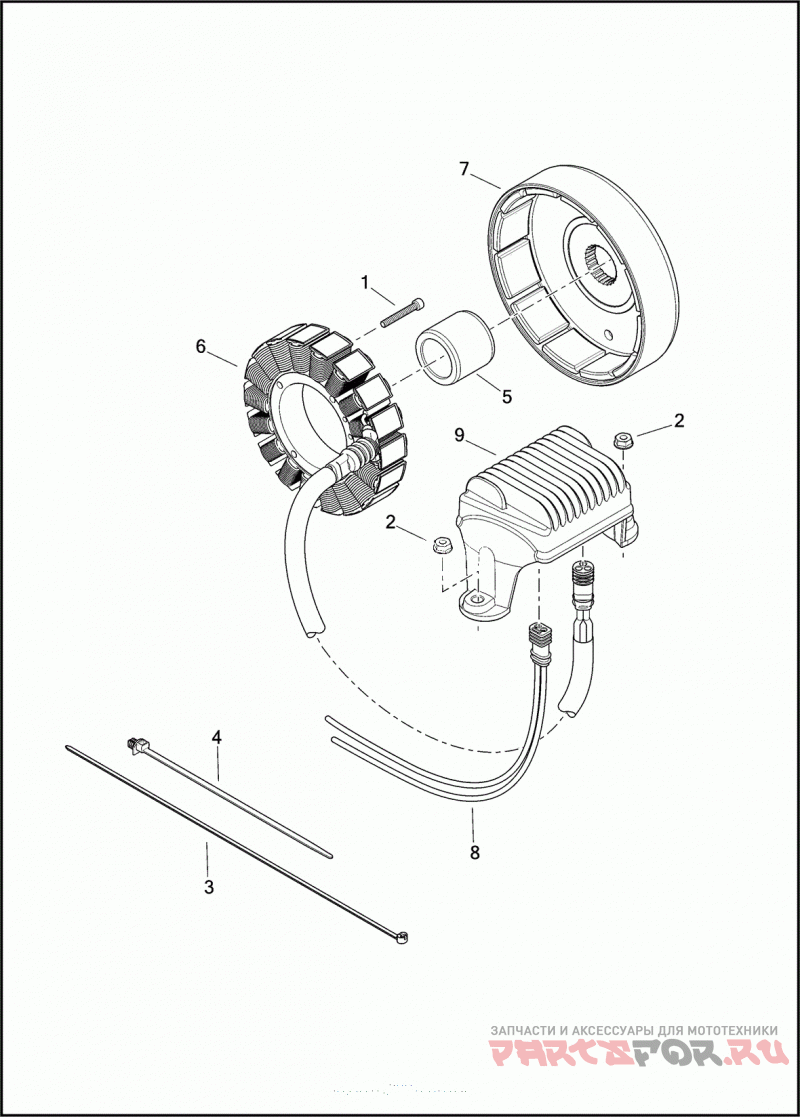

ALTERNATOR & REGULATOR
Harley Davidson FLHTCUL TC 1KFL ULTRA CLASSIC LOW TWIN-COOLED (2015)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3050 SCREW NO. 10-24 X 1-3/8 TORX HD. | SCREW NO. 10-24 X 1-3/8 TORX HD. | |
2 | 7716 LOCKNUT 1/4-20 X 7/16 FLANGE | LOCKNUT 1/4-20 X 7/16 FLANGE | |
3 | 10039 CABLE STRAP | CABLE STRAP | |
4 | 10177 CABLE STRAP TREE MOUNT | CABLE STRAP TREE MOUNT | |
5 | 24009-06 SPACER ROTOR SHELL | SPACER ROTOR SHELL | |
6 | 29987-06D STATOR ASSEMBLY 3-PHASE, 50 AMP | STATOR ASSEMBLY 3-PHASE, 50 AMP | |
7 | 30041-08A ROTOR ASSEMBLY | ROTOR ASSEMBLY | |
8 | 74120-08 DC LEAD ASSEMBLY VOLTAGE REGULATOR (FROM MAIN WIRING HARNESS) | DC LEAD ASSEMBLY VOLTAGE REGULATOR (FROM MAIN WIRING HARNESS) | |
9 | 74505-09A VOLTAGE REGULATOR ASSEMBLY | VOLTAGE REGULATOR ASSEMBLY |
