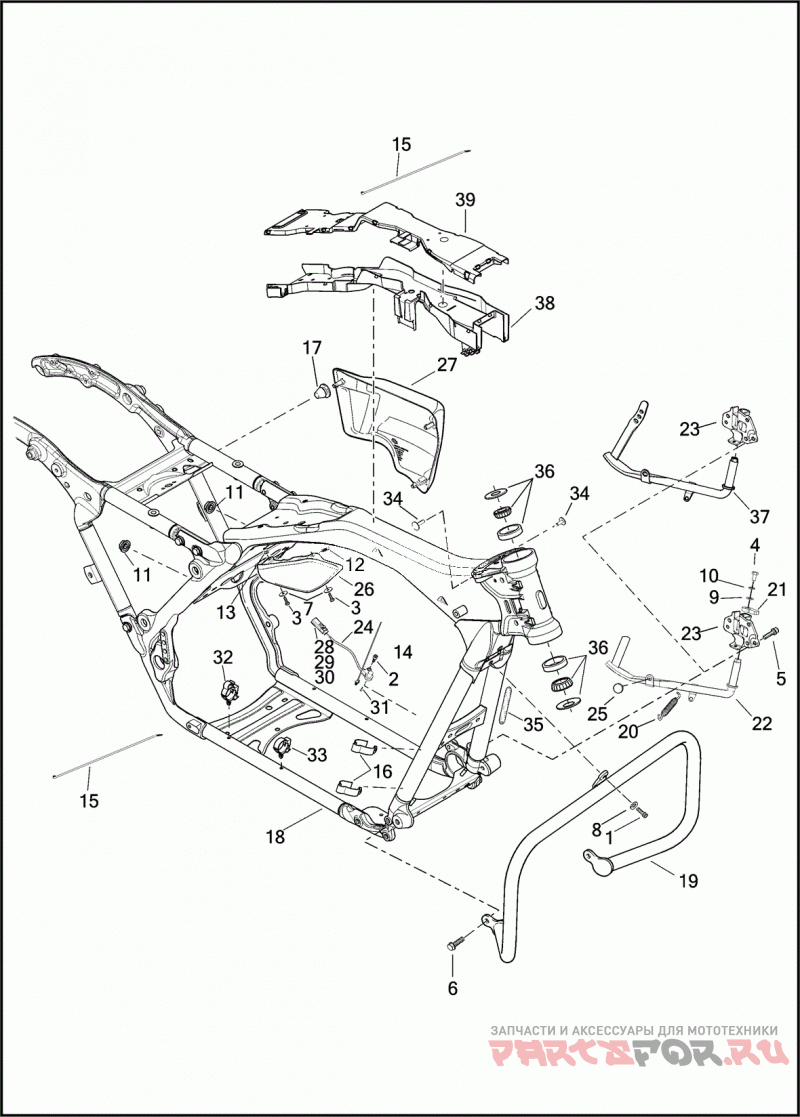

FRAME & JIFFY STAND

Harley Davidson FLHTCU TC 1KSL ULTRA CLASSIC TWIN-COOLED (2015)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
6
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
7
6036
WASHER 17/64 X 1 X 1/16
8
6116
WASHER 5/16 X 16/16 X 1/8
9
6702
WASHER 5/16 X 11/16 X 1/16
10
7041
LOCKWASHER 5/16
11
7495
NUT M6 FLANGE
12
8108
SPEEDNUT 1/4-20
13
8194
NUT SPECIAL
14
10177
CABLE STRAP TREE MOUNT, JIFFY STAND (ENGLAND, HDI)
15
10039
CABLE STRAP
16
10264
CLIP CLUTCH LINE
17
11650
GROMMET SIDE COVER
18
47900-14BHP
FRAME MAIN, W/ BEARING CUPS (ALSO ORDER 45700009)
19
49184-09A
ENGINE GUARD W/ 2708A, 6116 & 14148-86
20
49725-07A
SPRING JIFFY STAND
21
50015-74A
LEG STOP
22
50075-07A
LEG JIFFY STAND
23
50096-09
BRACKET JIFFY STAND LEG
24
50126-08A
SENSOR JIFFY STAND, W/ 72169-07, 72511-07BK & 73213-07 (ENGLAND, HDI, BRAZIL)
25
50245-07
BUMPER JIFFY STAND LEG
26
58167-09A
DEFLECTOR AIR (RIGHT)
26
58169-09
DEFLECTOR AIR, LEFT
27
66048-09A
SIDE COVER RIGHT (UNPAINTED)
27
66250-09
SIDE COVER LEFT (UNPAINTED)
28
72169-07
TERMINAL PIN, 16-20 AWG (ENGLAND, HDI, BRAZIL)
29
72511-07BK
HOUSING PIN, 3-WAY (BLACK) (ENGLAND, HDI, BRAZIL)
30
73213-07
RETAINER XMAS TREE CLIP (ENGLAND, HDI, BRAZIL)
31
90520-07
HOLE PLUG JIFFY STAND (EXCEPT ENGLAND, HDI, BRAZIL)
32
10800024
CLIP CONDUIT, ROSEBUD MOUNT
33
10800025
CLIP CONDUIT, ROSEBUD MOUNT
34
12600067
FASTENER PLASTIC
35
14000827
CLEAR OVERLAY VIN LABEL (JAPAN)
36
45700009
BEARING KIT STEERING HEAD, W/ BEARING CUPS, BEARING CONES & DIRT GUARDS
38
69200202A
WIRE TROUGH
39
69200203A
COVER WIRE TROUGH, WITH 15368-01A AND 69201459
