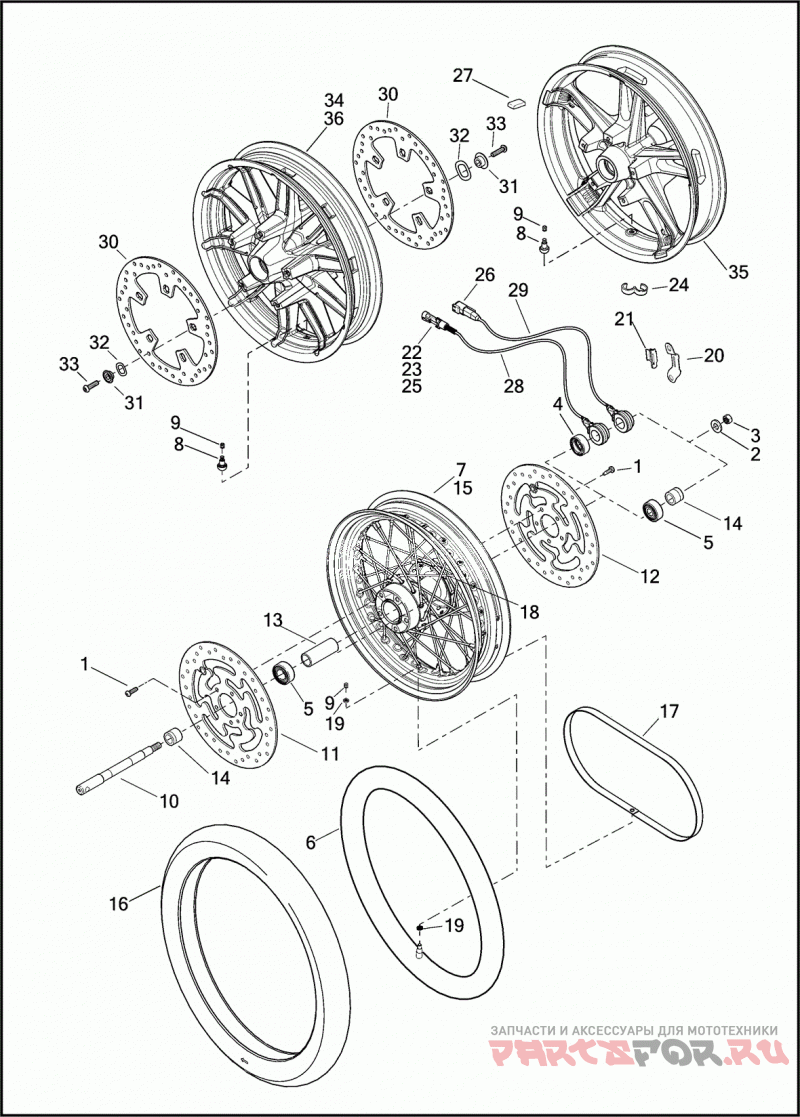

Колеса перед

Harley Davidson FLHR 1FBM ROAD KING (2015)

Harley Davidson
#oem кодцена
1
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
2
6594
WASHER 5/8 X 1-1/8 X 3/32
3
7813A
NUT 5/8-18 X 9/16 X 15/16 (GRADE 2)
4
9252
BALL BEARING W/ ENCODER, ABS
5
9276A
BALL BEARING NON-ABS
6
40558-82
INNER TUBE 16 IN., SIDE VALVE, W/ 54321-85
7
40960-09
WHEEL ASSEMBLY 16 IN. LACED, W/O BEARINGS & SLEEVE, W/ 43085-97 & 43241-05
8
40999-87
VALVE STEM FOR CAST WHEELS
9
41123-79
VALVE CAP
10
41547-07A
Мост
11
41808-08A
BRAKE DISC RIGHT (USED W/ 40960-09)
12
41809-08A
BRAKE DISC LEFT (USED W/ 40960-09)
13
41900-08
SLEEVE BEARING SPACER
14
41901-08
SPACER NON-ABS, RIGHT & LEFT
15
43085-97
RIM 16 IN. (CHROME)
16
43109-09A
TIRE BLACK WALL, 17 IN.
16
43118-92A
TIRE WIDE WHITE WALL, 16 IN.
17
43147-40
RIM STRIP 16 INCH, SIDE VALVE, USED WITH 43085-97
18
43241-05
SPOKE & NIPPLE KIT 16 IN., SET OF 40
19
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
20
70493-08
BRACKET WHEEL SPEED SENSOR, ABS
21
70494-08
CLIP WHEEL SPEED SENSOR, ABS
24
70631-08
CLIP CONDUIT, ABS
26
74190-98
TERMINAL PIN, 16-20 AWG
27
95594-84B
WEIGHT 5 grams (black)
27
95595-84B
WEIGHT 5 GRAMS (SILVER)
29
32700017
SENSOR WHEEL SPEED, ABS, W/ 74190-08
30
41500017
BRAKE ROTOR FRONT (USED W/ 43300019, 43300027 & 43300221)
31
41500018
BUSHING FRONT ROTOR (USED W/ 43300019, 43300027 & 43300221)
32
41500019
SPRING FRONT ROTOR (USED W/ 43300019, 43300027 & 43300221)
33
41500020
SCREW (USED W/ 43300019, 43300027 & 43300221)
34
43300019
WHEEL CAST, W/O BEARINGS & SLEEVE, 10 SPOKE, 17 IN. (BLACK)
