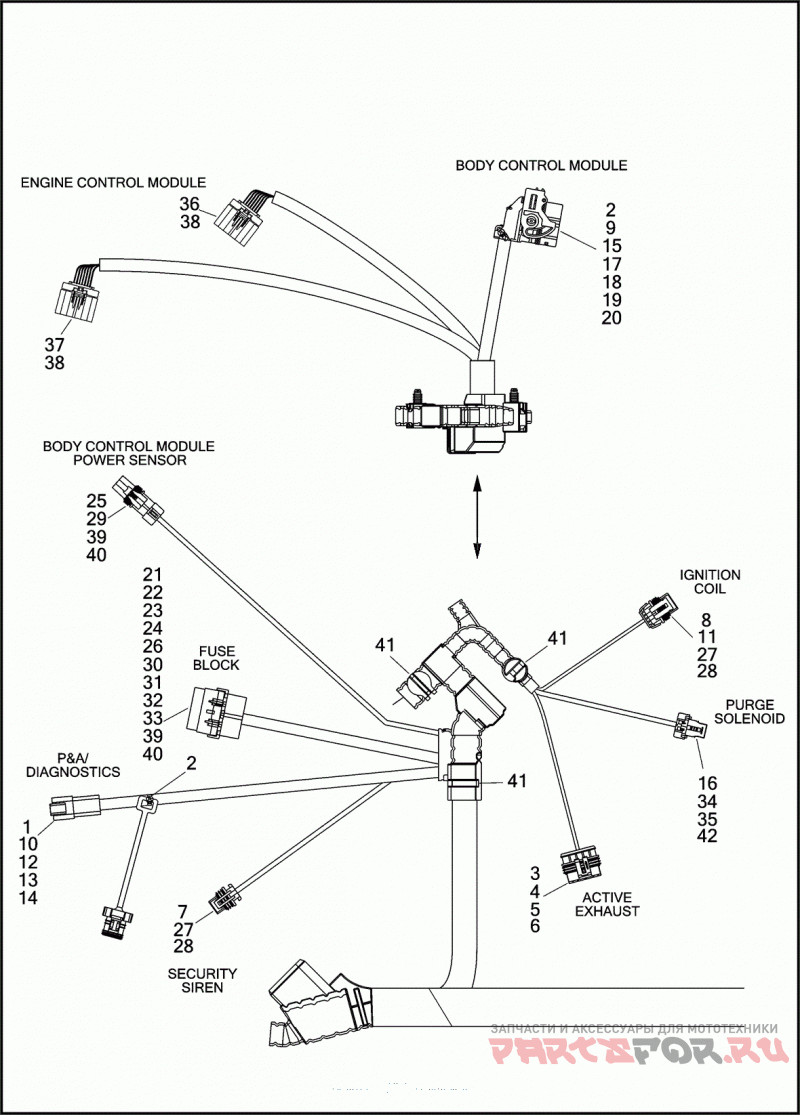

WIRING HARNESS, MAIN, ABS (4 OF 5)

Harley Davidson FLD 103 1GZM DYNA SWITCHBACK (2015)

Harley Davidson
#oem кодцена
71075-12A
WIRING HARNESS, MAIN (CONTINUED)
1
6990
PLUG WEATHER, 6-WAY PIN
2
10065
CABLE STRAP
3
72010-05
WIRE SEAL 22-26 GAUGE (GREEN)
4
72012-07
HOUSING 5-WAY SOCKET
5
72014-07
SEAL PIN
6
72024-08
TERMINAL SOCKET, 20-22 GAUGE
7
72064-06
HOUSING 3-WAY SOCKET
8
72066-06A
HOUSING 4-WAY SOCKET (BLACK)
9
72081-11
HOUSING 48-WAY SOCKET
10
72106-94BK
HOUSING 8-PIN SOCKET (BLACK)
11
72135-06
SECONDARY LOCK 4-WAY SOCKET (GRAY)
12
72146-94
PIN LOCK SEC 6
13
72190-94
TERMINAL PIN, 16-18 GAUGE
14
72194-94
TERMINAL PIN, 20 GAUGE
15
72209-11
COVER WIRE
16
72213-94
TERMINAL SOCKET, 16-20 GAUGE
17
72222-11
TERMINAL SOCKET 18-20 GAUGE
18
72226-11
TERMINAL SOCKET 14-16 GAUGE
19
72227-11
TERMINAL SOCKET, 18-20 GAUGE
20
72256-11
SEAL PIN .6MM, PLUG
21
72298-95
WIRE SEAL 14-18 GAUGE (GREEN)
22
72308-97
TERMINAL FEMALE, 12-14 GAUGE
23
72314-01
MAIN FUSE 40 AMP, NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
24
72330-95
FUSE 15 AMP (BLUE)
25
72350-11
HOUSING ONE-WAY
26
72356-95
TERMINAL SOCKET, 18-20 GAUGE
27
72484-08
TERMINAL SOCKET, 20 GAUGE
28
72486-08
WIRE SEAL 20 GAUGE (GREEN)
29
72575-11
SECONDARY LOCK
30
72582-11
FUSE BLOCK MAXI/MINI
31
72586-11
COVER FUSEBLOCK, NOTE: COVER IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
32
72587-11
SECONDARY LOCK FUSE BLOCK, MAXI/MINI
33
72595-11
SEAL FUSE BLOCK, MAXI/MINI, NOTE: SEAL IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
34
72609-08
SECONDARY LOCK 2-WAY SOCKET (BLACK)
35
72610-08
SEAL CABLE, 18-20 GAUGE (WHITE)
36
72664-12A
HOUSING 18-WAY SOCKET, KEY A
37
72665-12A
HOUSING 18-WAY SOCKET, KEY B
38
72666-12
TERMINAL SOCKET, 18-20 GAUGE (SILVER)
39
73304-04
TERMINAL .31 SOCKET, 10 GAUGE
40
73305-04
SEAL WIRE 10 AWG (BLUE)
41
12500003
CABLE STRAP
42
69200245
HOUSING 2-WAY SOCKET (BLACK)
