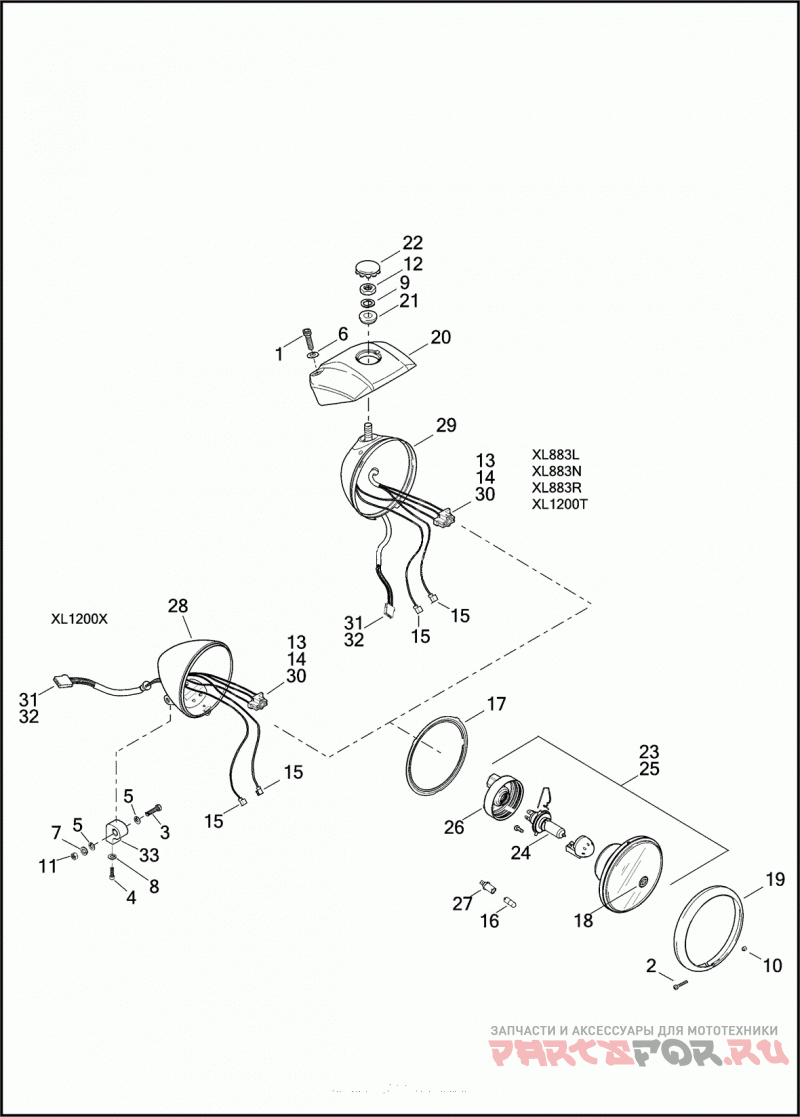

HEADLAMP - 883L/N/R, 1200T/X

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2014)

Harley Davidson
#oem кодцена
2
3514
Деталь SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
4724
Деталь BOLT 3/8-24 X 1-1/2 HEX HD. (GRADE 5)
4
4748
Деталь SCREW 3/8-16 X 1-1/8 SOCKET HD. (GRADE 8)
5
6701
Деталь WASHER 3/8 X 13/16 X 1/16
7
7038
Деталь LOCKWASHER 3/8
8
7045
Деталь LOCKWASHER 3/8 HIGH COLLAR
9
7073
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
9
7230
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
10
7606
Деталь LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
10
7716
Деталь LOCKNUT 1/4-20 X 7/16 FLANGE
11
7800W
Деталь NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
13
9847
Деталь CONNECTOR RIGHT
14
9848
Деталь CONNECTOR LEFT
15
9898
Деталь TERMINAL FLAG
16
53436-97
Деталь BULB
17
67883-04A
Деталь ADAPTER RING
18
67667-05
Деталь MEDALLION
19
67790-93A
Деталь BEZEL (CHROME)
23
68297-05A
Деталь LAMP ASSEMBLY WITH 15, 21, 22
24
68329-03
Деталь BULB
25
68335-05A
Деталь LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
25
68341-05A
Деталь LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
26
68380-05
чехол
27
68653-05
Деталь SOCKET BULB (2 SPADE)
28
73264-10
Деталь HEADLAMP SHELL W/ 13, 14, 15, 30, 31, 32 (BLACK)
28
67700094
Деталь HEADLAMP SHELL W/ 13, 14, 15, 30, 31, 32, 7073, 7230 & 7716 (INDIA) (NOT SHOWN)
30
72056-92
Деталь HOUSING FEMALE
31
73154-96BK
Деталь SOCKET HOUSING 4-WAY (BLACK)
32
73191-96
Деталь SOCKET TERMINAL 16-20 AWG
33
73266-10
Деталь MOUNT
