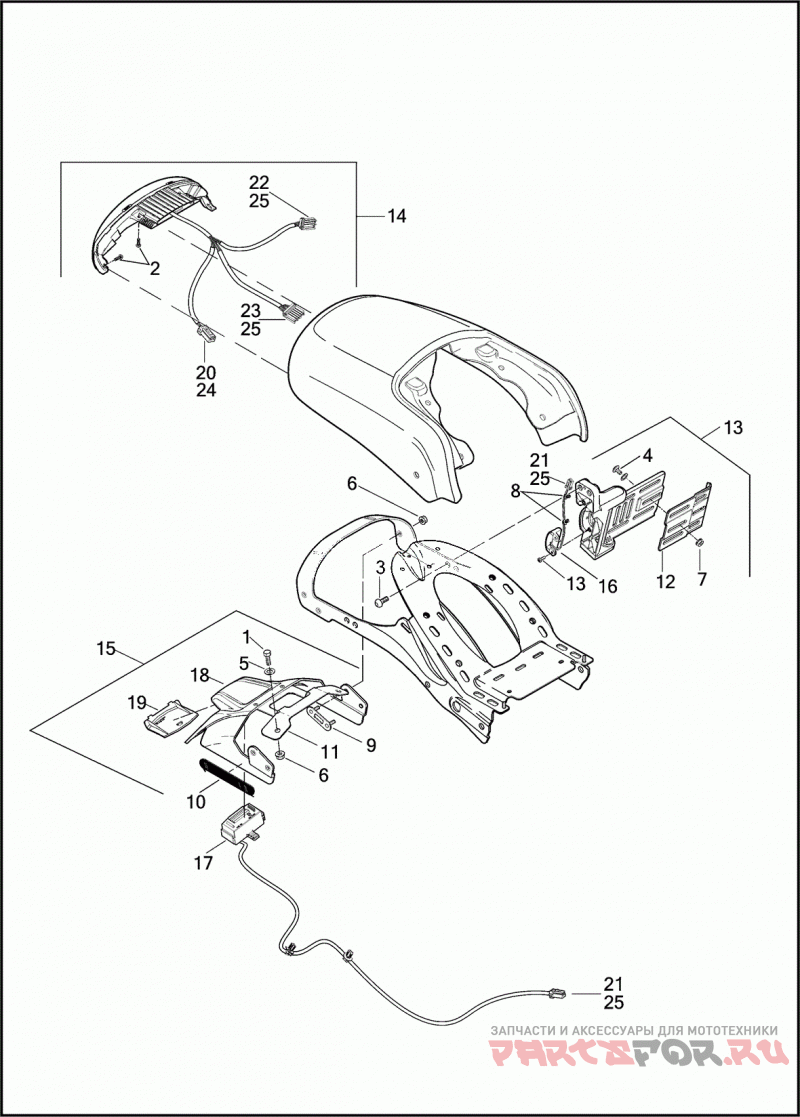

TAIL LAMP, TURN SIGNALS REAR, & LICENSE PLATE BRACKET - VRSCF

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2014)

Harley Davidson
#oem кодцена
1
3711M
SCREW M6 X 1.0 X 16 HEX HD.
2
4863M
SCREW M5 X .8 X 10 BUTTON HD.
3
4873M
SCREW M10 X 1.5 X 15 BUTTON HD.
4
5403B
BOLT 1/4-20 X 3/8 CARRIAGE
5
6859M
WASHER M6 SPECIAL
6
7495
NUT M6 FLANGE
7
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
8
10177
CABLE STRAP
9
59472-09
STUD PLATE (HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
10
60254-07
REFLECTOR (HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL) (AMBER)
10
69490-07
REFLECTOR (CANADA) (RED)
11
60924-09
BRACKET (HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
12
68702-07
BRACKET ADJUST
13
69390-09
LICENSE PLATE BRACKET W/ 5403B, 7716, 10177, 69420-09 & 68702-07
14
69391-09
TAILLAMP W/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96 & 73191-96 (DOMESTIC)
14
69392-09
TAILLAMP W/ 73102-96BK, 73154-96BK, 73156-96BK, 73190-96 & 73191-96 (HDI, AUSTRALIA, ENGLAND, JAPAN, H105)
15
69394-09
LICENSE PLATE BRACKET W/ 60254-07, 69424-09, 69523-09 & 69585-09 (HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
15
67900108
LICENSE PLATE BRACKET W/ 69490-07, 69424-09, 69523-09 & 69585-09 (CANADA)
16
69420-09
ILLUMINATOR LICENSE PLATE W/ 75152-96BK & 73191-96
17
69424-09
LAMP ASSEMBLY W/ 73152-96BK, & 73191-96 (CANADA, HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
18
69523-09
LICENSE PLATE BRACKET W/ 60924-09 (CANADA, HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
19
69585-09
COVER LICENSE PLATE (CANADA, HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
20
73102-96BK
PIN HOUSING 2-WAY (BLACK)
21
73152-96BK
HOUSING RECEPTACLE 2-WAY
22
73154-96BK
HOUSING RECEPTACLE 4-WAY (BLACK)
23
73156-96BK
HOUSING RECEPTACLE 6-WAY (BLACK)
24
73190-96
TERMINAL PIN 20-16 GAUGE
25
73191-96
RECEPTACLE CONTACT (AS REQUIRED)
