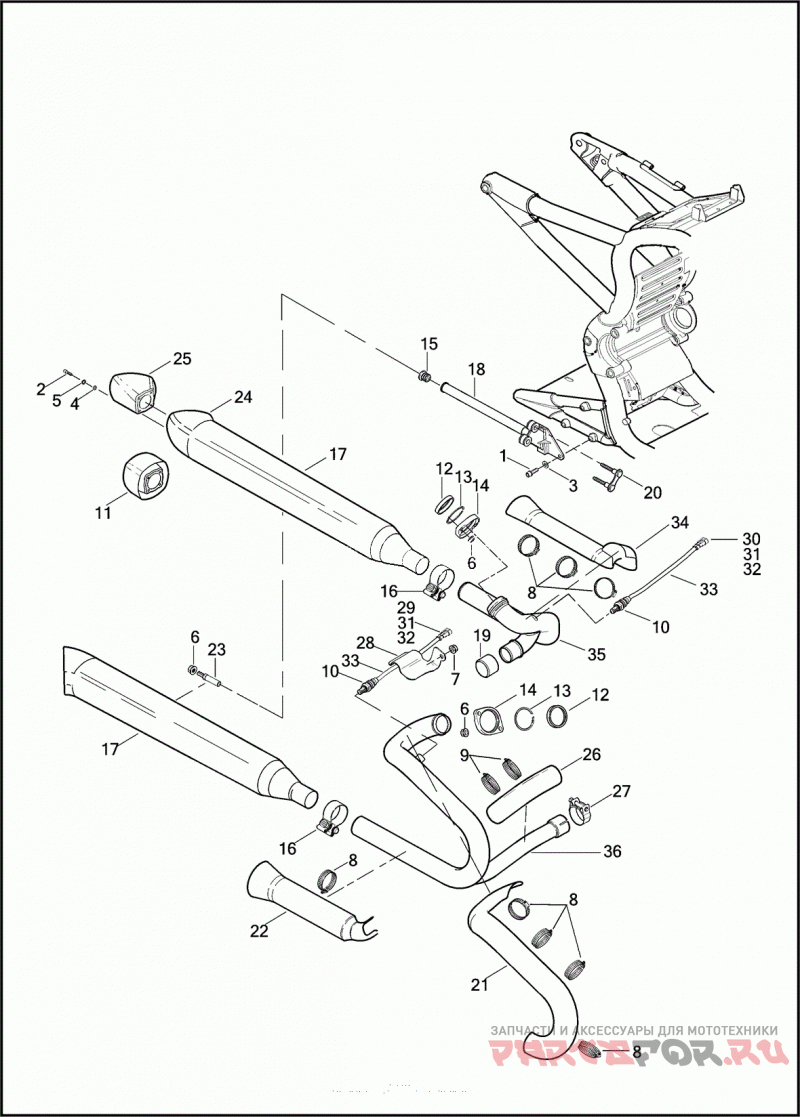

EXHAUST SYSTEM - VRSCF

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2014)

Harley Davidson
#oem кодцена
1
3709M
SCREW M8 X 1.25 X 20 SOCKET HD.
2
4561M
SCREW M5 X .8 X 10 HEX SOCKET HD. CAP
3
6302
WASHER 5/16 X 11/16 X 19/32
4
6454
WASHER 5.3 X 9.9 X 1.0
5
7081
LOCKWASHER M5 STAINLESS STEEL
6
7432M
NUT M8 X 1.25 FLANGE
7
7495
NUT M6 FLANGE
8
9955
Зажим
9
10119
Зажим
10
11936
Прокладка
11
64959-10
ENDCAP (HDI, AUSTRALIA, ENGLAND, JAPAN, CANADA, H105, BRAZIL) (BLACK)
12
64971-09
Уплотнение
13
65045-01
Стопорное кольцо
14
65102-01
FLANGE
15
65126-09
Изолятор
16
65296-95A
Зажим
17
65268-09
MUFFLER LEFT & RIGHT W/ 7432M & 65800-09 (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND, H105, BRAZIL)
17
65285-09
MUFFLER W/ 7432M & 65800-09, LEFT & RIGHT (JAPAN)
18
65286-09
SUPPORT EXHAUST RIGHT W/ 65126-09
18
65616-09
SUPPORT EXHAUST LEFT - (NOT SHOWN)
19
66813-09
Уплотнение
20
65786-09
STUD PLATE
21
65787-09
SHIELD UPPER, RIGHT
22
65799-09
SHIELD LOWER, RIGHT
23
65800-09
Штифт
24
66253-09
ENDCAP OUTER (DOMESTIC, CALIFORNIA)
25
66254-10
ENDCAP INNER (DOMESTIC, CALIFORNIA)
26
66255-10
SHIELD CROSS OVER
27
66277-09
Зажим
28
70580-08
BRACKET OXYGEN SENSOR - REAR
29
72177-07BK
SOCKET HOUSING 4-WAY (BLACK)
30
72444-07GY
HOUSING 8-WAY (GREY)
31
72344-10
TERMINAL SOCKET
32
73307-10
TERMINAL SOCKET
33
32700005
OXYGEN SENSOR FRONT W/ 11936, 72344-10, 72444-07GY & 73307-10
33
32700006
OXYGEN SENSOR REAR W/ 11936, 72177-07BK, 72344-10 & 73307-10
34
65400012
SHIELD FRONT
35
65600069
EXHAUST PIPE FRONT (DOMESTIC, CALIFORNIA, CANADA) (CHROME)
35
65600073
EXHAUST PIPE FRONT (HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
36
65600071
EXHAUST PIPE REAR W/ 66277-09 (DOMESTIC, CALIFORNIA, CANADA) (CHROME)
36
65600074
EXHAUST PIPE REAR (HDI, AUSTRALIA, ENGLAND, JAPAN, H105, BRAZIL)
