WIRING HARNESS, MAIN (5 OF 5) для мотоциклов Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2014) (2014)

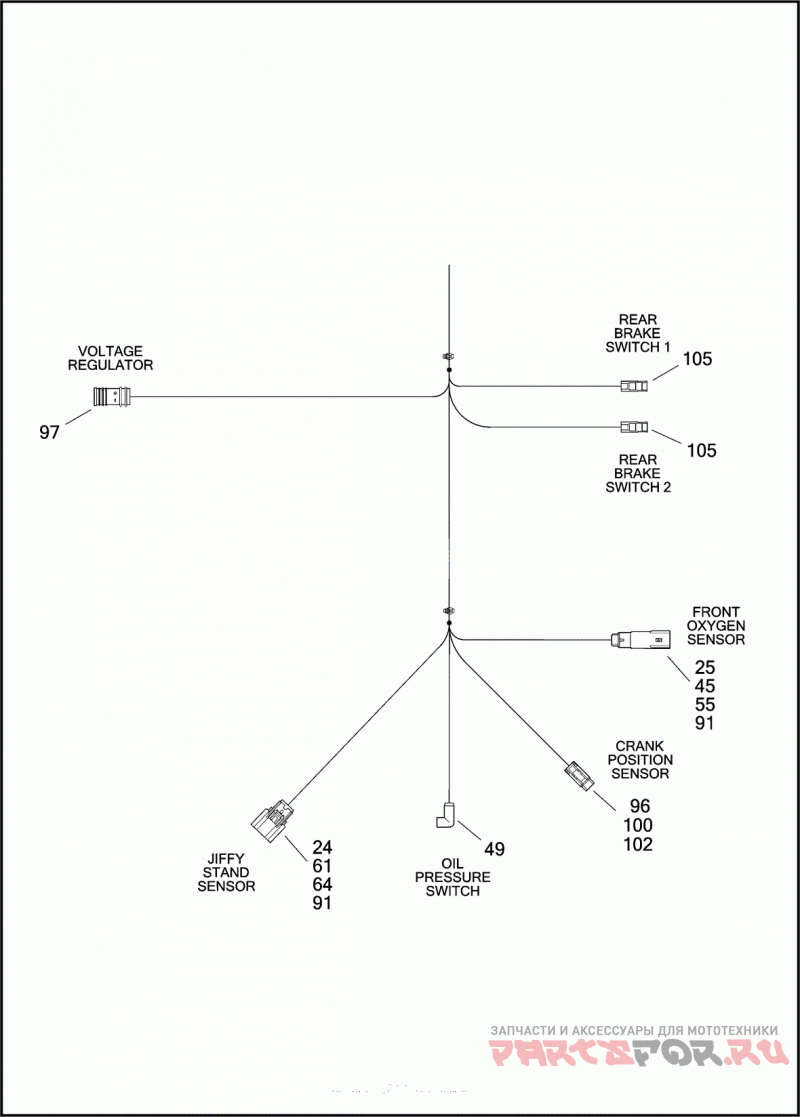

WIRING HARNESS, MAIN (5 OF 5)

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2014)

oem код

название

цена

70132-14

MAIN WIRING HARNESS (CONTINUED)

72907-11

HOUSING 4-WAY PIN

72909-11

TERMINAL PIN, #20-21 AWG

73154-96BK

HOUSING 4-WAY SOCKET

73191-96

TERMINAL SOCKET, #16-20 AWG

73198-96

CONNECTOR ANCHOR

73213-07

RETAINER X-MAS TREE CLIP

73304-04

TERMINAL .31 SOCKET, #10 AWG

73305-04

SEAL WIRE #10 AWG (BLUE)

74103-98BK

HOUSING 3-WAY PIN (BLACK)

74104-98BK

HOUSING 4-WAY PIN (BLACK)

74112-98BK

HOUSING 2-WAY SOCKET (BLACK)

74120-08

DC LEAD ASSEMBLY

74143-98

SECONDARY LOCK 3-WAY PIN

74144-98

SECONDARY LOCK 4-WAY PIN

100

74152-98

SECONDARY LOCK 2-WAY SOCKET

101

74190-98

TERMINAL PIN, #16-20 AWG

102

74191-98

TERMINAL SOCKET

103

69200010

CONNECTOR 4-WAY PIN (GRAY)

104

69200012

BRACKET 3-DEUTSCH PIN HOUSINGS

105

69200238

TERMINAL INSULATED, #20 AWG

106

69200267A

HOUSING 18-WAY, SOCKET, KEY B (GRAY)

107

69200268A

HOUSING 18-WAY, SOCKET, KEY C (BROWN)

108

69200785

BRACKET ELECTRICAL CONNECTORS, LEFT
