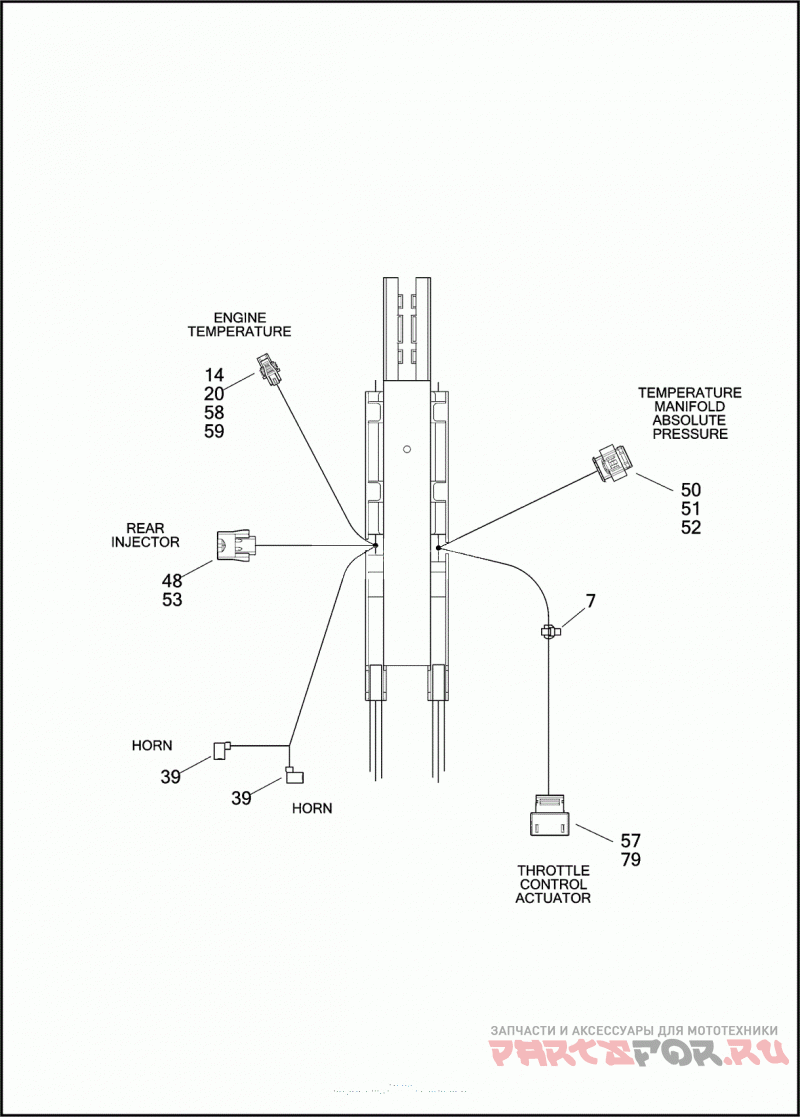

WIRING HARNESS, MAIN (2 OF 5)

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2014)

Harley Davidson
#oem кодцена
70132-14
Деталь MAIN WIRING HARNESS (CONTINUED)
21
72106-94BK
Деталь RECEPTACLE, 6-way pin (black)
22
72135-06
Деталь SECONDARY LOCK 4-WAY SOCKET (GRAY)
23
72146-94
Деталь PIN LOCK SEC 6
24
72168-07
Деталь TERMINAL SOCKET, #18-20 AWG
25
72169-07
Деталь TERMINAL PIN, #16-20 AWG
26
72175-07BK
Деталь HOUSING 4-WAY PIN (BLACK)
27
72190-94
Деталь TERMINAL PIN, #16-18 AWG
28
72194-94
Деталь TERMINAL PIN, #20 AWG
29
72199-94
Деталь CONNECTOR ANCHOR
30
72213-94
Деталь TERMINAL SOCKET, #16-20 AWG
31
72222-11
Деталь TERMINAL SOCKET, #18-20 AWG
32
72226-11
Деталь TERMINAL SOCKET, #14-16 AWG
33
72227-11
Деталь TERMINAL SOCKET, #18-20 AWG
34
72242-94
Деталь TERMINAL 1/4 RING
35
72249-94
Деталь SHRINK TUBE (BLACK)
36
72251-07
Деталь SECONDARY LOCK 2-WAY SOCKET (YELLOW)
37
72254-94
Деталь TERMINAL RING .25 STUD, #14-16 AWG
38
72256-11
Деталь SEAL PIN .6MM PLUG
39
72283-09
Деталь TERMINAL FEMALE, #14-16 AWG
40
72295-94
Деталь HOUSING STARTER CONNECTION
41
72298-95
Деталь CABLE SEAL (GREEN)
42
72308-97
Деталь TERMINAL FEMALE, #12-14 AWG
