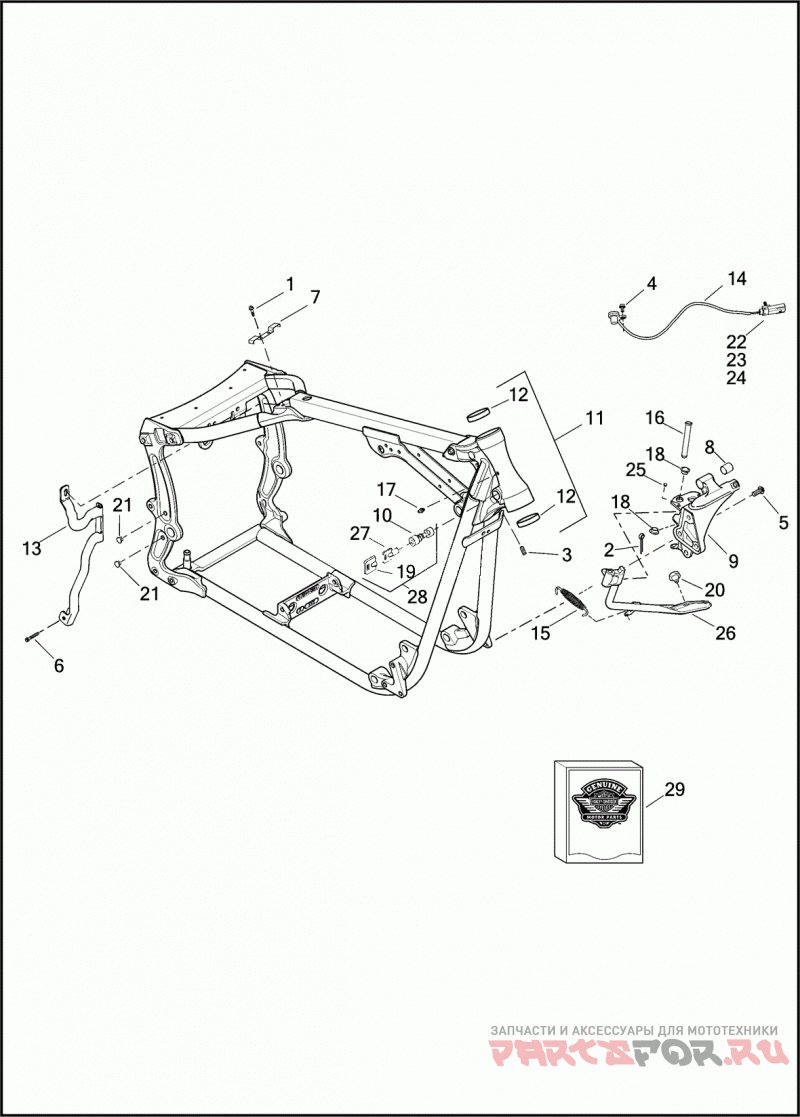

FRAME & JIFFY STAND

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2014)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
520W
Шплинт
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
5
4512A
SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)
6
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
7
10193
WIRE CLAMP
8
33708-94
BEARING SLEEVE
9
33683-07A
BRACKET ASSEMBLY JIFFY STAND, SHIFT LEVER & FOOTREST (GLOSS BLACK) W/ 33708-94
10
45680-90
FORK LOCK (SPECIFY KEY CODE)
11
47167-11BHP
FRAME W/ 48315-60 & 50972-75 (GLOSS BLACK)
11
47000060BKO
FRAME W/ 48315-60 & 50972-75 (COBALT BLUE)
11
47000060CRP
FRAME W/ 48315-60 & 50972-75 (BLACK DIAMOND)
12
48315-60
BEARING CUP
13
48872-09
POST ASSEMBLY SEAT (GRANITE)
14
49716-08A
JIFFY STAND SENSOR W/ 72169-07, 72511-07BK & 73213-07 (HDI, ENGLAND)
15
49725-07A
SPRING JIFFY STAND LEG
16
50003-89B
CLEVIS PIN
17
83459-09
FITTING lubrication
18
53176-08
Втулка
19
61081-92
COVER KEY HEAD SET
20
62123-66A
Амортизатор ударов
21
68446-00
Заглушка
22
72169-07
TERMINAL PIN, #16-20 AWG (HDI, ENGLAND)
23
72511-07BK
HOUSING 3-WAY, PIN (HDI, ENGLAND)
24
73213-07
RETAINER X-MAS TREE CLIP (HDI, ENGLAND)
25
94090-91T
Заглушка
26
50000053
LEG JIFFY STAND (CHROME)
28
90300069
LOCK SET COMPLETE, W/ KEYS, KEY COVERS & FORK LOCK (SPECIFY KEY CODE - FOR KEY CODES 5000 AND UP)
29
93100030
COVER KIT MOTORCYCLE, W/ CVO LOGO
