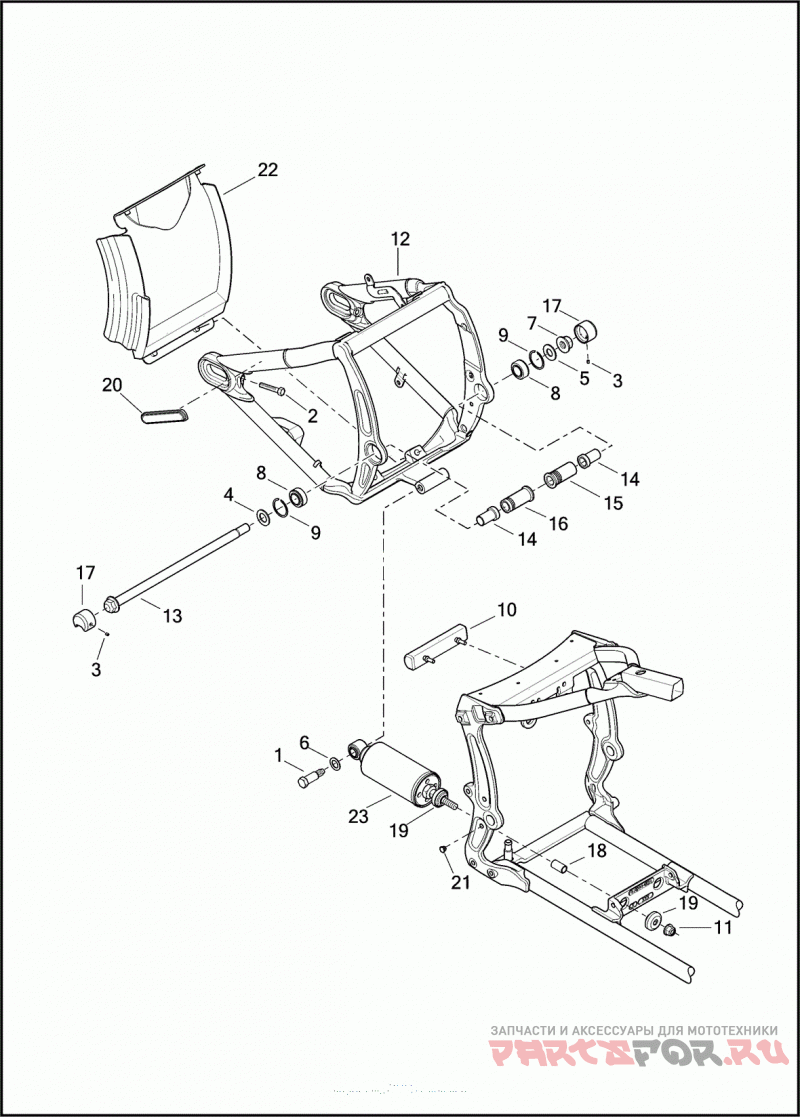

FORK, REAR & SHOCK ABSORBERS

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2014)

Harley Davidson
#oem кодцена
1
4074A
BOLT 1/2-13 X 2 HEX HD., SHOULDER
2
4433
ADJUSTER SCREW RIGHT SIDE
2
8195
ADJUSTER SCREW LEFT SIDE
3
4967
Втулка
4
6534
WASHER 3/8 X 1-3/4 X 3/32 HARDENED
5
6535
WASHER 5/16 X 1-1/4 X 3/32 HARDENED
6
6724
WASHER 21/32 X 1-1/16 X 1/16
7
7479
NUT 5/8-11 FLANGE (GRADE 6)
8
9209
BEARING W/ 11282
9
11282
RETAINING RING FORK BEARING
10
11565C
BUMPER REAR FORK
11
45764-00
LOCKNUT FLANGE
12
47694-11BHP
REAR FORK W/ 11282 & 9270A (GLOSS BLACK)
12
47400039BKO
REAR FORK W/ 11282 & 9270A (COBALT BLUE)
12
47400039CRP
REAR FORK W/ 11282 & 9270A (BLACK DIAMOND)
13
47670-08
PIVOT SHAFT
14
48048-00A
BUSHING REAR FORK
15
48049-08
SPACER REAR FORK, LEFT
16
48104-08
SPACER REAR FORK, RIGHT
17
48804-09
COVER PIVOT, RIGHT
17
48848-09
COVER PIVOT, LEFT
18
56182-00A
Втулка
19
56183-00
WASHER W/ GROMMET
20
59405-09
REFLECTOR (AMBER) (HDI)
20
60271-08
REFLECTOR (RED)
21
68446-00
Заглушка
22
49000014
Защита
23
54000045
SHOCK ABSORBER W/ 56182-00A & 56183-00
