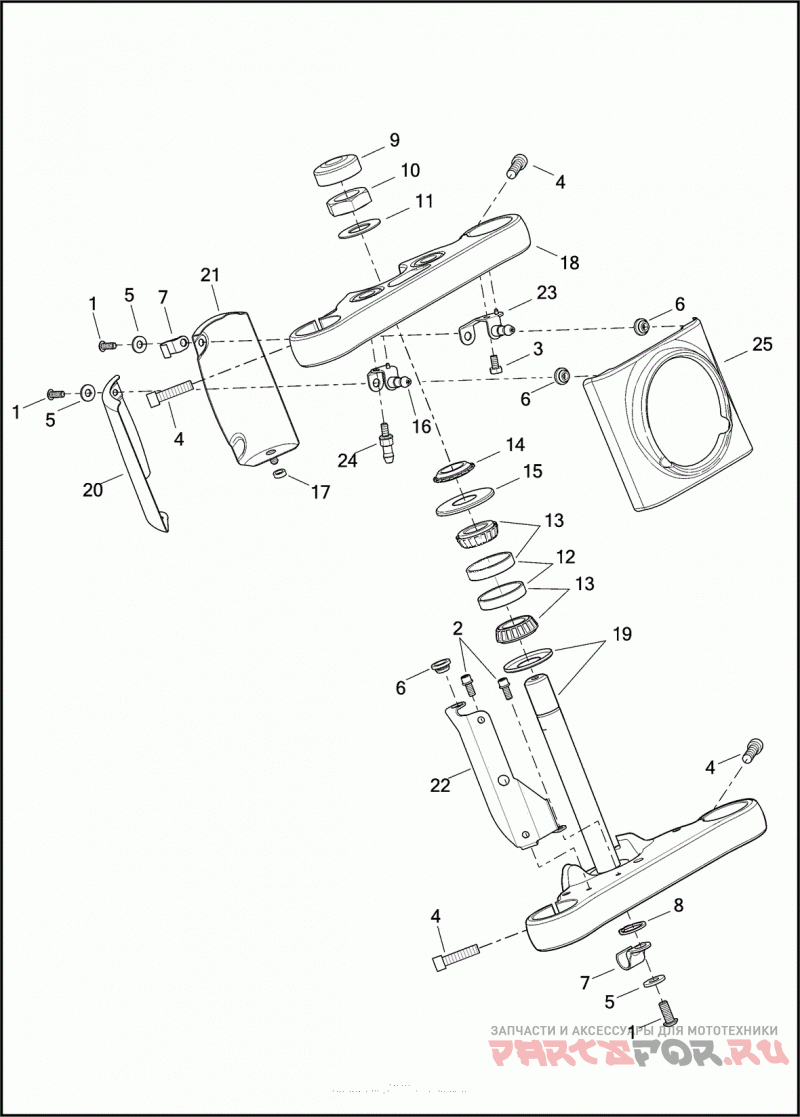

FORK BRACKET

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2014)

Harley Davidson
#oem кодцена
1
941
SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)
2
3061
SCREW 1/4-20 X 5/8 SEMS HEX HD.
3
3728
SCREW 1/4-20 X 1/2 HEX HD.
4
4311
SCREW 3/8-16 X 1-5/8 SOCKET HD.
5
6119
WASHER 1/4 X 9/16 X 1/16
6
11519
MOUNT RUBBER
7
38902-08
Зажим
8
45611-86
RETAINING RING FORK STEM
9
45670-80A
CAP FORK STEM
10
45718-60
NUT 1-24 X 1.5 X 0.47
11
45727-08
WASHER 1-1/32 X 2.0 X 1/16
12
48315-60
BEARING CUP
13
48300-60
ROLLER BEARING STEERING HEAD, W/ 48315-60
14
48324-00A
Гайка
15
48361-80
DUST SHIELD BEARING, UPPER
16
76132-00
Штифт
17
11100070
FOAM W/ ADHESIVE
18
45900060
UPPER TRIPLE CLAMP ASSEMBLY
19
45900064
LOWER TRIPLE CLAMP ASSEMBLY W/ 45611-86
20
61300149
PANEL RIGHT W/ 11100070
21
61300538
KIT-PANEL,LH,W/ WIRE CLAMP
22
61300164A
BRACKET (HCU)
23
61300181
BRACKET RIGHT
23
61300182
BRACKET LEFT
24
61300184
Уплотнитель резиновый
25
61300185
FRONT PANEL ASSEMBLY (CHROME)
