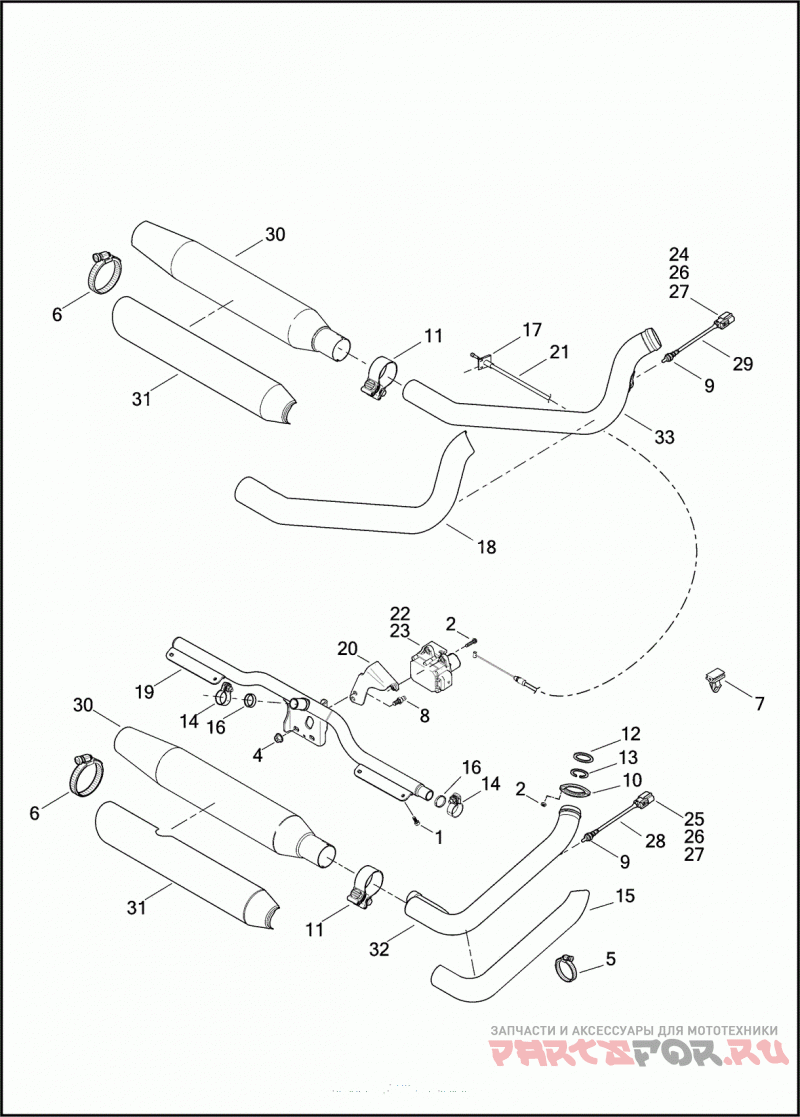

EXHAUST SYSTEM - FXSB

Harley Davidson FXSB 1BF5 SOFTAIL BREAKOUT (2014)

Harley Davidson
#oem кодцена
1
3391
SCREW 1/4-20 X 7/16 HEX FLANGE HD.
2
3574
SCREW 1/4-20 X 3/4 FLANGE
3
7593
NUT 5/16-24 FLANGE
4
7601
LOCKNUT 3/8-16 FLANGE
5
9955
CLAMP SHIELD
6
10074
CLAMP SHIELD
7
10147
CLIP CONNECTOR OXYGEN SENSOR (NOT ILLUSTRATED)
8
11860
STUD SPACER
9
11936
GASKET OXYGEN SENSOR
10
65184-02
FLANGE EXHAUST PIPE
11
65296-95A
CLAMP MUFFLER
12
65324-83B
GASKET EXHAUST PORT
13
65325-83A
RETAINING RING EXHAUST GASKET
14
65521-10
KIT-CLAMP INTERCONNECT, W/ 65830-10
15
65707-10A
SHIELD FRONT EXHAUST
16
65830-10
GASKET EXHAUST INTERCONNECT
18
66772-08A
SHIELD REAR EXHAUST
19
66773-10
TUBE ASSEMBLY INTERCONNECT
20
66797-07
BRACKET ASSEMBLY ACTUATOR SUPPORT (AUSTRALIA, ENGLAND, HDI)
24
72177-07BK
HOUSING 4-WAY, SOCKET (BLACK)
25
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
26
72444-07GY
HOUSING 4-WAY, SOCKET (GRAY)
27
73307-10
TERMINAL SOCKET, 22 AWG
28
32700005
OXYGEN SENSOR FRONT, W/ 11936, 72344-10, 72444-07GY & 73307-10
29
32700006
OXYGEN SENSOR REAR, W/ 11936, 72177-07BK, 72344-10 & 73307-10
30
64900172
MUFFLER ASSEMBLY FRONT (BRAZIL)
30
65682-07
MUFFLER ASSEMBLY FRONT/REAR (ASIA-PACIFIC)
31
65400106
SHIELD MUFFLER, FRONT
31
65463-00
SHIELD MUFFLER, FRONT/REAR (ASIA-PACIFIC)
31
65400107
SHIELD MUFFLER, REAR
32
65600031
EXHAUST PIPE ASSEMBLY FRONT
33
65600056
EXHAUST PIPE ASSEMBLY REAR (ASIA-PACIFIC, BRAZIL, DOMESTIC, JAPAN)
