WIRING HARNESS, MAIN (2 OF 5)

Harley Davidson FLSTNSE 1TF9 CVO SOFTAIL DELUXE (2014)

Harley Davidson
#oem кодцена
69200625

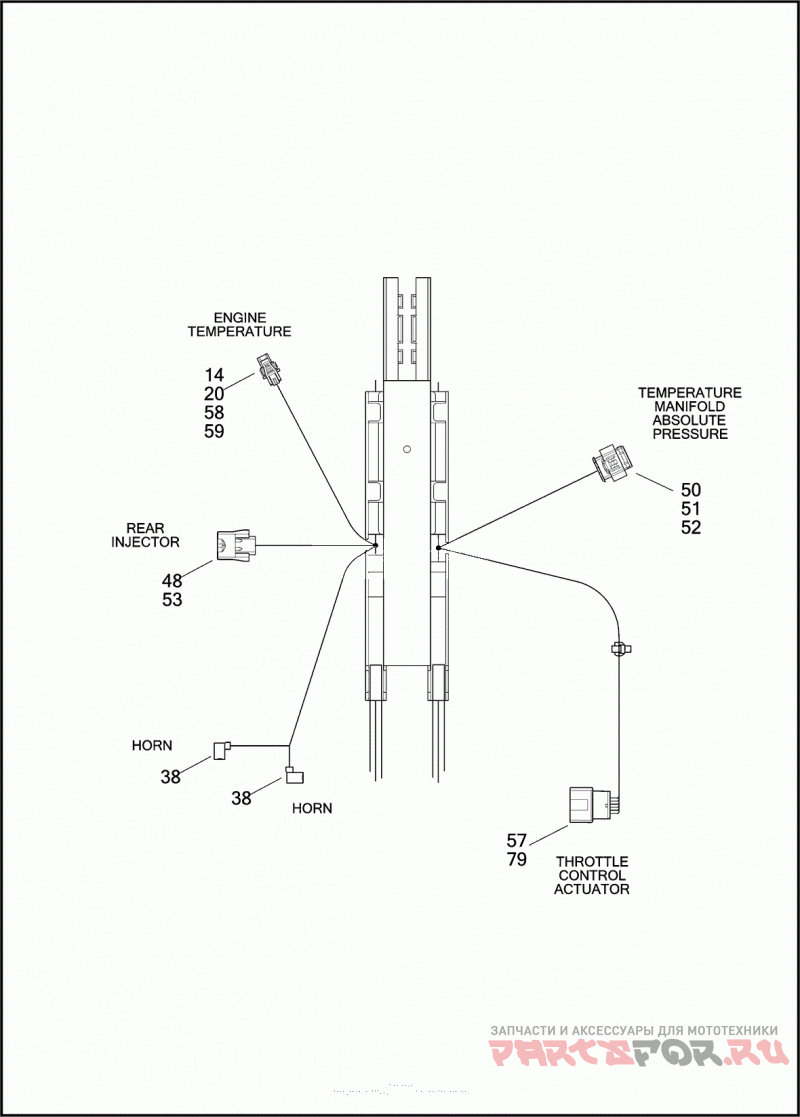

MAIN WIRING HARNESS (CONTINUED)
21
72106-94BK
RECEPTACLE, 6-way pin (black)
22
72135-06
SECONDARY LOCK 4-WAY SOCKET (GRAY)
23
72146-94
PIN LOCK SEC 6
24
72168-07
TERMINAL SOCKET, #18-20 AWG
25
72169-07
TERMINAL PIN, #16-20 AWG
26
72175-07BK
HOUSING 4-WAY PIN (BLACK)
27
72190-94
TERMINAL PIN, #16-18 AWG
28
72194-94
TERMINAL PIN, #20 AWG
29
72213-94
TERMINAL SOCKET, #16-20 AWG
30
72222-11
TERMINAL SOCKET, #18-20 AWG
31
72226-11
TERMINAL SOCKET, #14-16 AWG
32
72227-11
TERMINAL SOCKET, #18-20 AWG
33
72242-94
TERMINAL 1/4 RING
34
72249-94
SHRINK TUBE (BLACK)
35
72251-07
SECONDARY LOCK 2-WAY SOCKET (YELLOW)
36
72254-94
TERMINAL RING .25 STUD, #14-16 AWG
37
72256-11
SEAL PIN .6MM PLUG
38
72283-09
TERMINAL FEMALE, #14-16 AWG
39
72290-94
TERMINAL .250F, INSULATED
40
72295-94
HOUSING STARTER CONNECTION
41
72298-95
WIRE SEA (GREEN)
42
72308-97
TERMINAL FEMALE, #12-14 AWG
