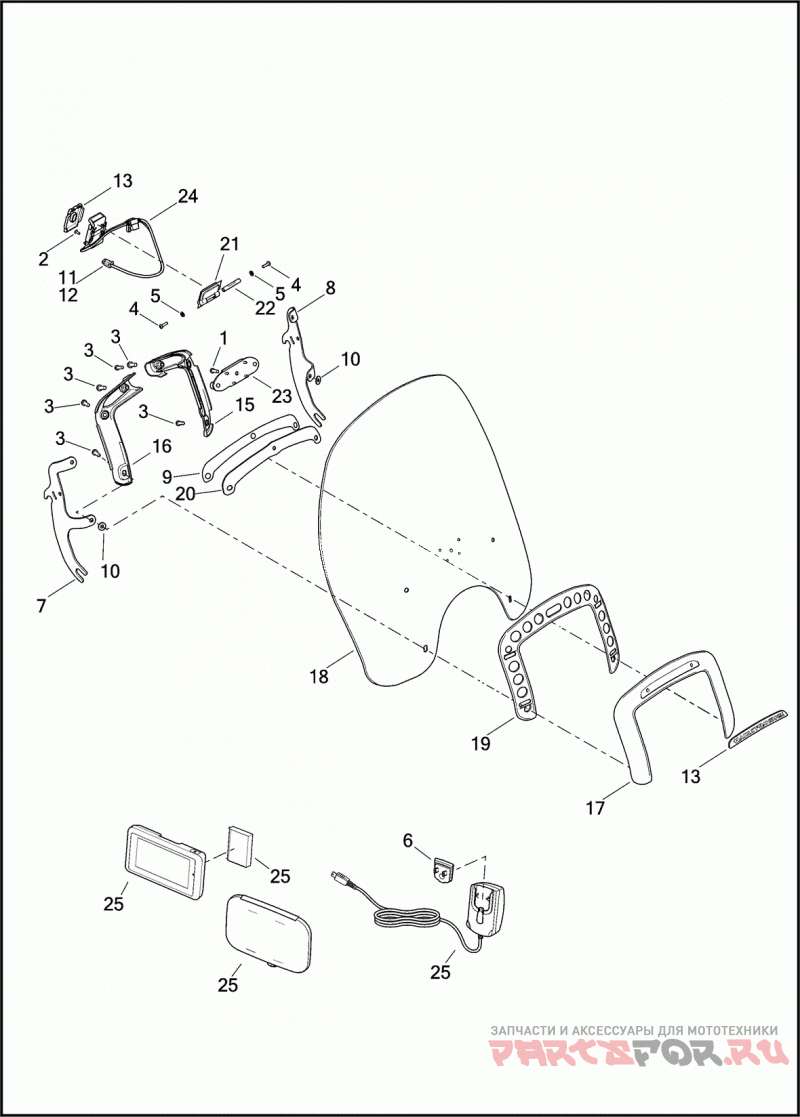

WINDSHIELD & ZUMO 660 GPS

Harley Davidson FLSTNSE 1TF9 CVO SOFTAIL DELUXE (2014)

Harley Davidson
#oem кодцена
1
940
SCREW 1/4-20 X 3/4 TORX BUTTON HD.
2
3164M
SCREW M4 X 10 SOCKET BUTTON HD.
3
4652
SCREW .3125-18UNC X .75 HEX SOCKET BUTTON HD.
4
4667
SCREW 10-24 X 3/4 HEX SOCKET HD.
5
7118
LOCKWASHER 3/16 INTERNAL TOOTH
6
12900
PLUG ADAPTER (DOMESTIC)
6
12901
PLUG ADAPTER (HDI)
6
92492-10
PLUG ADAPTER (AUSTRALIA)
7
57146-05
BRACKET MOUNTING, RIGHT
8
57147-05
BRACKET MOUNTING, LEFT
9
57151-05
GASKET INNER BRACE
10
57964-97
Шайба
11
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
12
74191-98
SOCKET TERMINAL
13
92288-09
COVER CRADLE, GPS
14
14100573
MEDALLION WINDSHIELD
15
57400197
COVER INNER LEFT BRACKET
16
57400198
COVER INNER RIGHT BRACKET
17
57400199
BRACKET FRONT WINDSHIELD
18
57400200
Ветровое стекло
19
57400211
GASKET WINDSHIELD
20
57400217
BRACE INNER WINDSHIELD
21
76000198
BRACKET INNER MOUNTING
22
76000199
PIN INNER MOUNTING BRACKET
23
76000367
MOUNT GPS, WINDSHIELD
24
76000392
GPS DOCKING/HARNESS ZUMO 660
