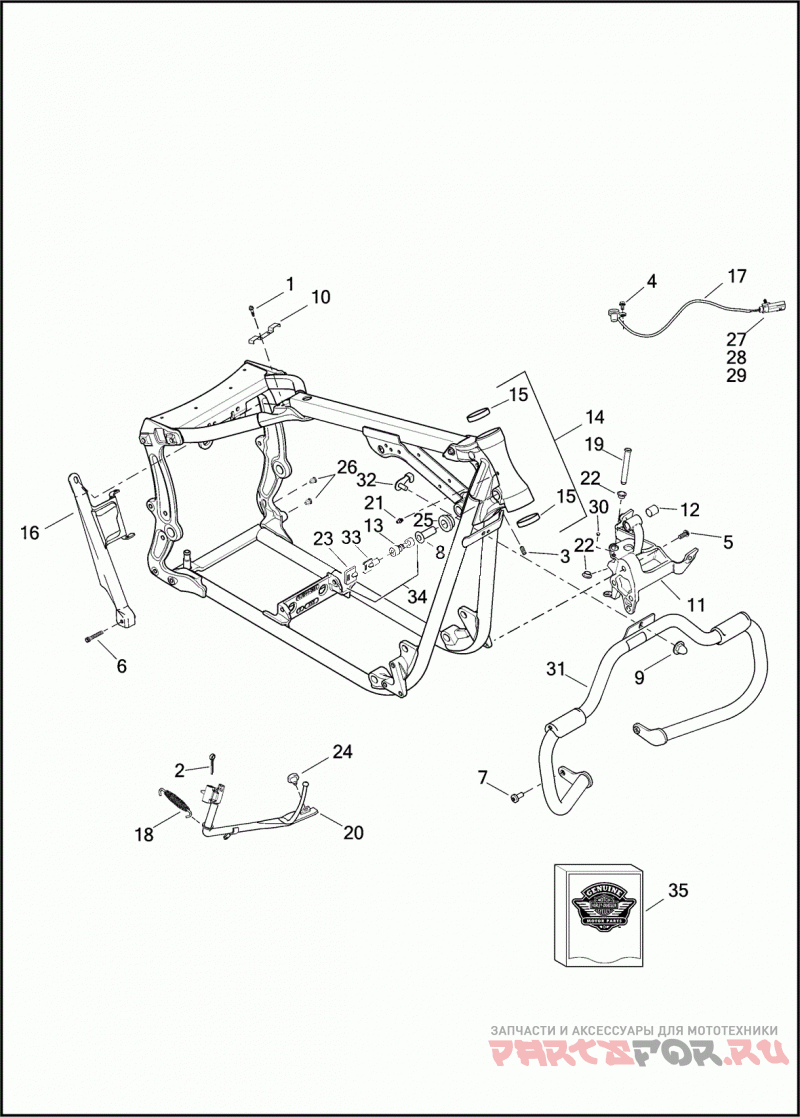

FRAME & JIFFY STAND

Harley Davidson FLSTNSE 1TF9 CVO SOFTAIL DELUXE (2014)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
520W
Шплинт
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
5
4512A
SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)
6
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
7
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
8
5818A
Втулка
9
7992
ACORN NUT 5/16-18
10
10193
WIRE CLAMP
11
33670-07
BRACKET ASSEMBLY JIFFY STAND, SHIFT LEVER & FOOTREST (CHROME) W/ 33708-94
12
33708-94
BEARING SLEEVE
13
45680-90
FORK LOCK (SPECIFY KEY CODE)
14
47173-10COZ
FRAME W/ 48315-60 & 50972-75 (CRIMSON RED SUNGLO)
14
47173-11BKO
FRAME W/ 48315-60 & 50972-75 (CANDY COBALT)
14
47173-11DGM
FRAME W/ 48315-60 & 50972-75 (MAPLE METALLIC)
15
48315-60
BEARING CUP
16
48885-10
POST ASSEMBLY SEAT (GRANITE)
17
49716-08A
JIFFY STAND SENSOR W/ 72169-07, 72511-07BK & 73213-07 (HDI, ENGLAND)
18
49725-07A
SPRING JIFFY STAND LEG
19
50003-89B
CLEVIS PIN
20
50103-07B
LEG JIFFY STAND
21
83459-09
FITTING lubrication
22
53176-08
Втулка
23
61081-92
COVER KEY HEAD SET
24
62123-07
Амортизатор ударов
25
62881-00
Уплотнитель резиновый
26
68446-00
PLUG BUTTON
27
72169-07
TERMINAL PIN, #16-20 AWG (HDI, ENGLAND)
28
72511-07BK
HOUSING 3-WAY, PIN (HDI, ENGLAND)
29
73213-07
RETAINER X-MAS TREE CLIP (HDI, ENGLAND)
30
94090-91T
Заглушка
31
49000045
ENGINE GUARD ASSEMBLY
32
49000064
BRACKET UPPER ENGINE GUARD
34
90300085
LOCK SET COMPLETE, W/ KEYS, KEY COVERS & FORK LOCK (SPECIFY KEY CODE - FOR KEY CODES 5000 AND UP)
35
93100031
COVER KIT MOTORCYCLE, W/ CVO LOGO
