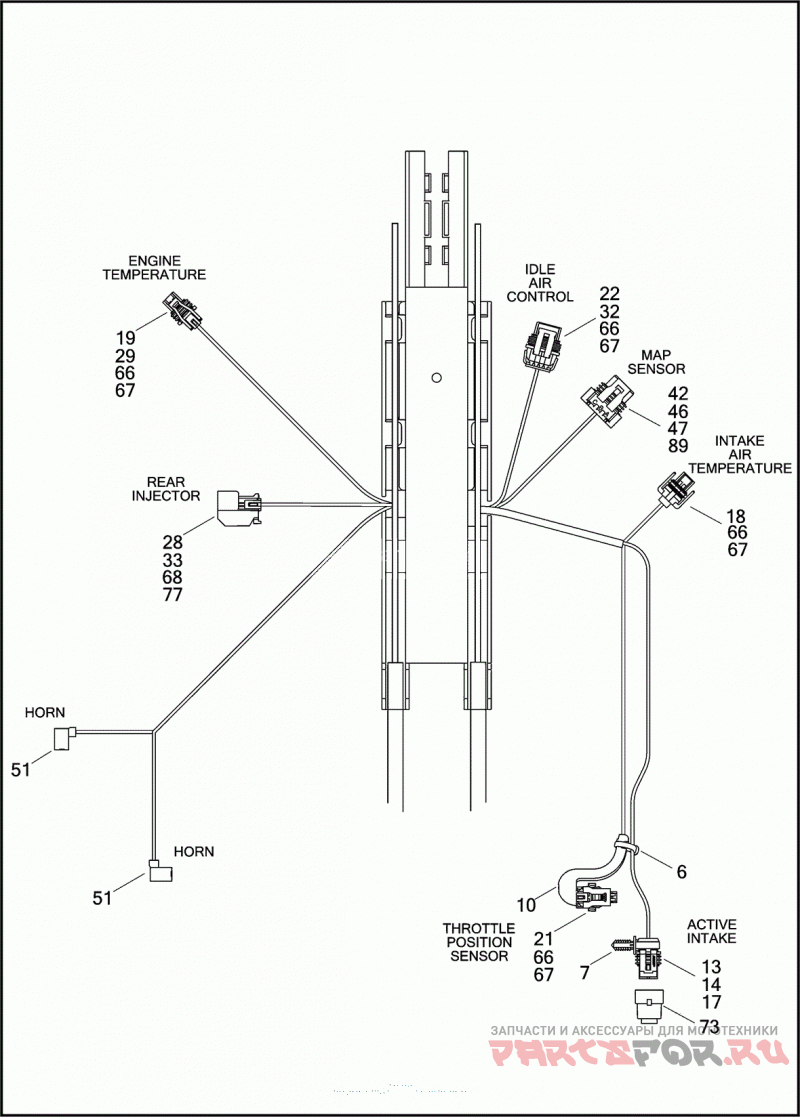

WIRING HARNESS, MAIN, ABS - FLSTC, FLSTF, FLSTN & FLSTFB (2 OF 5)

Harley Davidson FLSTF 1BX5 FAT BOY (2014)

Harley Davidson
#oem кодцена
70238-12
WIRING HARNESS, MAIN (CONTINUED)
69200495
WIRING HARNESS, MAIN (CONTINUED) (BRAZIL)
25
72094-06
TERMINAL SOCKET, FEMALE #18 AWG
26
72096-06
WIRE SEAL #18 AWG (YELLOW)
27
72097-06
PLUG OVAL (ORANGE) (BRAZIL)
28
72098-06
HOUSING 2-WAY SOCKET
29
72111-06
SECONDARY LOCK 2-WAY SOCKET (GRAY)
30
72106-94BK
HOUSING 6-PIN (BLACK)
31
72106-94BK
RECEPTACLE, 6-way pin (black)
32
72135-06
SECONDARY LOCK 4-WAY SOCKET (GRAY)
33
72145-06
SECONDARY LOCK 2-WAY SOCKET (BLUE)
34
72146-94
PIN LOCK SEC 6
35
72168-07
TERMINAL SOCKET, #18-20 AWG
36
72169-07
TERMINAL PIN, #16-20 AWG
37
72175-07BK
HOUSING 4-WAY, PIN (BLACK)
38
72190-94
TERMINAL PIN, #16-18 AWG
39
72194-94
TERMINAL PIN, 20 AWG
40
72199-94
CONNECTOR ANCHOR
41
72209-11
COVER WIRE
42
72213-94
TERMINAL SOCKET, #16-20 AWG
43
72222-11
TERMINAL SOCKET #18-20 AWG
44
72226-11
TERMINAL SOCKET #14-16 AWG
45
72227-11
TERMINAL SOCKET, #18-20 AWG
46
72230-98
HOUSING 3-WAY SOCKET
47
72231-98
SECONDARY LOCK 3-WAY
48
72242-94
TERMINAL 1/4 RING
