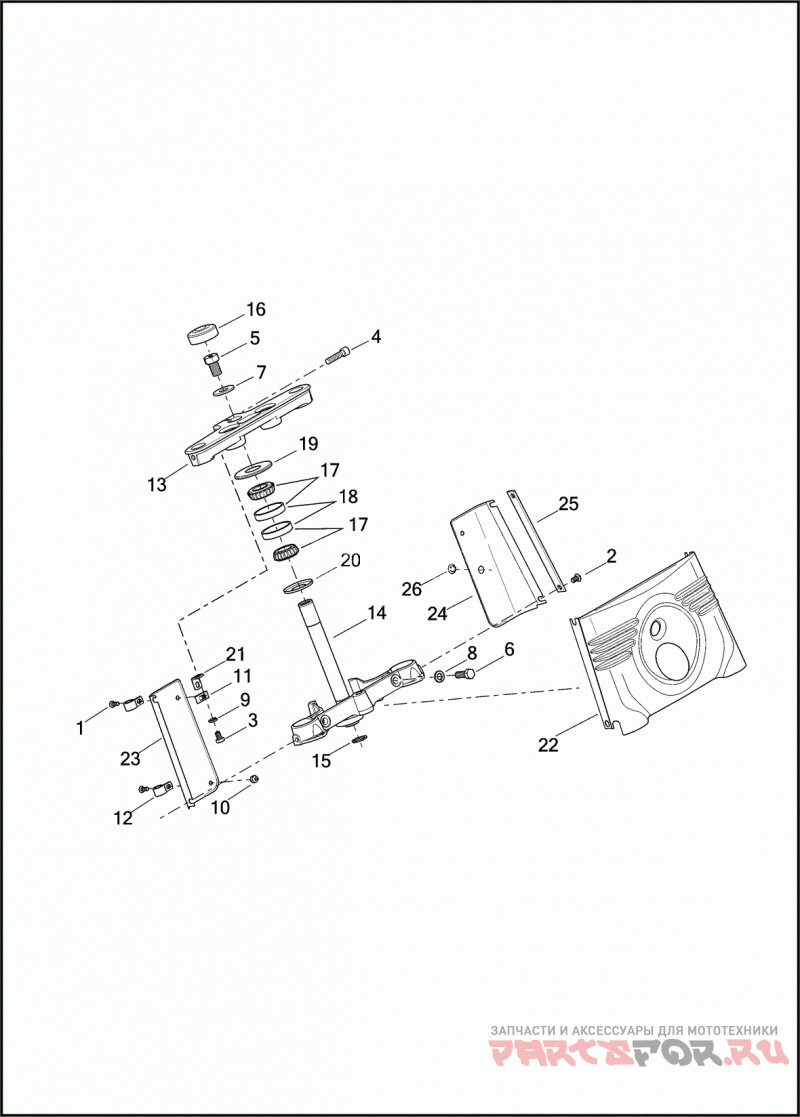

FORK BRACKETS, FRONT - FLS, FLSTC, FLSTF, FLSTFB & FLSTN

Harley Davidson FLSTC 103 1BWV HERITAGE SOFTAIL CLASSIC (2014)

Harley Davidson
#oem кодцена
1
941
SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)
3
3953W
BOLT 5/16-24 X 1/2 HEX HD. (GRADE 5)
4
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
5
4453
BOLT 1/4-20 X 7/8 HEX HD. SPECIAL WITH TAPPED HOLE
6
4945
SCREW 7/16-20 UNRF X 1-1/4 HEX HD. (ZINC PLATE)
7
6655
WASHER 5/8 X 1-1/2 X 7/64
8
7039
LOCKWASHER 7/16
9
7062
LOCKWASHER M8.4 X 13 X 1.2
10
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
11
8108
SPEEDNUT 1/4-20
12
10053
Зажим
13
45456-86B
BRACKET UPPER
14
45605-00A
STEM & BRACKET ASSEMBLY INCLUDING LOWER BEARING CONE
15
45611-86
RETAINING RING FORK STEM
16
45670-80A
CAP FORK STEM
17
48300-60
ROLLER BEARING W/ CUP
18
48315-60
BEARING CUP
19
48361-80
DUST SHIELD BEARING, UPPER
20
48365-48A
DUST SHIELD BEARING, LOWER
21
50991-86
BRACKET FRONT PANEL
22
67830-09
FRONT PANEL (CHROME)
23
67814-86
BACK PANEL RIGHT REAR (STAINLESS STEEL)
24
67821-87
BACK PANEL LEFT REAR W/ SWITCH HOLE (STAINLESS STEEL)
