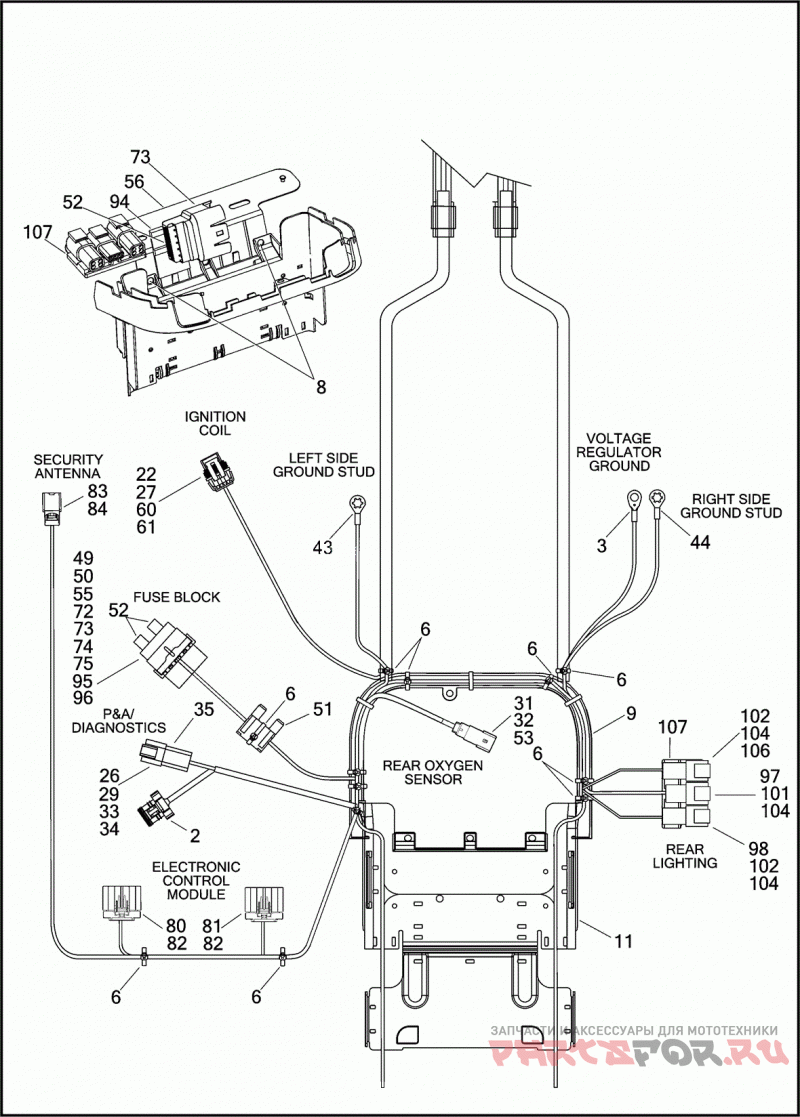

WIRING HARNESS, MAIN, NON-ABS - FLS (3 OF 5)

Harley Davidson FLS 103 1JRV SOFTAIL SLIM (2014)

Harley Davidson
#oem кодцена
69200318
WIRING HARNESS, MAIN (CONTINUED)
38
72222-11
TERMINAL SOCKET #18-20 AWG
39
72226-11
TERMINAL SOCKET #14-16 AWG
40
72227-11
TERMINAL SOCKET, #18-20 AWG
41
72230-98
HOUSING 3-WAY SOCKET
42
72231-98
SECONDARY LOCK 3-WAY
43
72242-94
TERMINAL 1/4 RING
44
72254-94
TERMINAL RING .25 STUD, #14-16 AWG
45
72256-11
SEAL PIN .6MM, PLUG
46
72283-09
TERMINAL FEMALE, #14-16 AWG
47
72291-94
TERMINAL #14-16 AWG
48
72295-94
HOUSING STARTER CONNECTION
49
72298-95
WIRE SEAL #14-18 AWG (GREEN)
50
72308-97
TERMINAL FEMALE, #12-14 AWG
51
72314-01
MAIN-FUSE 40 AMP
52
72330-95
FUSE 15 AMP (BLUE)
53
72343-10
TERMINAL PIN, #16-20 AWG (GOLD)
54
72350-11
HOUSING ONE-WAY
55
72356-95
TERMINAL SOCKET, #18-20 AWG
56
72369-08A
BRACKET FUSE BLOCK HOLDER,(BLACK)
57
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
58
72415-07GY
HOUSING 4-WAY PIN (GRAY)
59
72478-07BK
HOUSING 8-WAY PIN (BLACK)
60
72484-08
TERMINAL SOCKET, #20 AWG
