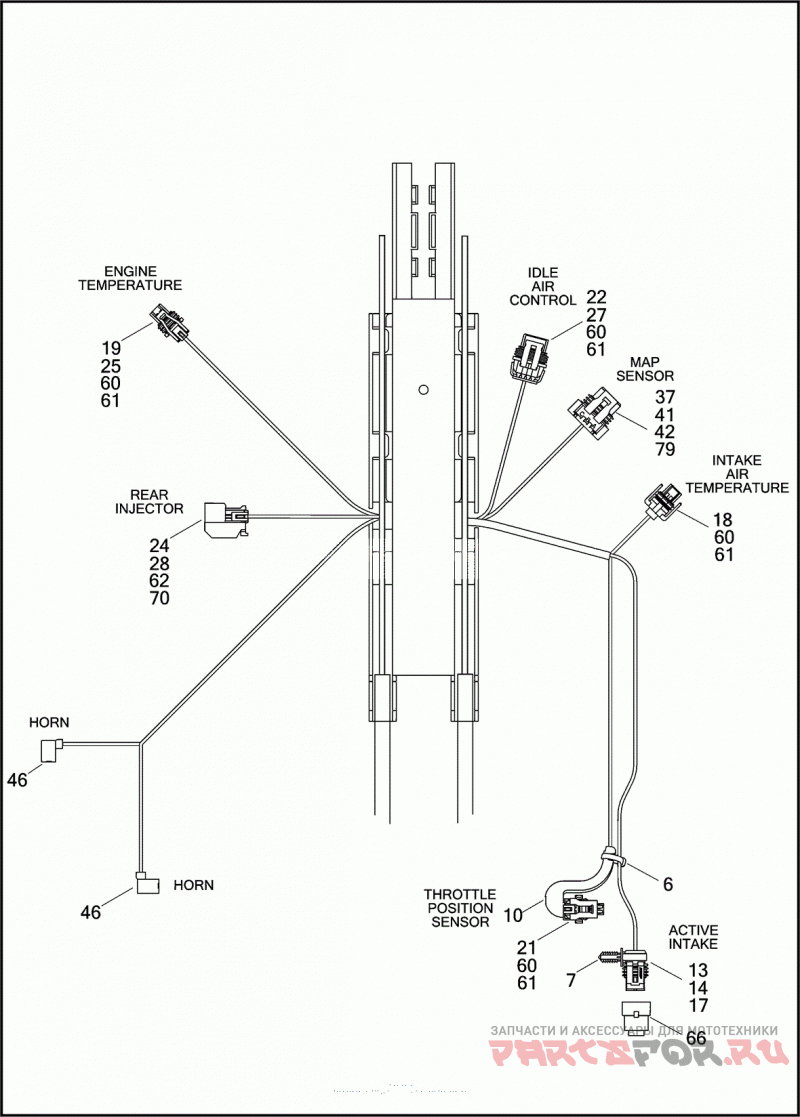

WIRING HARNESS, MAIN, NON-ABS - FLS (2 OF 5)

Harley Davidson FLS 103 1JRV SOFTAIL SLIM (2014)

WIRING HARNESS, MAIN, NON-ABS - FLS (2 OF 5)

#

oem код

название

цена

WIRING HARNESS, MAIN (CONTINUED)

WIRING HARNESS, MAIN (CONTINUED)

21

HOUSING 3-WAY SOCKET

HOUSING 3-WAY SOCKET

22

HOUSING 4-WAY SOCKET (BLACK)

HOUSING 4-WAY SOCKET (BLACK)

23

HOUSING 48-WAY SOCKET

HOUSING 48-WAY SOCKET

24

HOUSING 2-WAY SOCKET

HOUSING 2-WAY SOCKET

25

SECONDARY LOCK 2-WAY SOCKET (GRAY)

SECONDARY LOCK 2-WAY SOCKET (GRAY)

26

HOUSING 6-PIN (BLACK) (REPLACES GRAY CONNECTOR)

HOUSING 6-PIN (BLACK) (REPLACES GRAY CONNECTOR)

27

SECONDARY LOCK 4-WAY SOCKET (GRAY)

SECONDARY LOCK 4-WAY SOCKET (GRAY)

28

SECONDARY LOCK 2-WAY SOCKET (BLUE)

SECONDARY LOCK 2-WAY SOCKET (BLUE)

29

PIN LOCK SEC 6

PIN LOCK SEC 6

30

TERMINAL SOCKET, #18-20 AWG

TERMINAL SOCKET, #18-20 AWG

31

TERMINAL PIN, #16-20 AWG

TERMINAL PIN, #16-20 AWG

32

HOUSING 4-WAY, PIN (BLACK)

HOUSING 4-WAY, PIN (BLACK)

33

TERMINAL PIN, #16-18 AWG

TERMINAL PIN, #16-18 AWG

34

TERMINAL PIN, 20 AWG

TERMINAL PIN, 20 AWG

35

CONNECTOR ANCHOR

CONNECTOR ANCHOR

36

COVER WIRE

COVER WIRE

37

TERMINAL SOCKET, #16-20 AWG

TERMINAL SOCKET, #16-20 AWG
