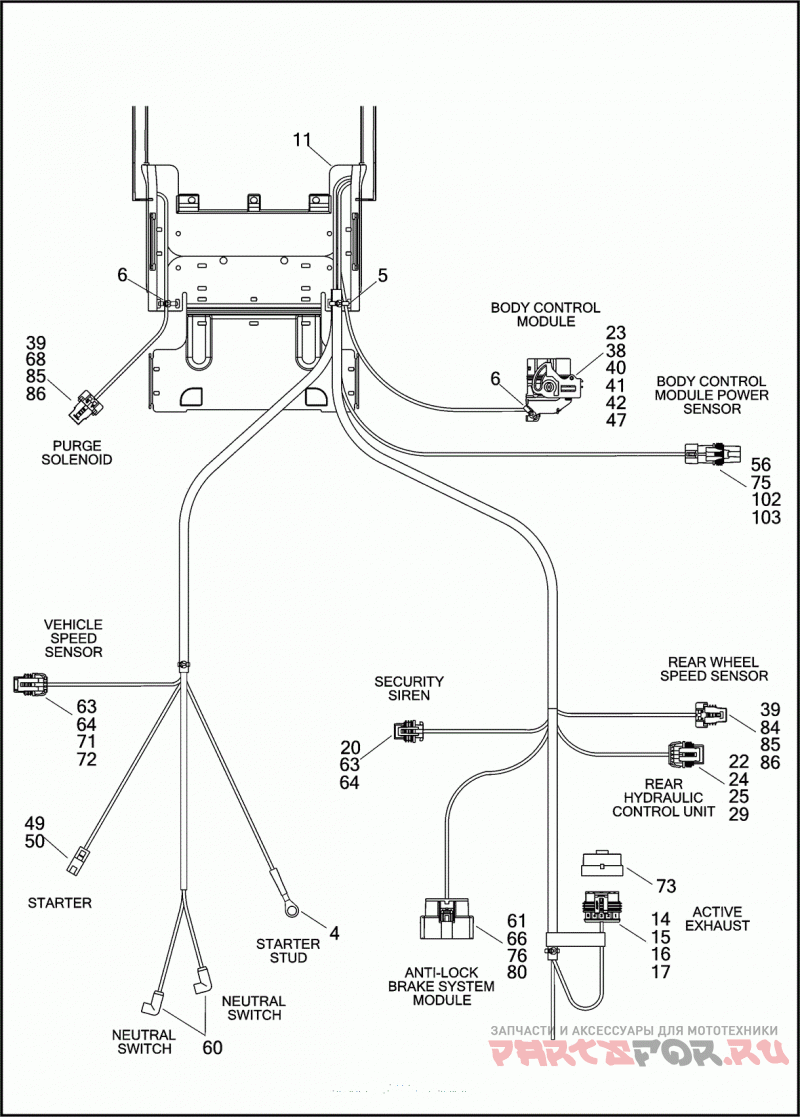

WIRING HARNESS, MAIN, ABS - FLS (4 OF 5)

Harley Davidson FLS 103 1JRV SOFTAIL SLIM (2014)

Harley Davidson
#oem кодцена
69200319
WIRING HARNESS, MAIN (CONTINUED)
65
72499-07
WIRE SEAL #20-22 AWG (GREEN)
66
72500-07ABK
HOUSING 20-WAY SOCKET (BLACK)
67
72512-07BK
HOUSING 3-WAY SOCKET (BLACK)
68
72518-01
HOUSING SOCKET, 2-WAY (RED)
69
72519-09BK
DUST CAP 3-WAY SOCKET
70
72533-06
DUST CAP 2-PIN
71
72543-07BK
HOUSING 3-WAY SOCKET (BLACK)
72
72544-07
SECONDARY LOCK 3-WAY FEMALE
73
72553-07
DUST CAP 5-PIN
74
72569-08
TERMINAL SOCKET, #20-22 AWG
75
72575-11
SECONDARY LOCK
76
72581-11
TERMINAL SOCKET, #18-20 AWG (GOLD)
77
72582-11
FUSE BLOCK MAIN/MINI
78
72586-11
COVER FUSE BLOCK, MAIN/MINI
79
72587-11
SECONDARY LOCK FUSE BLOCK, MAIN/MINI
80
72593-11
TERMINAL SOCKET, #14-16 AWG (GOLD)
81
72595-11
SEAL FUSE BLOCK, MAIN/MINI
82
72596-11
BRACKET ELECTRICAL CONNECTOR, RH
83
72597-11
BRACKET ELECTRICAL CONNECTOR, LH
84
72606-08
HOUSING 2-WAY SOCKET
85
72609-08
SECONDARY LOCK 2-WAY SOCKET (BLACK)
86
72610-08
SEAL CABLE, #18-20 AWG (WHITE)
87
72664-12A
HOUSING 18-WAY, SOCKET, KEY A (BLACK)
88
72665-12A
HOUSING 18-WAY SOCKET, KEY B (BLACK)
89
72666-12
TERMINAL SOCKET, #18-20 AWG (SILVER)
90
72720-07
HOUSING 2-WAY SOCKET
91
72721-07
TERMINAL SOCKET, #18-20 AWG
