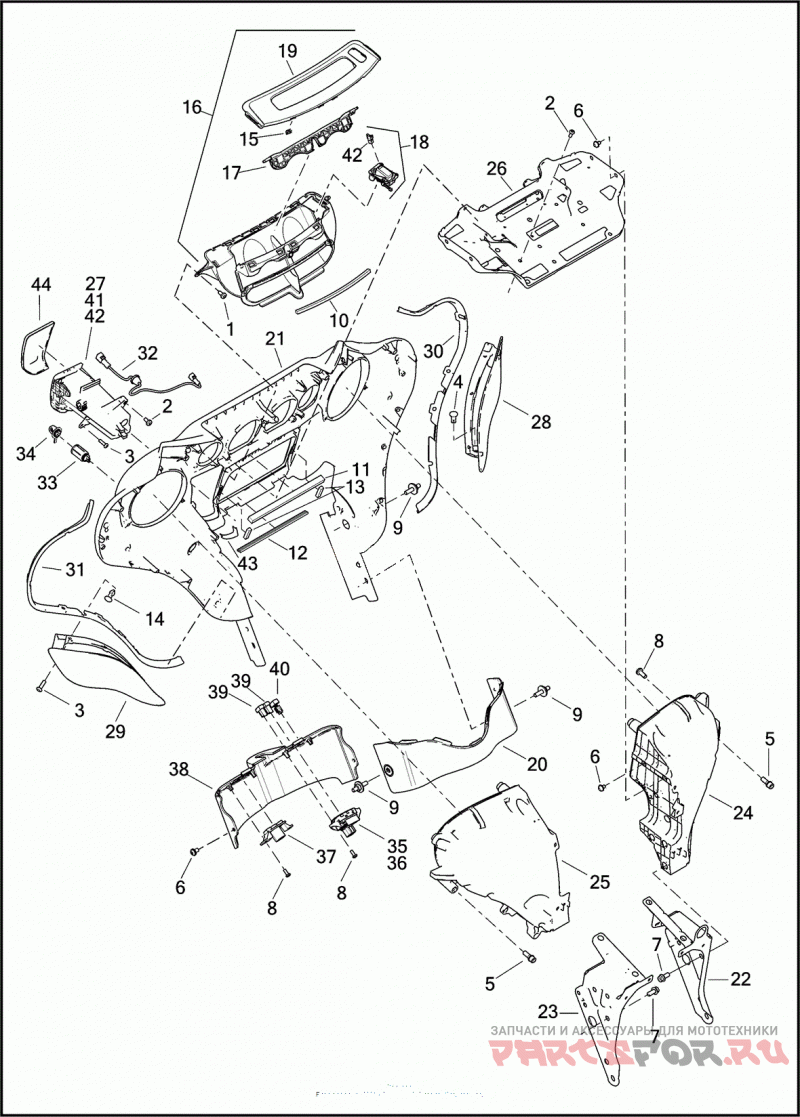

FAIRING, INNER - FLHTCU, FLHTK, FLHX & FLHXS

Harley Davidson FLHX 1KBM STREET GLIDE (2014)

Harley Davidson
#oem кодцена
1
2445
Деталь SCREW 1/4-20 X 9/16 BUTTON HD.
2
2478
Деталь SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
5
10200134
Деталь SCREW 1/4-20 X 3/4 HEX SOCKET HD. (GRADE 8) (ZINC)
6
10200141
Деталь SCREW 1/4-20 X 1/2 HEX SOCKET BUTTON HD. (ZINC)
7
10200142
Деталь SCREW 5/16-18 X 3/4 HEX FLANGE W/ INTERNAL HEX SEMS, HARDENED (ZINC)
8
10200205
Деталь SCREW NO. 10 X 1/2 PAN HD. TORX, HARDENED (ZINC)
9
10900005
Деталь STUD DOUBLE SIDED
10
11100038
Деталь FOAM TAPE
11
11100050
Деталь FOAM TAPE
12
11100051
Деталь FOAM TAPE
13
11100057
Деталь FOAM TAPE
14
12100034
Деталь PLUG AIR DEFLECTOR HOLE
15
12200064
Деталь CLIP PANEL
16
29200003
Деталь AIR DUCT INNER FAIRING, W/ 10, 15, 17, 18, 19 & 42
17
29200034
Деталь DOOR INNER DUCT
18
29200035
Деталь BUTTON ASSEMBLY INNER DUCT, W/ 76000127
19
29200039
Деталь BEZEL AIR DUCT,INNER FAIRING, W/ 12200064
20
57000017
Деталь SKIRT OUTER FAIRING (CHROME)
21
57000065BYM
Деталь INNER FAIRING ASSEMBLY W/ 11100050, 11100051, 11100057, 61400063, 61400064 & 76000234
22
57000169
Деталь BRACKET FAIRING SUPPORT, LEFT
23
57000170
Деталь BRACKET FAIRING SUPPORT, RIGHT
24
57000172
Деталь SPEAKER ENCLOSURE ASSEMBLY LEFT
25
57000175
Деталь SPEAKER ENCLOSURE ASSEMBLY RIGHT
26
57000186
Деталь BRACKET SUPPORT, INNER FAIRING
27
57000299
Деталь FOAM INSERT MEDIA COMPARTMENT
30
61400063
Деталь TRIM INNER FAIRING, LEFT
31
61400064
Деталь TRIM INNER FAIRING, RIGHT
32
69200031
Деталь WIRE HARNESS USB JUMPER
33
69200170
Деталь POWER OUTLET FAIRING, W/ 69200171
34
69200171
Деталь CAP POWER OUTLET
37
70900138
Деталь HOLE PLUG FAIRING CAP
38
70900392BYM
Деталь DASH PANEL FAIRING
41
76000107
Деталь MEDIA COMPARTMENT ASSEMBLY W/ 57000299, 69200031 & 76000127
42
76000127
Защёлка
43
76000234
Деталь GASKET MEDIA STORAGE
44
76000409BYM
Деталь DOOR MEDIA COMPARTMENT, OUTER
