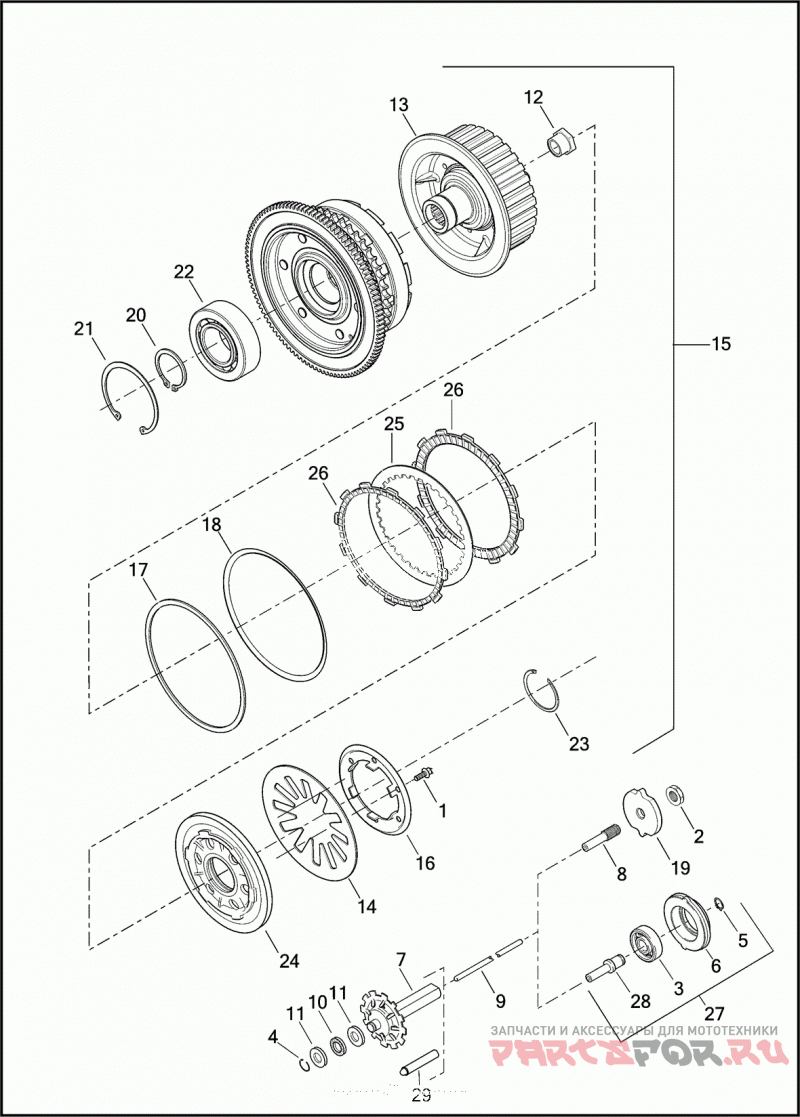

CLUTCH - TWIN CAM 103™

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2014)

Harley Davidson
#oem кодцена
1
2980
SCREW M6 X 1 X 16MM HEX FLANGE HD.
3
8885
Подшипник
4
11096
Стопорное кольцо
5
11143
RING RETAINING, EXTERNAL
6
36731-91
RELEASE PLATE ASSEMBLY CLUTCH, W/ 8885
7
37069-90A
OIL SLINGER ASSEMBLY
9
37092-06
PUSHROD CLUTCH RELEASE
10
37312-75
BEARING PUSHROD
11
37313-80
BEARING THRUST RACE
12
37496-90A
NUT MAINSHAFT
13
37554-11
HUB ASSEMBLY CLUTCH
14
37807-03
SPRING CLUTCH (PINK)
15
37817-11
CLUTCH ASSEMBLY W/ 1, 13, 14, 16, 17, 18, 20, 21, 22, 24, 25 & 26
16
37872-00
SEAT CLUTCH SPRING
17
37883-98
SEAT DAMPER SPRING
18
37884-98
DAMPER SPRING
20
37904-90
Стопорное кольцо
21
37905-00
RETAINING RING INTERNAL
22
37906-11
BEARING BALL
23
37909-90
RETAINING RING INTERNAL
24
37912-00
PRESSURE PLATE CLUTCH
25
37913-98
PLATE CLUTCH
26
37932-98
FRICTION PLATE KIT W/ NINE FRICTION PLATES
27
37000111
CLUTCH PLATE ASSEMBLY W/ 11143. 36731-91 & 37000112
28
37000112
PUSHROD CLUTCH RELEASE PLATE
29
37000113
ROD END CLUTCH
