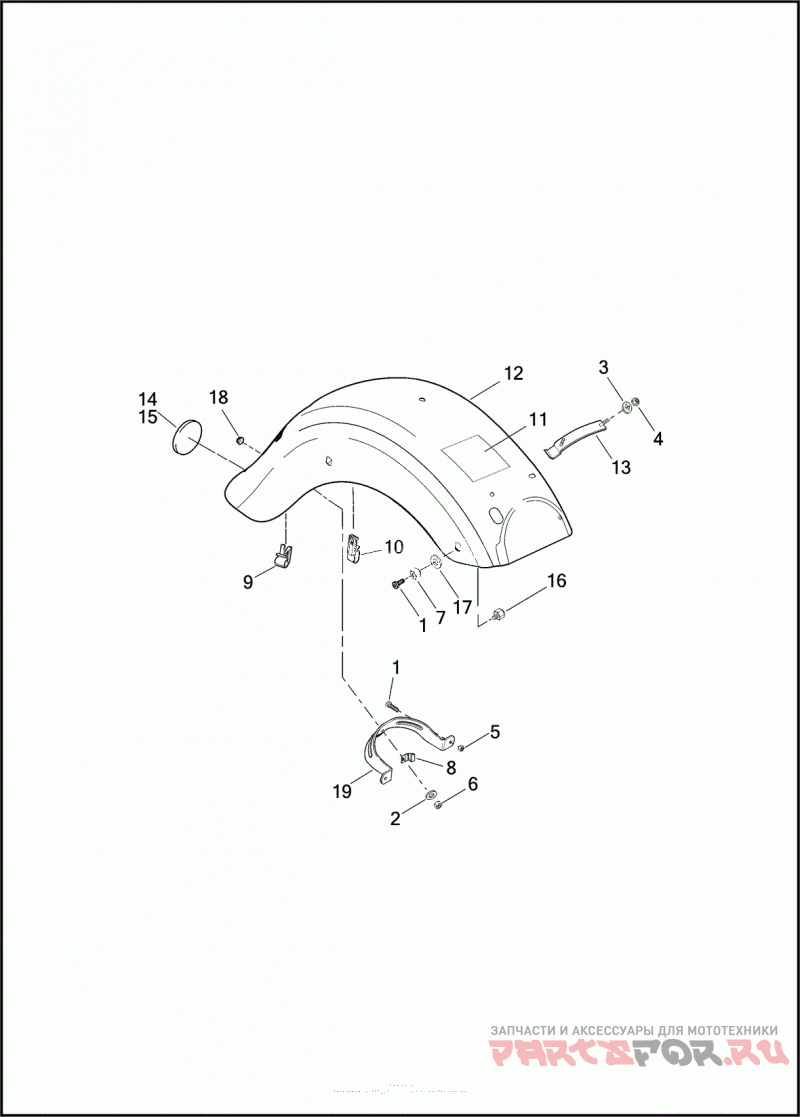

FENDER, REAR

Harley Davidson FLHTK 103 1TEL CVO LIMITED (2014)

Harley Davidson
#oem кодцена
1
3684
SCREW 5/16-18 X 1 TORX PAN HD.
2
6703
WASHER 1/4 X 5/8 X 1/16
3
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
4
7499
NUT 1/4-20 LARGE FLANGE
5
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
7
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
8
10053
CLAMP (DOMESTIC)
9
10183
CLIP T-STUD
10
10184
CLIP T-STUD
11
48421-04
TAPE
12
58702-09
FENDER REAR (PRIME)
12
59500137CZB
FENDER REAR, W/ 48421-04, NUT & WASHER (STARDUST SILVER)
12
59500137DQX
FENDER REAR, W/ 48421-04, NUT & WASHER (BURGUNDY BLAZE)
12
59500137DRS
FENDER REAR, W/ 48421-04, NUT & WASHER (JUPITER BLUE)
13
59174-99
PLATE STUD
14
59424-10
MEDALLION REAR FENDER (DOMESTIC)
15
59581-05
BUMPER REAR FENDER (BLACK) (HDI)
16
59786-01
BOSS FENDER MOUNTING, INNER
17
59788-01
Шайба
18
67266-94
GROMMET 1/2 IN. I.D. (NYLON)
19
91140-09
BRACKET FENDER TO SADDLEBAG SUPPORT
