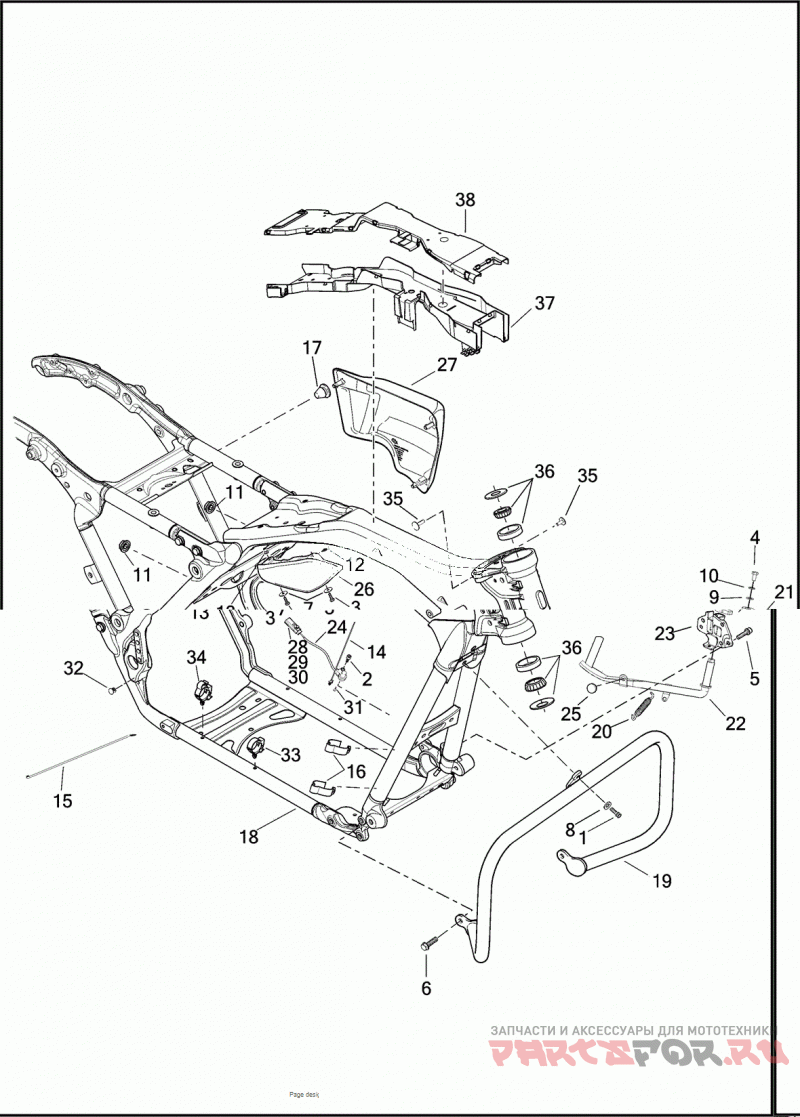

FRAME & JIFFY STAND

Harley Davidson FLHTCU TC 1KSL ULTRA CLASSIC TWIN-COOLED (2014)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
6
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
7
6036
WASHER 17/64 X 1 X 1/16
8
6116
WASHER 5/16 X 16/16 X 1/8
9
6702
WASHER 5/16 X 11/16 X 1/16
10
7041
LOCKWASHER 5/16
11
7495
NUT M6 FLANGE
12
8108
SPEEDNUT 1/4-20
13
8194
NUT SPECIAL
14
10177
CABLE STRAP TREE MOUNT, JIFFY STAND (ENGLAND, HDI)
15
10039
CABLE STRAP
16
10264
CLIP CLUTCH LINE
17
11650
GROMMET SIDE COVER
18
47900-14BHP
FRAME MAIN, W/ BEARING CUPS (ALSO ORDER 45700009)
19
49184-09A
ENGINE GUARD W/ 2708A, 6116 & 14148-86
20
49725-07A
SPRING JIFFY STAND
21
50015-74A
LEG STOP
22
50075-07A
LEG JIFFY STAND
23
50096-09
BRACKET JIFFY STAND LEG
24
50126-08A
SENSOR JIFFY STAND, W/ 72169-07, 72511-07BK & 73213-07 (ENGLAND, HDI)
25
50245-07
BUMPER JIFFY STAND LEG
26
58167-09A
DEFLECTOR AIR (RIGHT)
26
58169-09
DEFLECTOR AIR, LEFT
27
66048-09A
SIDE COVER RIGHT (UNPAINTED)
27
66250-09
SIDE COVER LEFT (UNPAINTED)
28
72169-07
TERMINAL PIN, 16-20 AWG (ENGLAND, HDI)
29
72511-07BK
HOUSING PIN, 3-WAY (BLACK) (ENGLAND, HDI)
30
73213-07
RETAINER XMAS TREE CLIP (ENGLAND, HDI)
31
90520-07
HOLE PLUG JIFFY STAND (EXCEPT ENGLAND, HDI)
32
90329-98
PLUG (BLACK)
33
10800024
CLIP CONDUIT, ROSEBUD MOUNT
34
10800025
CLIP CONDUIT, ROSEBUD MOUNT
35
12600067
FASTENER PLASTIC
36
45700009
BEARING KIT STEERING HEAD, W/ BEARING CUPS, BEARING CONES & DIRT GUARDS
37
69200202A
WIRE TROUGH
38
69200203A
COVER WIRE TROUGH, WITH 15368-01A AND 69201459
