WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (8 OF 8) для мотоциклов Harley Davidson FLHR 1FBM ROAD KING (2014) (2014)

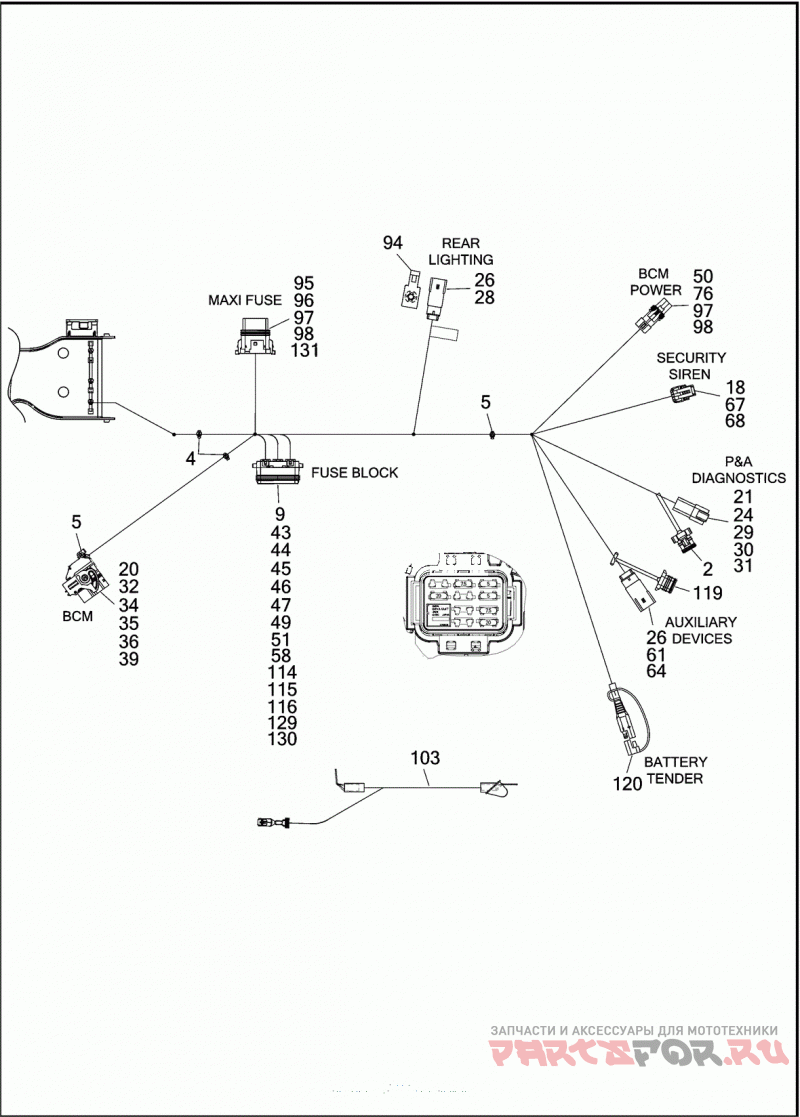

WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (8 OF 8)

Harley Davidson FLHR 1FBM ROAD KING (2014)

WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (8 OF 8)

oem код

название

цена

69200112

MAIN WIRING HARNESS - ABS

116

69200199

COVER FUSE BLOCK

117

69200202A

WIRE TROUGH

118

69200203A

COVER WIRE TROUGH, WITH 15368-01A AND 69201459

119

69200204

WEATHER PLUG 8-WAY PIN

120

69200212

HOUSING 2-WAY

121

69200220

HOUSING 2-WAY SOCKET

122

69200221

TERMINAL SOCKET, 16-18 AWG

123

69200222

WIRE SEAL 16 AWG

124

69200238

TERMINAL 20 AWG (BLACK)

125

69200267A

HOUSING 18-WAY, SOCKET, KEY B (GRAY)

126

69200268A

HOUSING 18-WAY, SOCKET, KEY C (BROWN)

127

69200284

BRACKET MOUNTING

128

69200285

BRACKET MOUNTING

129

69200293

FUSE 7.5-AMP, MINI (BROWN)

130

69200312

SECONDARY LOCK 24-WAY FUSE BLOCK

131

69200336

MAIN FUSE 50 AMP (RED), NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS

132

69200437

RUBBER BOOT WIRE CONNECTOR

133

11100115

CLOTH, HARNESS WRAP 50M (NOT SHOWN)
