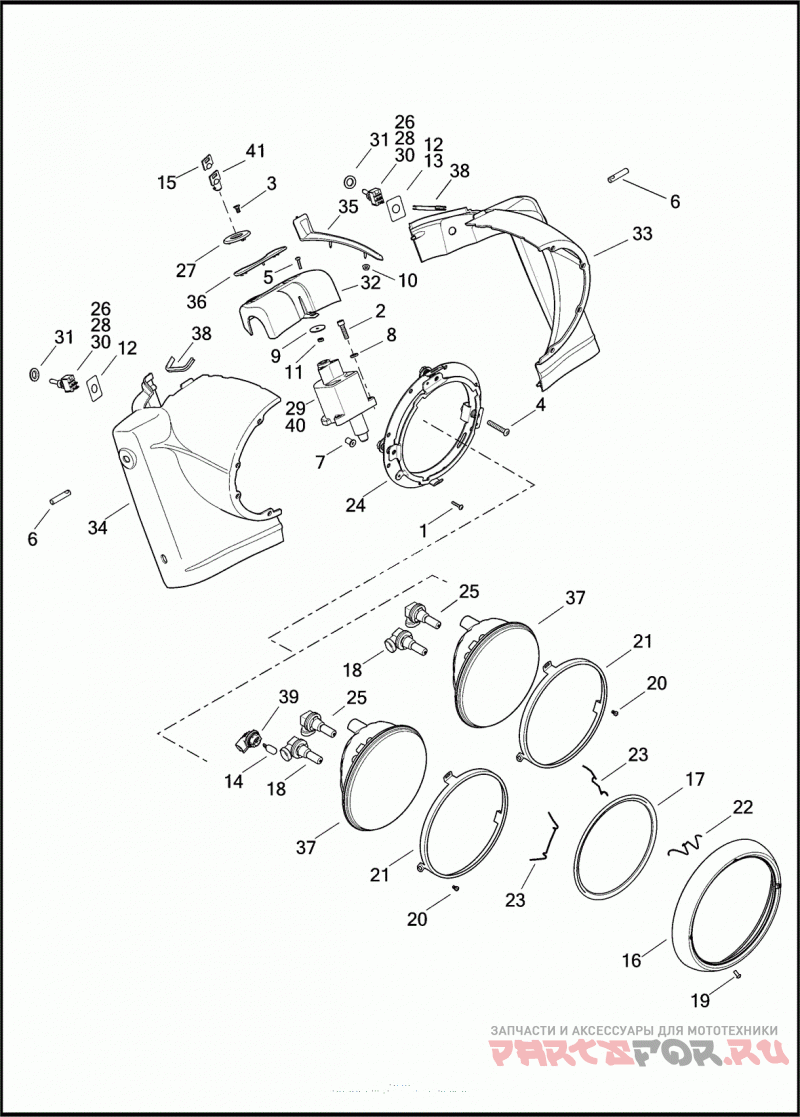

NACELLE & HEADLAMP - FLHR & FLHRC

Harley Davidson FLHR 1FBM ROAD KING (2014)

Harley Davidson
#oem кодцена
1
787
Винт
2
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
3
2933
SCREW NO. 10-24 X 1/2 FLAT HD.
4
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
5
3225
BOLT NO. 6 X 5/8 LONG PHILLIPS PAN HD. (ZINC)
6
3265A
Шпилька
7
5210
WELL NUT
8
6150W
WASHER 3/16 X 3/8 X 1/16
9
6789
WASHER NO. 6 X 7/8 X .05
10
7888A
NUT NO. 6-32 FLANGE HD.
11
7889
NUT NO. 6-32 KEPS
12
14019-83A
LABEL ON/OFF SWITCH (DOMESTIC)
15
61081-92
COVER KEY-HEAD, SET OF 2
16
67712-83B
TRIM RING HEADLAMP
17
67716-60C
GASKET HEADLAMP DOOR
18
67717-01
BULB HIGH BEAM HALOGEN
19
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
20
67721-48
SCREW HEADLAMP RETAINER RING
21
67726-08
Стопорное кольцо
22
67778-60A
SPRING TRIM RING, HEADLAMP, TOP
23
67780-60A
SPRING TRIM RING, HEADLAMP, BOTTOM
24
68124-04B
MOUNTING RING ASSEMBLY W/ 3088
25
68881-01
BULB LOW BEAM HALOGEN
26
70292-89
SOCKET HOUSING 4-PLACE
27
71310-94
TRIM ASSEMBLY FORK LOCK
28
71522-08
SWITCH AUXILIARY LAMP & ACCESSORIES, W/ 70292-89 & 72038-71A (EXCEPT JAPAN)
28
71565-08
SWITCH ILLUMINATED, W/ 70292-89 & 72038-71A (JAPAN)
29
71540-94B
FORK LOCK (SPECIFY KEY NUMBER)
30
72038-71A
TERMINAL SOCKET
31
74408-08A
DRESS NUT (CHROME)
32
55800091
COVER HANDLEBAR (CHROME)
33
61300095
NACELLE LEFT (CHROME)
34
61300096
NACELLE RIGHT (CHROME)
35
61400077
TRIM NACELLE (CHROME)
36
61400159
INSERT HANDLEBAR COVER
37
67700062
HEADLAMP ASSEMBLY W/ 67717-01 & 68881-01(DOMESTIC)
38
67700105
Планка
40
71400010A
LOCKSET COMPLETE, WITH KEYS, IGNITION KNOB, FORK LOCK AND SADDLEBAG LOCKS
