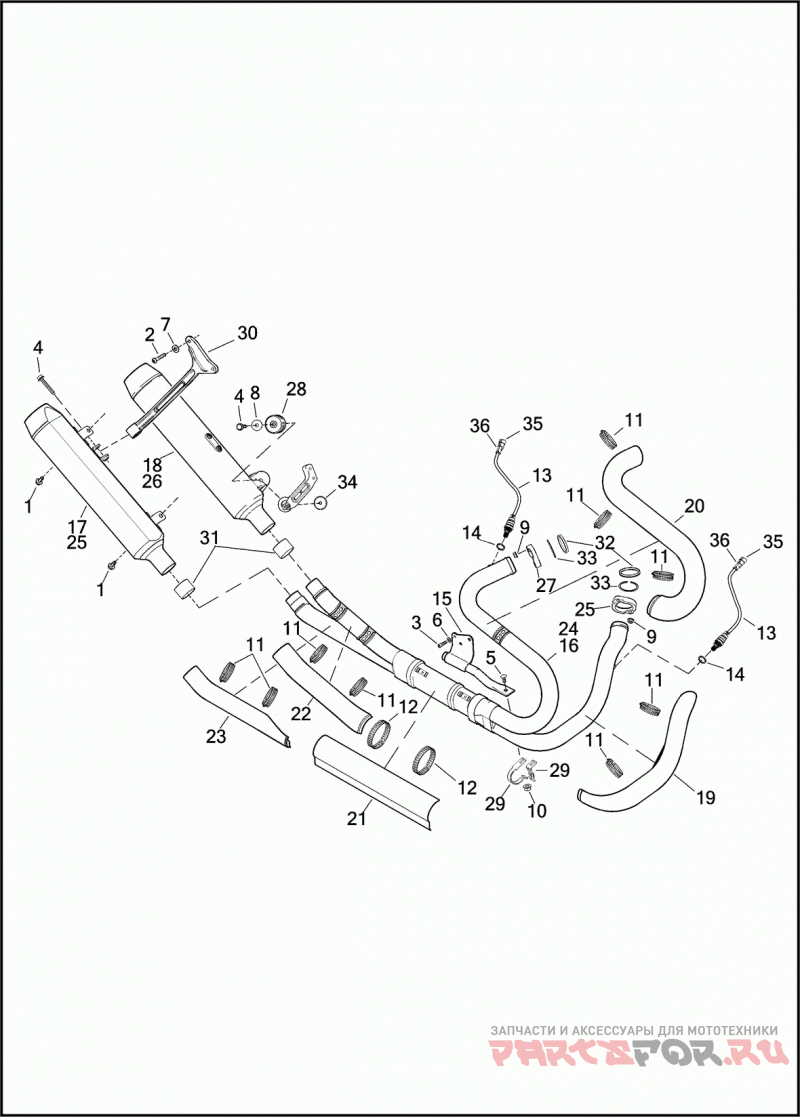

EXHAUST SYSTEM - XR1200X

Harley Davidson XR1200X 1LD6 XR1200X (2013)

Harley Davidson
#oem кодцена
1
4269
SCREW 5/16-18 X 3/4, FLANGE HD.
2
4549
SCREW 5/16-18 X 1-3/4 TORX BUTTON HD. (GRADE 5)
3
4748
SCREW 3/8-16 X 1-1/8 SOCKET HD. (GRADE 8)
4
4859
SCREW 5/16-18 X 2.0 HEX FLANGE HD.
5
5416
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5)
6
6701
WASHER 3/8 X 13/16 X 1/16
7
6702
WASHER 5/16 X 11/16 X 1/16
8
6930
WASHER 0.344 X 1-1/8 X 0.078 HEAT TREATED
9
7593
NUT 5/16-24 FLANGE
10
7601
LOCKNUT 3/8-16 FLANGE
11
9955
CLAMP HEAT SHIELD
12
9956
CLAMP HEAT SHIELD
13
27690-08
SENSOR OXYGEN, W/ 27714-06, 72009-05, 72011-05
14
27714-06
Уплотнительное Кольцо
15
64850-08
SUPPORT BAR ASSEMBLY EXHAUST
16
64965-08A
EXHAUST ASSEMBLY
17
65218-10
MUFFLER LOWER (BLACK)
18
65219-10
MUFFLER UPPER (BLACK)
19
65168-10
HEAT SHIELD LOWER (BLACK)
20
65176-10
HEAT SHIELD UPPER (BLACK)
21
65189-10
SHIELD COLLECTOR (BLACK)
22
65197-10
EXHAUST SHIELD ASSEMBLY UPPER (BLACK)
23
65198-10
EXHAUST SHIELD ASSEMBLY LOWER (BLACK)
24
64851-09
EXHAUST ASSEMBLY
25
65218-10
MUFFLER LOWER (BLACK)
26
65219-10
MUFFLER UPPER (BLACK)
27
65328-83A
FLANGE EXHAUST PIPE
28
65240-08
KIT EXHAUST ISOLATOR W/ 4859, 6930 & 65453-08
29
65257-08
Зажим
30
65316-08
SUPPORT MUFFLER, REAR
31
65317-08A
GASKET MUFFLER INLET
32
65324-83B
GASKET EXHAUST PORT
33
65325-83A
RETAINING RING EXHAUST GASKET
34
65453-08
WASHER SNUBBING
35
72009-05
HOUSING 2-WAY PIN
36
72011-05
WIRE SEAL 16-20 GAUGE (YELLOW)
