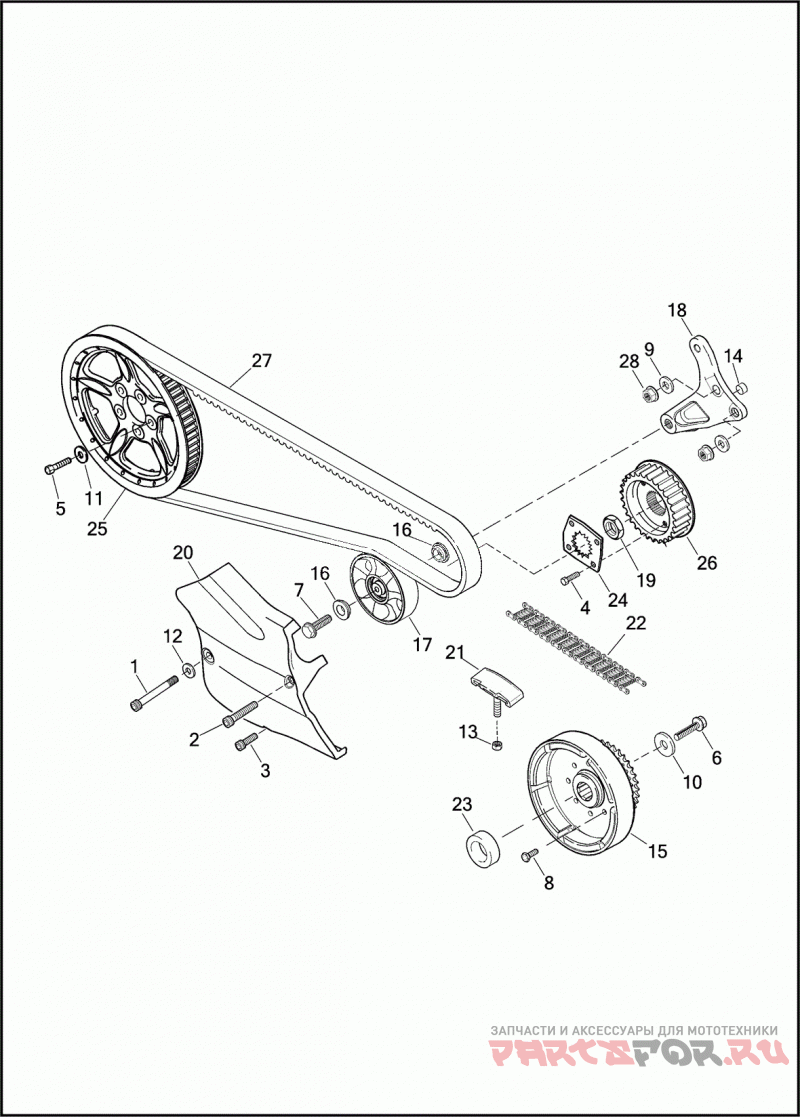

BELT & SPROCKETS - XR1200X

Harley Davidson XR1200X 1LD6 XR1200X (2013)

Harley Davidson
#oem кодцена
1
675
SCREW 3/8-16 X 3-1/4 SOCKET HD.
2
1753
SCREW NO. 1/4-20 X 3.0 HEX SOCKET
3
3480A
SCREW 1/4-20 X 1-3/4 KNURLED HD. (GRADE 8)
4
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
5
3899
SCREW 7/16-14 X 1-3/4 HEX HD., W/LOCKPATCH
6
4589
SCREW 9/16-12 X 2-5/16 HEX FLANGE HD.
7
4678
SCREW 1/2-13 X 1-3/4 HEX FLANGE
8
4751
SCREW 1/4-20 X 3/4 HEX HD., W/LOCKPATCH (GRADE 8) (ZINC)
9
6400HB
WASHER 5/16 X 13/16 X 3/32
10
6445
WASHER 1/2 X 2 X 0.300
11
6516HW
WASHER 7/16 X 1-1/8 X 1/8
12
6701
WASHER 3/8 X 13/16 X 1/16
13
7804
LOCKNUT 1/2-13 X 15/32 X 7/8 SELF-SEALING
14
9704
DOWEL PIN IDLER LOCATING
15
30018-08
ROTOR SPROCKET ASSEMBLY W/ 4751 & SPROCKET
16
31630-08
Втулка
17
31698-08
Поддерживающая ось
18
31699-08
BRACKET ASSEMBLY IDLER, W/ 9704
18
31602-08
IDLER WHEEL KIT W/ 7, 9, 14, 16, 17, 18, & 28
19
35211-91B
NUT 1-1/2-24 X .350 X 1-7/8 HEX HD.
20
37716-10
SPROCKET COVER (BLACK)
21
40039-02C
CHAIN ADJUSTER ASSEMBLY
22
40057-08
PRIMARY CHAIN 94 LINKS
23
40254-02
Проставка
24
40251-92A
RETENTION PLATE
25
40350-07
SPROCKET BELT - 68T (BLACK)
26
40379-04
SPROCKET TRANSMISSION - 28T
27
40591-07
BELT 137T
28
DA0600.12FAZB
LOCKNUT 3/8-24 FLANGE (GRADE 5)
