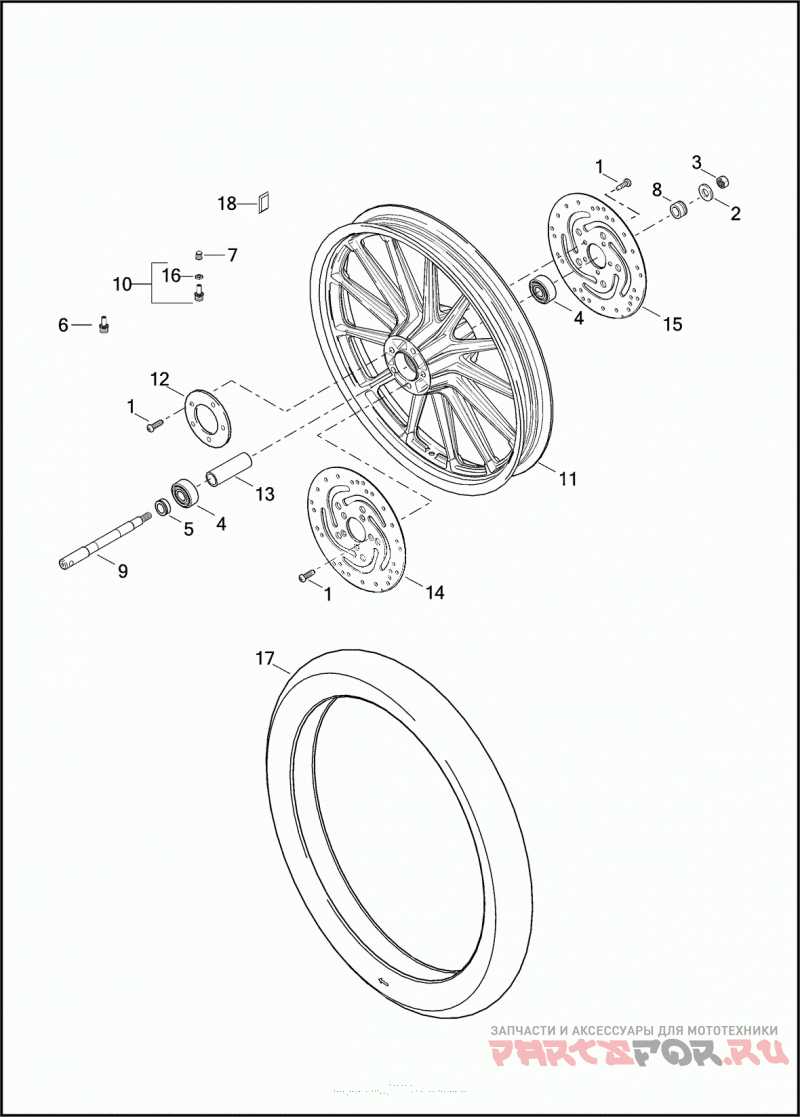

WHEELS, FRONT, CAST - 883L/N/R, 1200C/CA/CP

Harley Davidson XL883L 4CR2 SUPERLOW (2013)

Harley Davidson
#oem кодцена
1
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
2
6594
WASHER 5/8 X 1-1/8 X 3/32
3
7813A
NUT 5/8-18 X 9/16 X 15/16 (GRADE 2)
4
9276A
BALL BEARING 25MM
5
11804
SPACER RIGHT
7
41123-79
VALVE CAP
8
41242-08
SPACER LEFT
9
41628-08
Мост
10
43157-83A
VALVE STEM ASSEMBLY W/ 54321-85
11
43689-11
WHEEL ASSEMBLY 18 IN. (5 SPOKE) (BLACK) W/O BEARINGS & SLEEVES (NOT SHOWN)
12
43359-00
HUB PLATE (SILVER)
13
11888
Проставка
15
44156-00
BRAKE DISC LEFT
16
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
17
40879-11A
TIRE
18
95595-84B
WHEEL WEIGHT 5 grams (plain)
