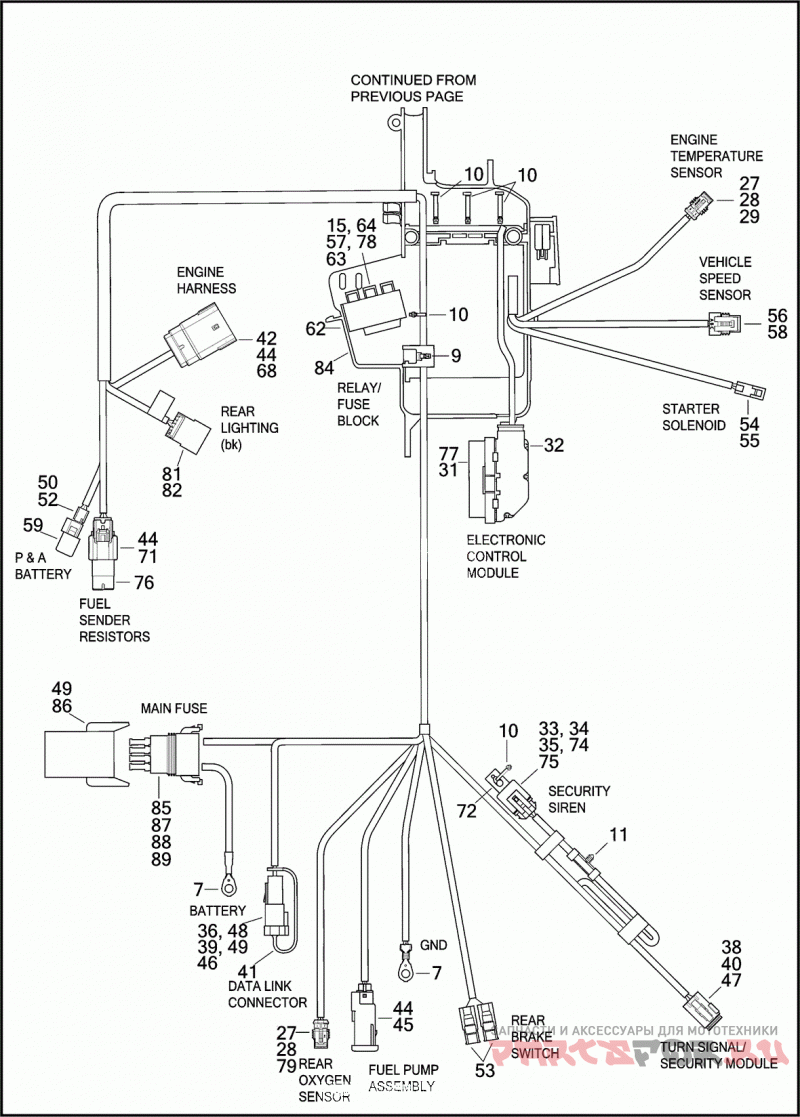

WIRING HARNESS, MAIN - 883L/N/R, 1200C/CA/CB/CP/V/X (3 OF 4)

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2013)

Harley Davidson
#oem кодцена
50
69200317
WIRING HARNESS MAIN (CONTINUED)
51
72272-07
TERMINAL SOCKET, 14-16 GAUGE
52
72289-04
TERMINAL FEMALE, 10-12 GAUGE
53
72290-94
TERMINAL INSULATED
54
72291-94
TERMINAL FEMALE SPADE, 14-16 GAUGE
55
72295-94
TERMINAL HOUSING 1-WAY
56
72312-04
HOUSING SOCKET, 3-WAY
57
72330-95
FUSE 15 AMP
58
72335-10
TERMINAL SOCKET, 20-22 GAUGE
59
72378-04
CAP RED
60
72405-98BK
PUSH ON WIRE ASSEMBLY RIGHT ANGLE MOLDED, W/ 60 IN. WIRE LEAD (BLACK)
61
72414-07BK
HOUSING SOCKET, 6-WAY (BLACK)
62
72430-00
FUSEBLOCK MOUNTING RELAY, 9 FUSES
63
72434-00
TERMINAL 14-16 GAUGE
64
72441-04
TERMINAL 12-14 GAUGE
65
72445-99TN
TERMINAL FEMALE (TAN)
66
72484-08
TERMINAL SOCKET, 20 GAUGE
67
72469-07GY
HOUSING SOCKET, 8-WAY (GRAY)
68
72473-07
SEAL PIN
69
72486-08
WIRE SEAL 20 GAUGE (GREEN)
70
72487-07BK
HOUSING SOCKET, 12-WAY (BLACK)
71
72512-07BK
HOUSING SOCKET, 3-WAY (BLACK)
72
72516-01
DUSTCAP
73
72519-09BK
DUSTCAP 3-WAY SOCKET
74
72543-07BK
SOCKET HOUSING 3-WAY (BLACK)
75
72544-07
SECONDARY LOCK 3-WAY, FEMALE
