HEADLAMP - 883L/N/R, 1200X, XR1200X для мотоциклов Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2013) (2013)

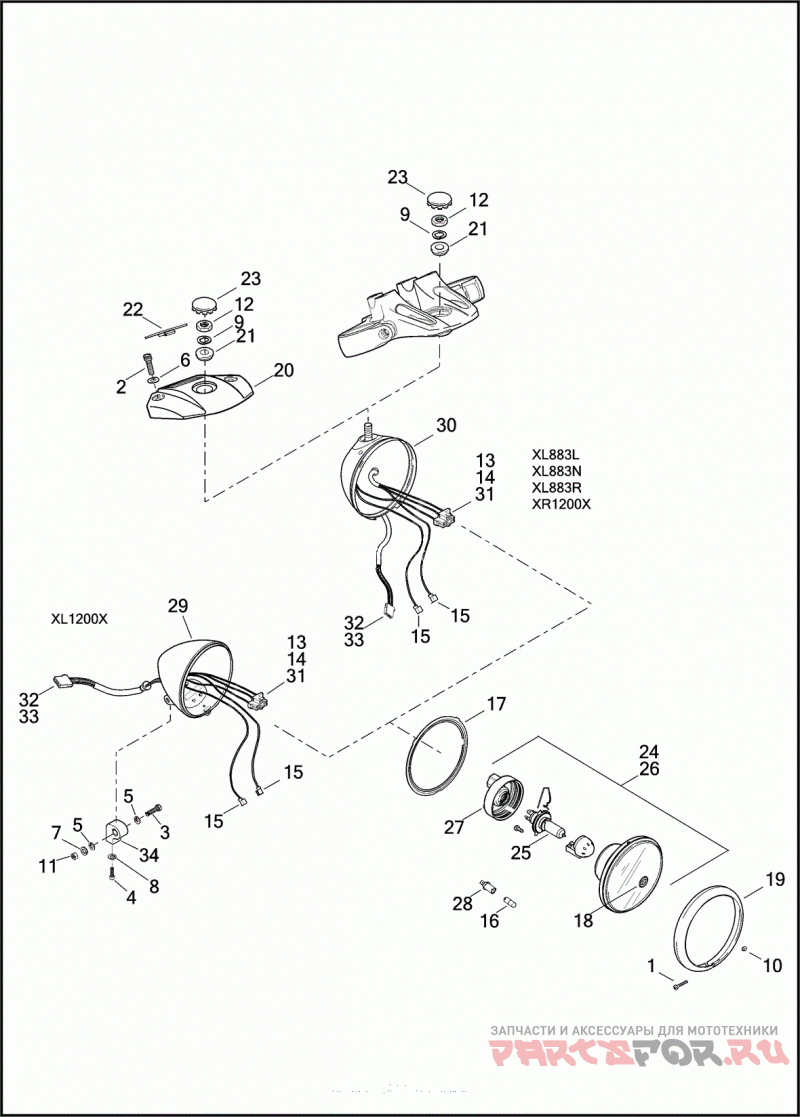

HEADLAMP - 883L/N/R, 1200X, XR1200X

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2013)

oem код

название

цена

3514

SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)

4724

BOLT 3/8-24 X 1-1/2 HEX HD. (GRADE 5)

4748

SCREW 3/8-16 X 1-1/8 SOCKET HD. (GRADE 8)

6701

WASHER 3/8 X 13/16 X 1/16

7038

LOCKWASHER 3/8

7045

LOCKWASHER 3/8 HIGH COLLAR

7073

LOCKWASHER 1/4 EXTERNAL TOOTH

7230

LOCKWASHER 1/4 EXTERNAL TOOTH

7606

LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)

7716

LOCKNUT 1/4-20 X 7/16 FLANGE

7800W

NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)

CONNECTOR RIGHT

CONNECTOR LEFT

TERMINAL FLAG

BULB

ADAPTER RING

MEDALLION

BEZEL (CHROME)

LAMP ASSEMBLY WITH 15, 21, 22

68329-03

BULB

68335-05A

LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)

68341-05A

LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)

68380-05

чехол

68653-05

SOCKET BULB (2 SPADE)

73264-10

HEADLAMP SHELL W/ 13, 14, 15, 31, 32, 33 (BLACK)

67700094

HEADLAMP SHELL W/ 13, 14, 15, 31, 32, 33, 7073, 7230 & 7716 (INDIA) (NOT SHOWN)

72056-92

HOUSING FEMALE

73154-96BK

SOCKET HOUSING 4-WAY (BLACK)

73191-96

SOCKET TERMINAL 16-20 AWG

73266-10

MOUNT
