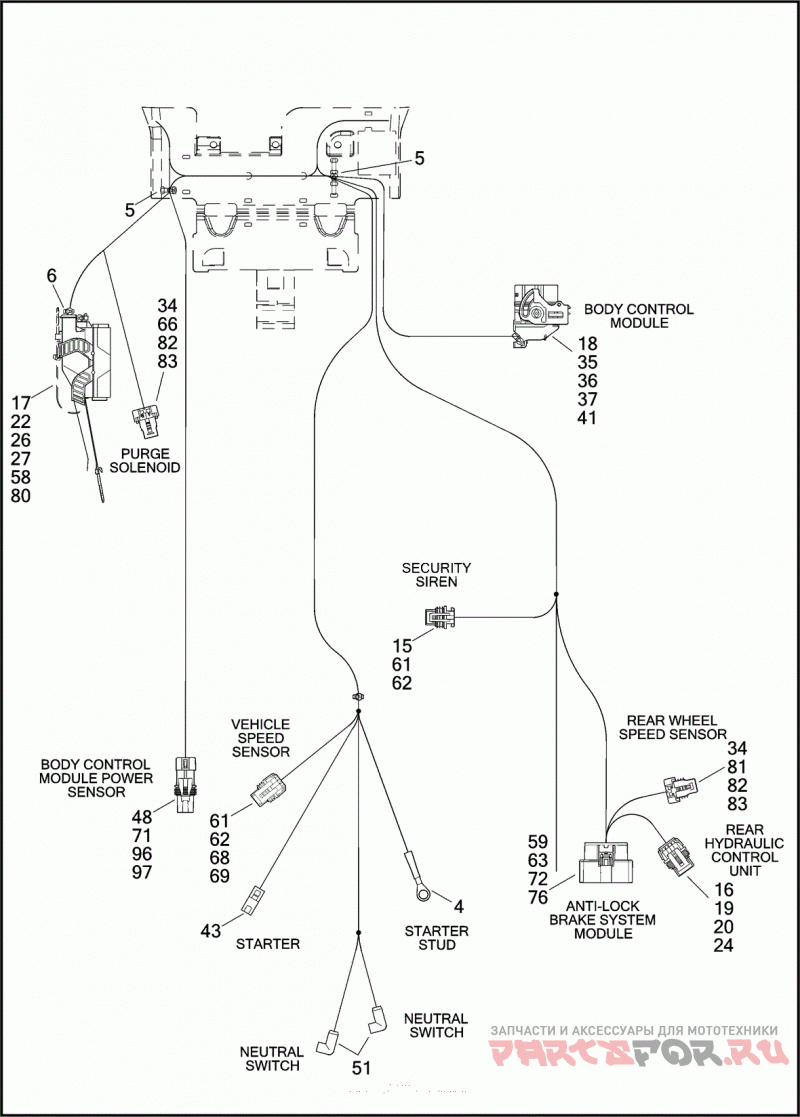

WIRING HARNESS, MAIN (4 OF 5)

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2013)

Harley Davidson
#oem кодцена
70132-13
MAIN WIRING HARNESS (CONTINUED)
67
72519-09BK
Пылезащитный колпачок
68
72543-07BK
HOUSING 3-WAY SOCKET (BLACK)
69
72544-07
SECONDARY LOCK 3-WAY FEMALE
70
72554-09GY
HOUSING 6-WAY PIN (GRAY)
71
72575-11
SECONDARY LOCK
72
72581-11
TERMINAL SOCKET, #18-20 AWG (GOLD)
73
72582-11
FUSE BLOCK MAXI/MINI
74
72586-11
COVER FUSE BLOCK, MAXI/MINI
75
72587-11
SECONDARY LOCK FUSE BLOCK, MAXI/MINI
76
72593-11
TERMINAL SOCKET, #14-16 AWG (GOLD)
77
72595-11
SEAL FUSE BLOCK, MAXI/MINI
78
72596-11
BRACKET ELECTRICAL CONNECTOR, RH
79
72597-11
BRACKET ELECTRICAL CONNECTOR, LH
80
72605-08
TERMINAL SOCKET, #20 AWG (GOLD)
81
72606-08
HOUSING 2-WAY SOCKET
82
72609-08
SECONDARY LOCK 2-WAY SOCKET (BLACK)
83
72610-08
SEAL CABLE, #18-20 AWG (WHITE)
84
72663-11
TERMINAL SOCKET, #18-20 AWG (SILVER)
85
72677-11
RESISTOR ASSEMBLY FUEL SENDER
86
72720-07
HOUSING 2-WAY SOCKET
87
72721-07
TERMINAL SOCKET, #18-20 AWG
88
72905-11
HOUSING 2-WAY PIN
