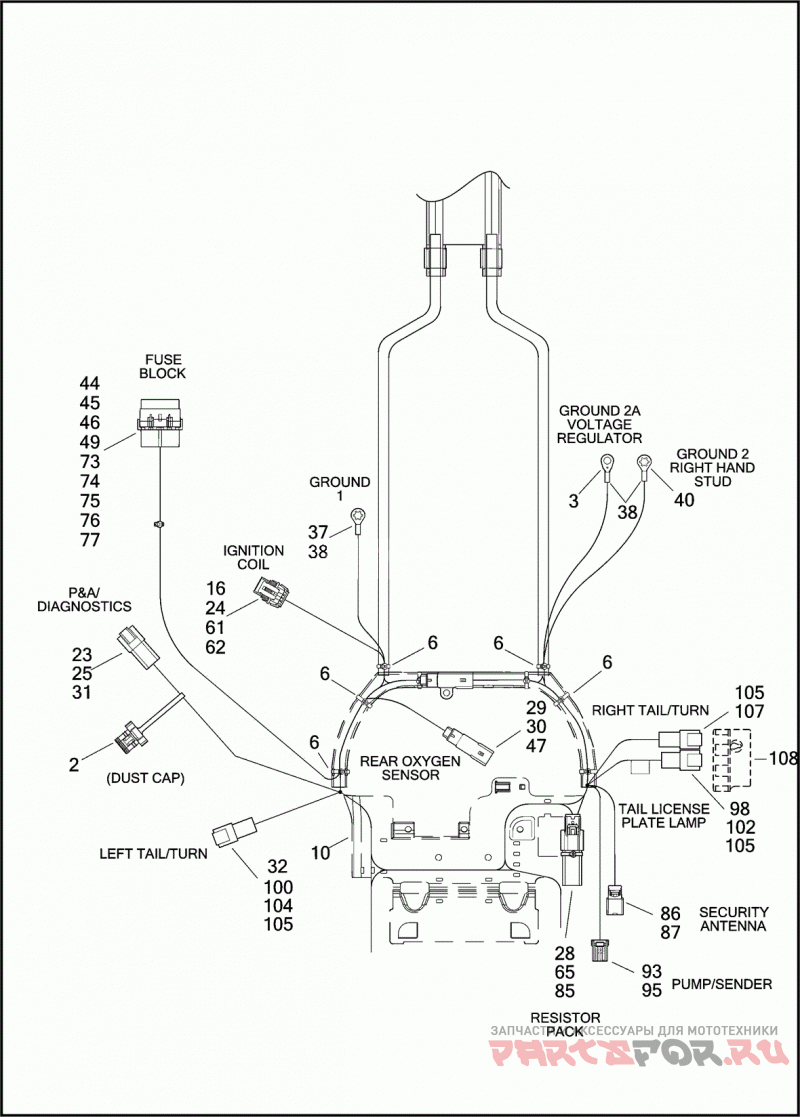

WIRING HARNESS, MAIN (3 OF 5)

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2013)

Harley Davidson
#oem кодцена
70132-13
MAIN WIRING HARNESS (CONTINUED)
45
72314-01
MAXI-FUSE 40 AMP
46
72330-95
FUSE 15 AMP (BLUE)
47
72343-10
TERMINAL, PIN 16-20 AWG (GOLD)
48
72350-11
HOUSING ONE-WAY
49
72356-95
TERMINAL SOCKET, #18-20 AWG
50
72402-07
HOUSING 2-WAY SOCKET (BLACK)
51
72405-98BK
CONNECTOR PUSH ON 90 DEGREE
52
72406-07A
HOUSING 4-WAY SOCKET
53
72407-07
TERMINAL SOCKET, #16-20 AWG
54
72408-07
WIRE SEAL #16-20 AWG (BLUE)
55
72413-07
TERMINAL SOCKET, #18-20 AWG
56
72414-07BK
HOUSING 6-WAY SOCKET (BLACK)
57
72415-07GY
HOUSING 4-WAY PIN (GRAY)
58
72440-08
SEAL PIN .6MM PLUG
59
72473-07
SEAL PIN
60
72483-08BK
HOUSING 6-WAY, SOCKET (BLACK)
61
72484-08
TERMINAL SOCKET, #20 AWG
62
72486-08
SEAL WIRE #20 AWG (GREEN)
63
72500-07ABK
HOUSING 20-WAY SOCKET (BLACK)
64
72512-07BK
HOUSING 3-WAY SOCKET
65
72514-07GY
HOUSING 3-WAY SOCKET (GRAY)
66
72518-01
HOUSING SOCKET, 2-WAY (RED)
