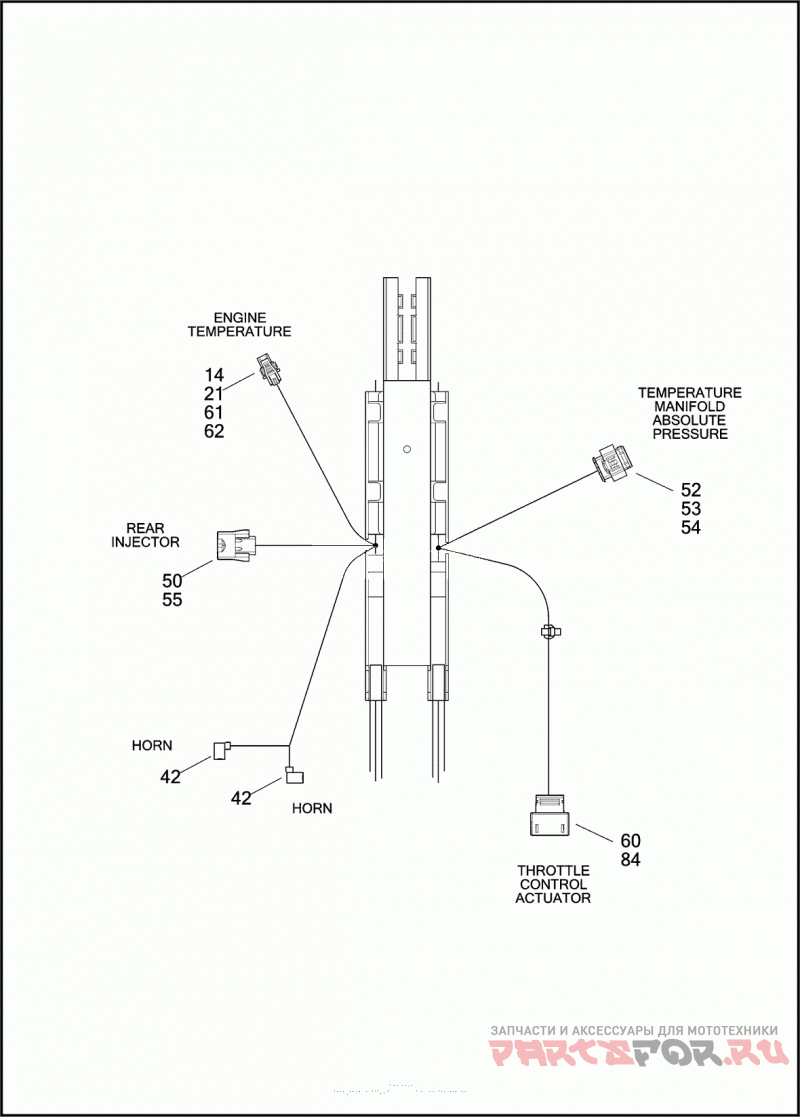

WIRING HARNESS, MAIN (2 OF 5)

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2013)

Harley Davidson
#oem кодцена
70132-13
Деталь MAIN WIRING HARNESS (CONTINUED)
23
72106-94BK
Деталь RECEPTACLE, 6-way pin (black)
24
72135-06
Деталь SECONDARY LOCK 4-WAY SOCKET (GRAY)
25
72146-94
Деталь PIN LOCK SEC 6
26
72155-08
Деталь SECONDARY LOCK 73-WAY SOCKET HOUSING
27
72157-08
Деталь PLR, GT280 73-WAY SOCKET HOUSING
28
72168-07
Деталь TERMINAL SOCKET, #18-20 AWG
29
72169-07
Деталь TERMINAL PIN, #16-20 AWG
30
72175-07BK
Деталь HOUSING 4-WAY PIN (BLACK)
31
72190-94
Деталь TERMINAL PIN, #16-18 AWG
32
72199-94
Деталь CONNECTOR ANCHOR
33
72209-11
Крышка
34
72213-94
Деталь TERMINAL SOCKET, #16-20 AWG
35
72222-11
Деталь TERMINAL SOCKET, #18-20 AWG
36
72226-11
Деталь TERMINAL SOCKET, #14-16 AWG
36
72227-11
Деталь TERMINAL SOCKET, #18-20 AWG
37
72242-94
Деталь TERMINAL 1/4 RING
38
72249-94
Деталь SHRINK TUBE (BLACK)
39
72251-07
Деталь SECONDARY LOCK 2-WAY SOCKET (YELLOW)
40
72254-94
Деталь TERMINAL RING .25 STUD, #14-16 AWG
41
72256-11
Деталь SEAL PIN .6MM PLUG
42
72283-09
Деталь TERMINAL FEMALE, #14-16 AWG
43
72295-94
Деталь HOUSING STARTER CONNECTION
44
72308-97
Деталь TERMINAL FEMALE, #12-14 AWG
