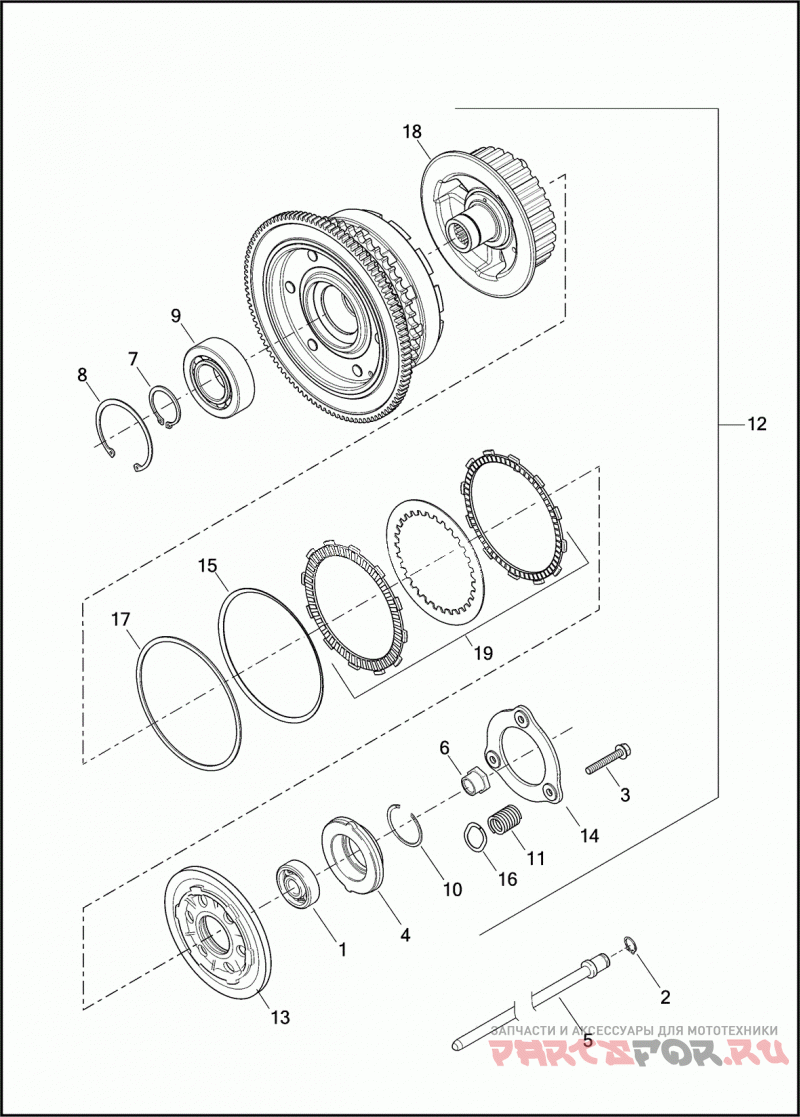

CLUTCH - TWIN CAM 110 ™

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2013)

CLUTCH - TWIN CAM 110 ™

#

oem код

название

цена

1

Подшипник

Подшипник

2

RETAINING RING EXTERNAL

RETAINING RING EXTERNAL

3

BOLT M6 X 1.0 X 40 HEX FLANGE HD.

BOLT M6 X 1.0 X 40 HEX FLANGE HD.

4

PLATE RELEASE W/ 8885

PLATE RELEASE W/ 8885

5

PUSH ROD HYDRAULIC-CLUTCH

PUSH ROD HYDRAULIC-CLUTCH

6

NUT MAINSHAFT

NUT MAINSHAFT

7

RING RETAINING, EXTERNAL

RING RETAINING, EXTERNAL

8

RING RETAINING, INTERNAL

RING RETAINING, INTERNAL

9

BEARING BALL, DOUBLE-ROW

BEARING BALL, DOUBLE-ROW

10

RING RETAINING, INTERNAL

RING RETAINING, INTERNAL

11

COIL SPRING

COIL SPRING

12

CLUTCH ASSEMBLY COMPLETE (INCLUDES ALL PARTS EXCEPT 11143 & PUSH ROD)

CLUTCH ASSEMBLY COMPLETE (INCLUDES ALL PARTS EXCEPT 11143 & PUSH ROD)

13

PRESSURE PLATE CLUTCH

PRESSURE PLATE CLUTCH

14

STOPPER PLATE

STOPPER PLATE

15

SPRING DAMPER

SPRING DAMPER

16

Седло

Седло

17

SEAT DAMPER-SPRING

SEAT DAMPER-SPRING

18

HUB ASSEMBLY CLUTCH, W/ THRUST WASHER & SPRING WASHER

HUB ASSEMBLY CLUTCH, W/ THRUST WASHER & SPRING WASHER

19

CLUTCH DISKS KIT CLUTCH, W/ THRUST WASHER & SPRING WASHER

CLUTCH DISKS KIT CLUTCH, W/ THRUST WASHER & SPRING WASHER
