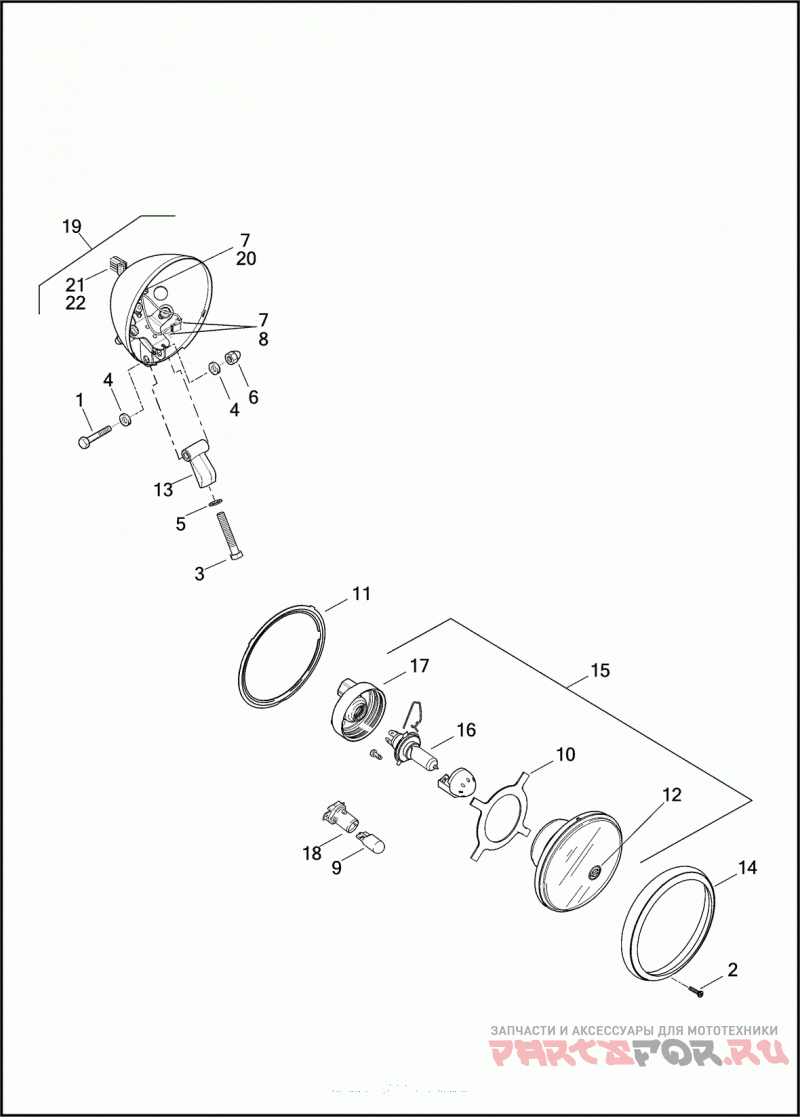

Фара

Harley Davidson FXSBSE 1TD9 CVO SOFTAIL BREAKOUT (2013)

Harley Davidson
#oem кодцена
1
3509
BOLT 3/8-16 X 2-3/4 HEX HD. (GRADE 8)
2
3615
SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
3
4722
BOLT 3/8-16 X 2-1/4 HEX HD. (GRADE 5)
4
6474
WASHER 3/8 X 5/16 X 3/16 HARDENED
5
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
6
7862
ACORN NUT 3/8-16 (CHROME)
7
9847
WIRE TERMINAL FEMALE SPADE, RIGHT
7
9848
WIRE TERMINAL FEMALE SPADE, LEFT
8
9898
TERMINAL FEMALE FLAG (HDI, AUSTRALIA, ENGLAND, JAPAN)
9
53436-97
BULB POSITION LAMP (HDI, AUSTRALIA, ENGLAND, JAPAN)
10
67601-94A
SPACER GASKET
11
67603-94A
RING RETAINER
12
67667-05
MEDALLION HEADLAMP
13
67746-11
MOUNT HEADLAMP
14
67894-93A
BEZEL ASSEMBLY
15
68297-05A
LAMP ASSEMBLY WITH 15, 21, 22
15
68335-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
15
68341-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
16
68329-03
BULB HB2/H4
17
68380-05
чехол
18
68653-05
SOCKET POSITION LAMP (HDI, AUSTRALIA, ENGLAND, JAPAN)
19
69715-05A
SHELL ASSEMBLY 5-3/4 IN. (HDI, AUSTRALIA, ENGLAND, JAPAN)
20
72056-92
INSULATOR SPADE TERMINAL, 3-WAY
21
73154-96BK
HOUSING 4-PLACE SOCKET
22
73191-96
TERMINAL SOCKET, #16-20 AWG
