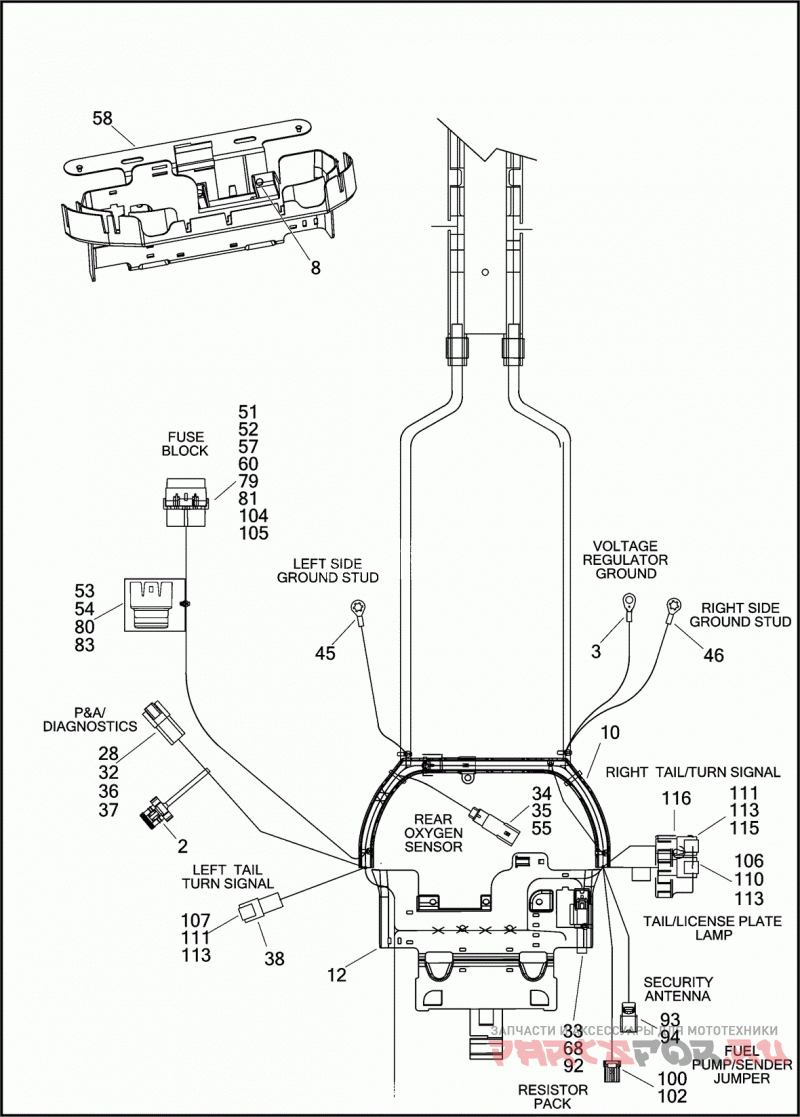

WIRING HARNESS, MAIN, ABS - FXSB (3 OF 5)

Harley Davidson FXSB 1BF5 SOFTAIL BREAKOUT (2013)

Harley Davidson
#oem кодцена
69200514
WIRING HARNESS, MAIN (CONTINUED)
42
72227-11
TERMINAL SOCKET, #18-20 AWG
43
72230-98
HOUSING 3-WAY SOCKET
44
72231-98
SECONDARY LOCK 3-WAY
45
72242-94
TERMINAL 1/4 RING
46
72254-94
TERMINAL RING .25 STUD, #14-16 AWG
47
72256-11
SEAL PIN .6MM, PLUG
48
72283-09
TERMINAL FEMALE, #14-16 AWG
49
72291-94
TERMINAL #14-16 AWG
50
72295-94
HOUSING STARTER CONNECTION
51
72298-95
WIRE SEAL #14-18 AWG (GREEN)
52
72308-97
TERMINAL FEMALE, #12-14 AWG
53
72314-01
MAXI-FUSE 40 AMP
54
72330-95
FUSE 15 AMP (BLUE)
55
72343-10
TERMINAL PIN, #16-20 AWG (GOLD)
56
72350-11
HOUSING ONE-WAY
57
72356-95
TERMINAL SOCKET, #18-20 AWG
58
72369-08A
BRACKET FUSE BLOCK HOLDER,(BLACK)
59
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
60
72412-97
SEAL CABLE #12-14 AWG
61
72415-07GY
HOUSING 4-WAY PIN (GRAY)
62
72473-07
SEAL PIN
63
72484-08
TERMINAL SOCKET, #20 AWG
64
72486-08
WIRE SEAL #20 AWG (GREEN)
65
72499-07
WIRE SEAL #20-22 AWG (GREEN)
