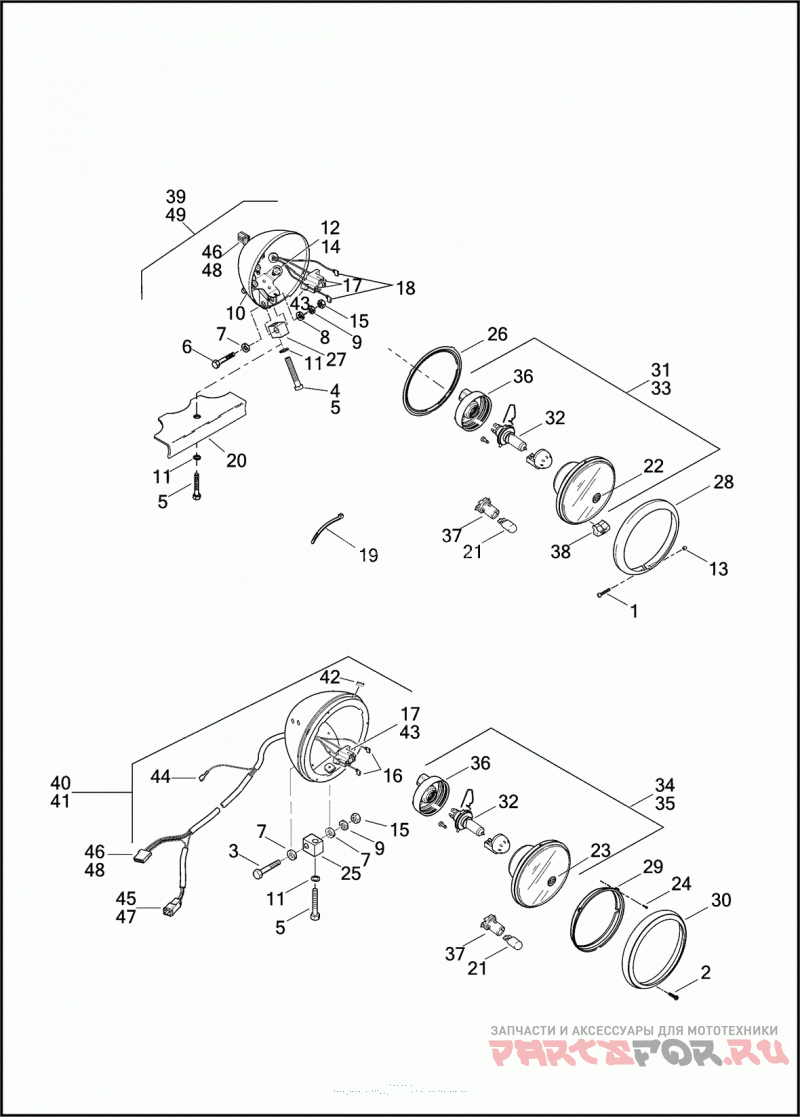

Фара

Harley Davidson FXSB 1BF5 SOFTAIL BREAKOUT (2013)

Harley Davidson
#oem кодцена
1
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
8
6701
WASHER 3/8 X 13/16 X 1/16
9
7038
LOCKWASHER 3/8
10
7073
LOCKWASHER 1/4 EXTERNAL TOOTH
11
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
12
7230
LOCKWASHER 1/4 EXTERNAL TOOTH
13
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
14
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
15
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
17
9847
WIRE TERMINAL FEMALE SPADE, RIGHT HAND
17
9848
WIRE TERMINAL FEMALE SPADE, LEFT HAND
18
9898
TERMINAL FEMALE FLAG (ASIA-PACIFIC, AUSTRALIA, ENGLAND, HDI, INDIA, JAPAN)
19
10065
CABLE STRAP
21
53436-97
BULB POSITION LAMP (ASIA-PACIFIC, AUSTRALIA, ENGLAND, HDI, JAPAN)
22
67667-05
MEDALLION LENS
26
67769-93
ADAPTER RING
27
67772-97
MOUNTING BLOCK
28
67790-93A
BEZEL RING (CHROME)
32
68329-03
BULB HB2/H4
33
68335-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
36
68380-05
BOOT (HDI, AUSTRALIA, ENGLAND, INDIA, JAPAN)
37
68653-05
SOCKET POSITION LAMP (ASIA-PACIFIC, AUSTRALIA, ENGLAND, HDI, INDIA, JAPAN)
38
69609-00
BUMPER RUBBER
39
67700094
SHELL ASSEMBLY (AUSTRALIA, ENGLAND, JAPAN)
43
72056-92
INSULATOR SPADE TERMINAL, 3-WAY
46
73154-96BK
HOUSING 4-PLACE SOCKET
48
73191-96
TERMINAL SOCKET, #16-20 AWG
