WIRING HARNESS, MAIN, NON-ABS - FXS (2 OF 5) для мотоциклов Harley Davidson FXS 1JP5 BLACKLINE (2013) (2013)

Москва и регионы России

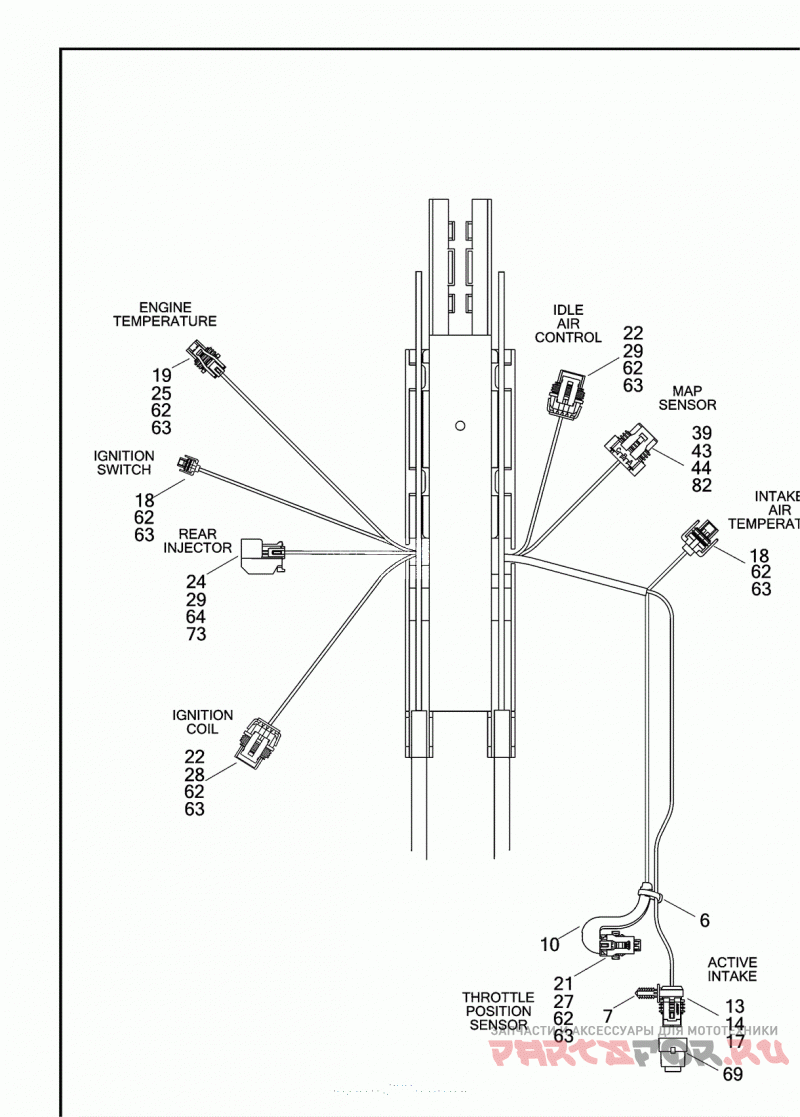

WIRING HARNESS, MAIN, NON-ABS - FXS (2 OF 5)

Harley Davidson FXS 1JP5 BLACKLINE (2013)

WIRING HARNESS, MAIN, NON-ABS - FXS (2 OF 5)

#

oem код

название

цена

WIRING HARNESS, MAIN (CONTINUED)

WIRING HARNESS, MAIN (CONTINUED)

21

HOUSING 3-WAY SOCKET

HOUSING 3-WAY SOCKET

22

HOUSING 4-WAY SOCKET (BLACK)

HOUSING 4-WAY SOCKET (BLACK)

23

HOUSING 48-WAY SOCKET

HOUSING 48-WAY SOCKET

24

HOUSING 2-WAY SOCKET

HOUSING 2-WAY SOCKET

25

SECONDARY LOCK 2-WAY SOCKET (GRAY)

SECONDARY LOCK 2-WAY SOCKET (GRAY)

26

HOUSING 6-PIN (BLACK) (REPLACES GRAY CONNECTOR)

HOUSING 6-PIN (BLACK) (REPLACES GRAY CONNECTOR)

27

SECONDARY LOCK 3-WAY (GRAY)

SECONDARY LOCK 3-WAY (GRAY)

28

SECONDARY LOCK 4-WAY SOCKET (GRAY)

SECONDARY LOCK 4-WAY SOCKET (GRAY)

29

SECONDARY LOCK 2-WAY SOCKET (BLUE)

SECONDARY LOCK 2-WAY SOCKET (BLUE)

30

PIN LOCK SEC 6

PIN LOCK SEC 6

31

TERMINAL SOCKET, #18-20 AWG

TERMINAL SOCKET, #18-20 AWG

32

TERMINAL PIN, #16-20 AWG

TERMINAL PIN, #16-20 AWG

33

HOUSING 4-WAY, PIN (BLACK)

HOUSING 4-WAY, PIN (BLACK)

34

HOUSING 6-WAY PIN (BLACK)

HOUSING 6-WAY PIN (BLACK)

35

TERMINAL PIN, #16-18 AWG

TERMINAL PIN, #16-18 AWG

36

TERMINAL PIN, 20 AWG

TERMINAL PIN, 20 AWG

37

CONNECTOR ANCHOR

CONNECTOR ANCHOR

38

COVER WIRE

COVER WIRE

39

TERMINAL SOCKET, #16-20 AWG

TERMINAL SOCKET, #16-20 AWG
