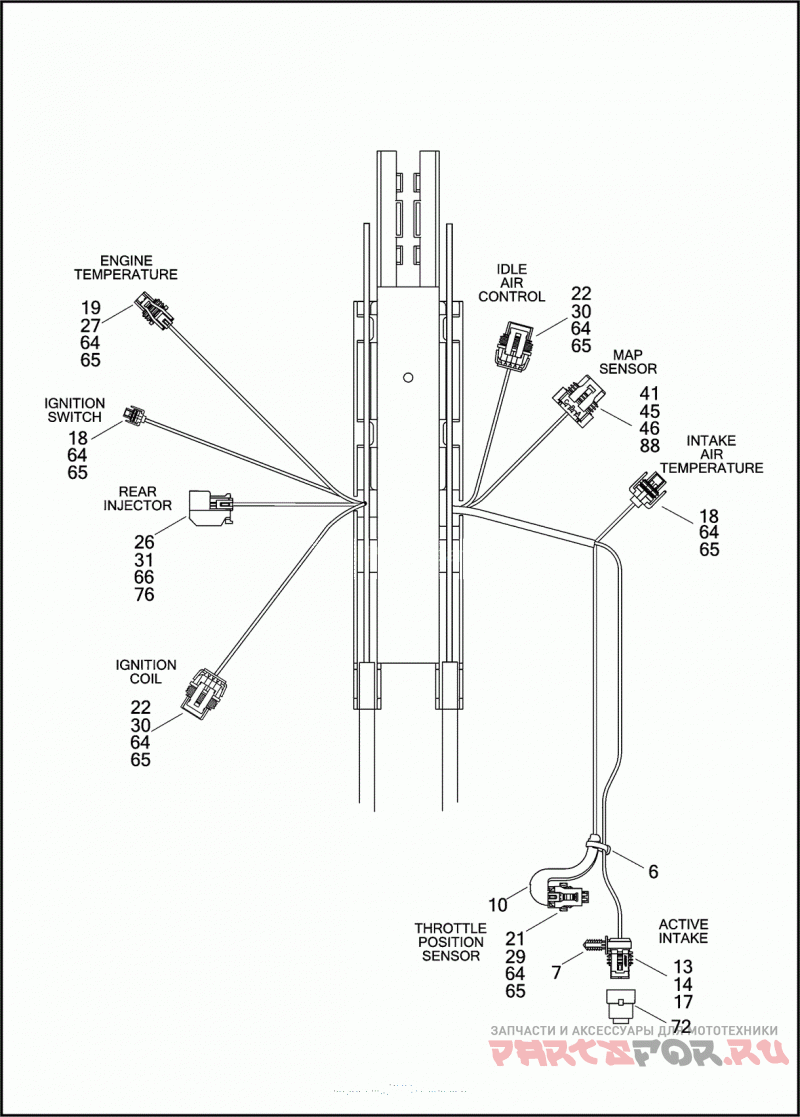

WIRING HARNESS, MAIN, ABS - FXS (2 OF 5)

Harley Davidson FXS 1JP5 BLACKLINE (2013)

Harley Davidson
#oem кодцена
71065-12
WIRING HARNESS, MAIN (CONTINUED)
21
72065-06A
HOUSING 3-WAY SOCKET
22
72066-06A
HOUSING 4-WAY SOCKET (BLACK)
23
72081-11
HOUSING 48-WAY SOCKET
24
72094-06
TERMINAL SOCKET, FEMALE #18 AWG
25
72096-06
WIRE SEAL #18 AWG (YELLOW)
26
72098-06
HOUSING 2-WAY SOCKET
27
72111-06
SECONDARY LOCK 2-WAY SOCKET (GRAY)
28
72106-94BK
HOUSING 6-PIN (BLACK) (REPLACES GRAY CONNECTOR)
29
72127-06
SECONDARY LOCK 3-WAY (GRAY)
30
72135-06
SECONDARY LOCK 4-WAY SOCKET (GRAY)
31
72145-06
SECONDARY LOCK 2-WAY SOCKET (BLUE)
32
72146-94
PIN LOCK SEC 6
33
72168-07
TERMINAL SOCKET, #18-20 AWG
34
72169-07
TERMINAL PIN, #16-20 AWG
35
72175-07BK
HOUSING 4-WAY, PIN (BLACK)
36
72188-07BK
HOUSING 6-WAY PIN (BLACK)
37
72190-94
TERMINAL PIN, #16-18 AWG
38
72194-94
TERMINAL PIN, 20 AWG
39
72199-94
CONNECTOR ANCHOR
40
72209-11
COVER WIRE
41
72213-94
TERMINAL SOCKET, #16-20 AWG
