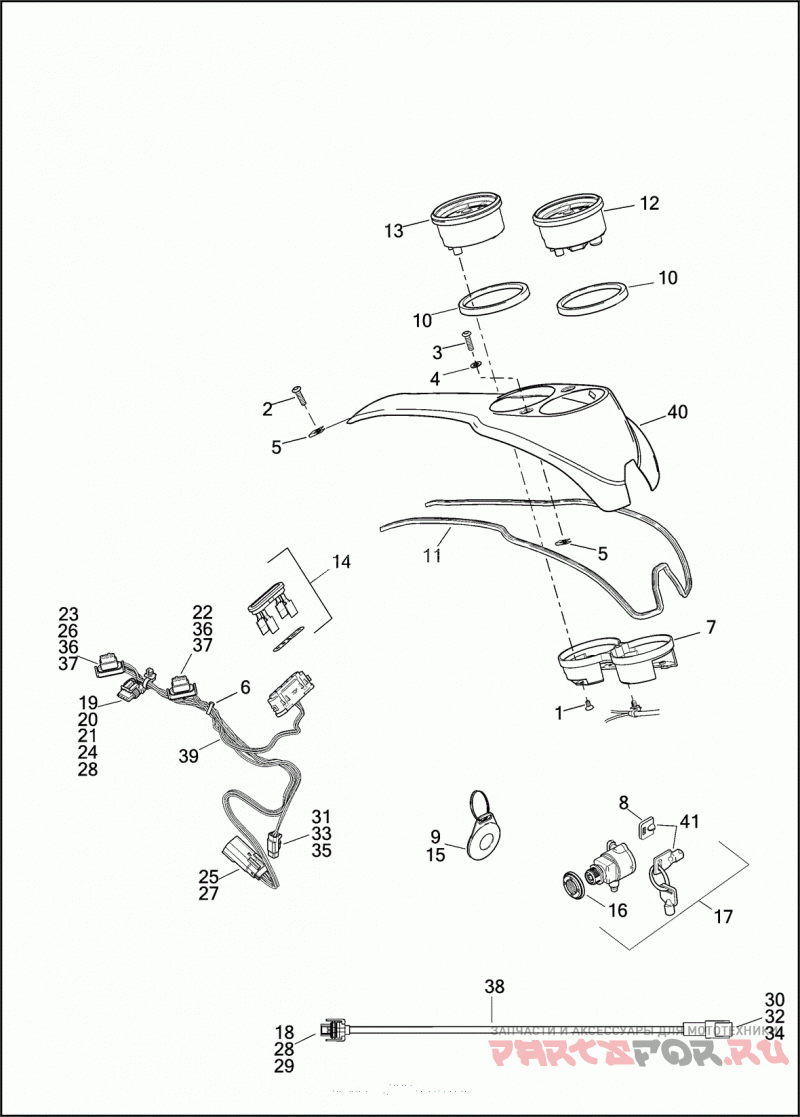

INSTRUMENTS - FXDL

Harley Davidson FXDL 1GN4 DYNA LOW RIDER (2013)

Harley Davidson
#oem кодцена
1
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
2
3540
SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
3
4007
SCREW 5/16-18 X 1-1/4 SOCKET BUTTON HD.
4
6798
WASHER 5/16 X 1/2 X 1/32
5
8173
SPEED NUT
6
10065
CABLE STRAP
7
48073-04
CLAMP GAUGE
8
61081-92
COVER KEY
9
66373-06
BATTERY 3V CR2032
10
67121-95A
Прокладка
11
67185-04
TRIM CONSOLE
12
67479-12
SPEEDOMETER KPH
13
67481-12
TACHOMETER
14
68382-07B
BEZEL INDICATOR LIGHT
15
69995-11
REMOTE CONTROL FOB W/ 66373-06 (JAPAN)
16
71555-06
NUT FACE
17
71559-12
IGNITION SWITCH/FORK LOCK W/ 71555-06, 90300043 KEYS & KEY COVER (FOR KEY CODES 5000 & UP)
18
72062-06
HOUSING 2-WAY SOCKET
19
72066-06A
HOUSING 4-WAY SOCKET (BLACK)
20
72094-06
TERMINAL #18 AWG SOCKET
21
72096-06
WIRE SEAL #18-20 AWG (YELLOW)
22
72130-04
HOUSING 12-WAY SOCKET (BLACK)
23
72131-04
HOUSING 12-WAY SOCKET (GRAY)
24
72135-06
SECONDARY LOCK 4-WAY SOCKET (GRAY)
25
72169-07
TERMINAL PIN, #16-20 AWG
26
72189-04
SEAL PIN
27
72478-07BK
HOUSING 7-WAY PIN (BLACK)
28
72484-08
TERMINAL SOCKET, #20 AWG
29
72486-08
WIRE SEAL #20 AWG (GREEN)
30
74102-05GY
HOUSING 2-WAY PIN (GRAY)
31
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
32
74142-98
SECONDARY LOCK 2-WAY PIN
33
74152-98
SECONDARY LOCK 2-WAY SOCKET
34
74190-98
TERMINAL PIN, #16-20 AWG
35
74191-98
TERMINAL SOCKET
36
74196-04
TERMINAL SOCKET, #20 AWG
37
74197-04
SECONDARY LOCK 12-WAY SOCKET
38
69200030
HARNESS JUMPER, IGNITION
39
69200040
HARNESS ASSEMBLY
40
70900047
CONSOLE (CHROME)
